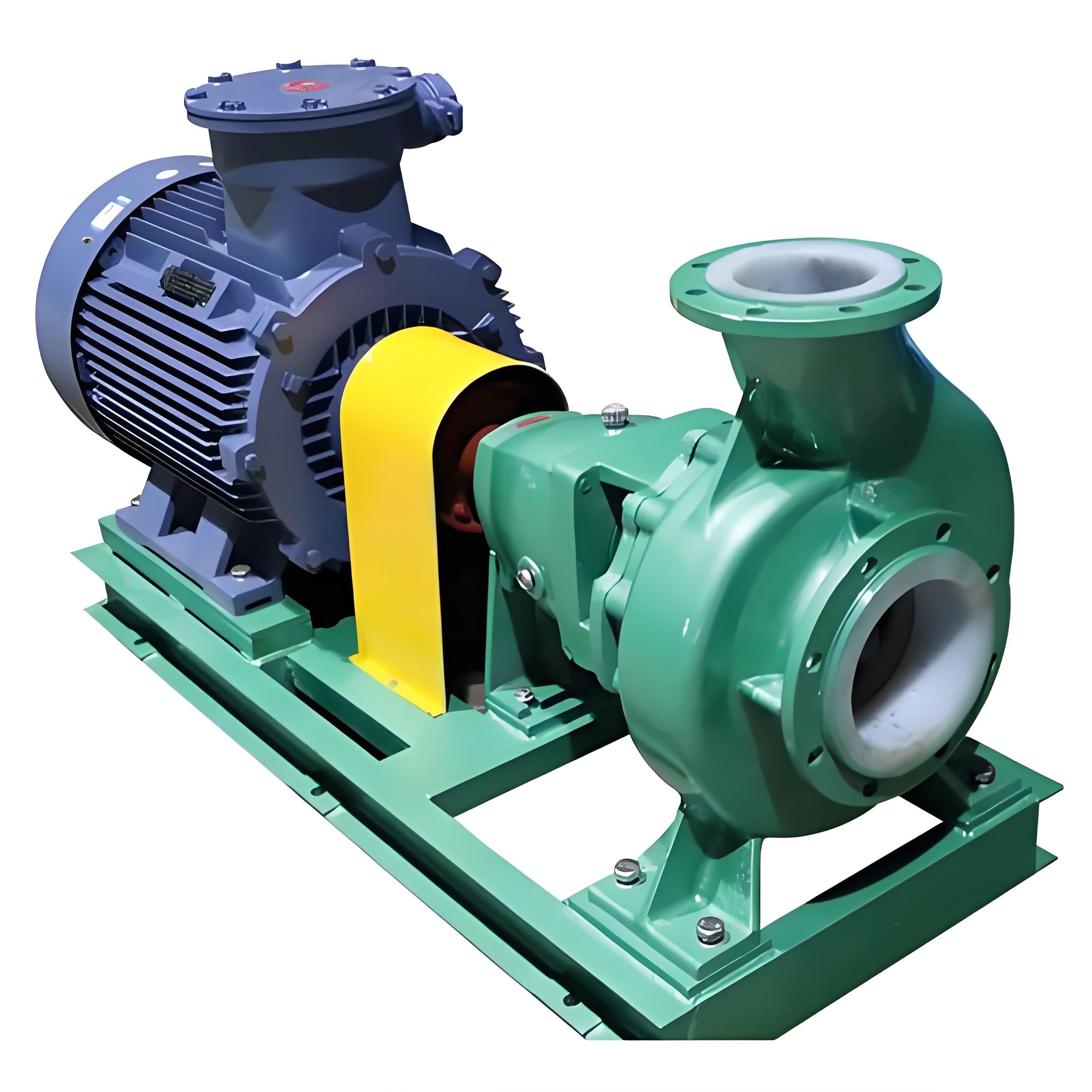

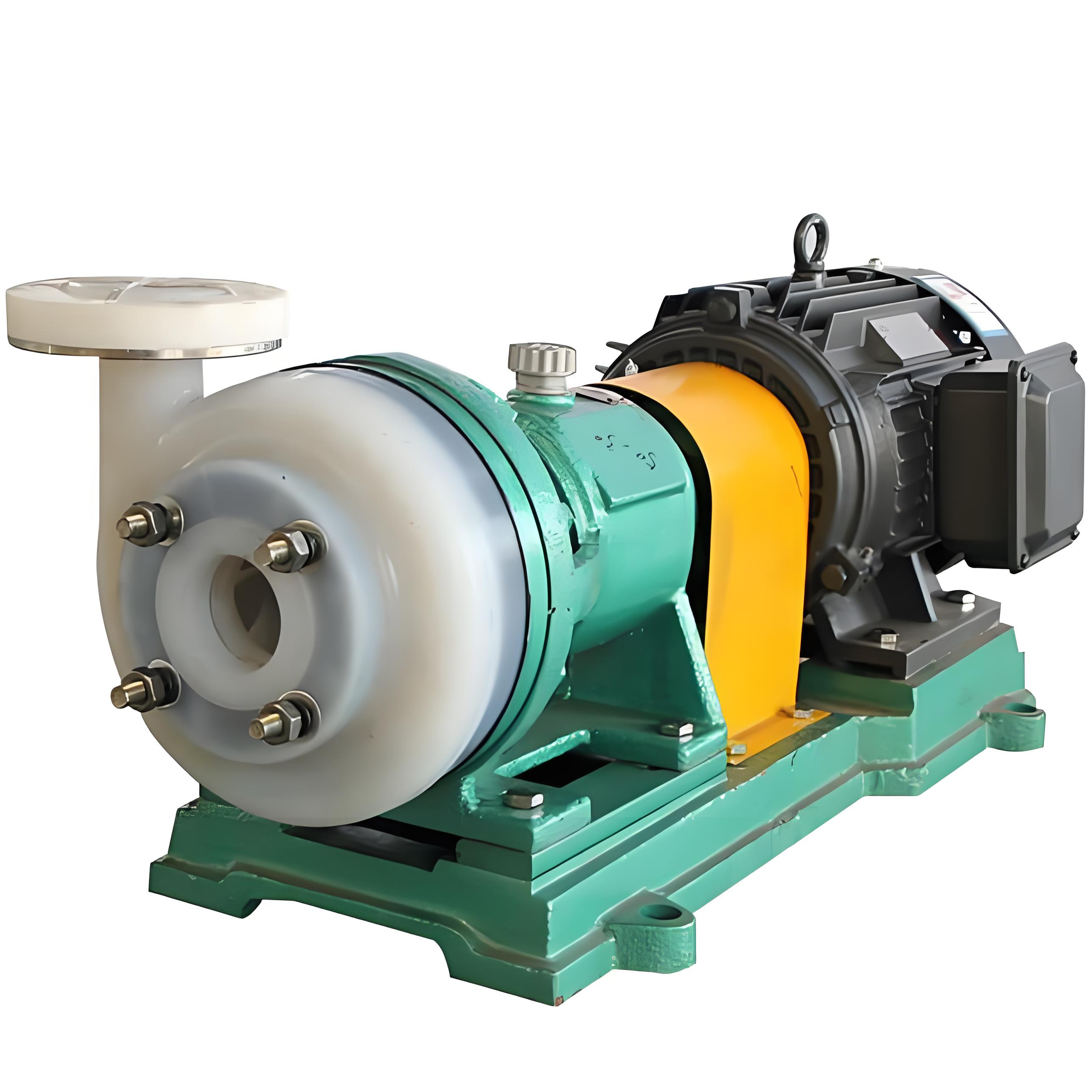

UHB Series Chemical Processing Pumps
Corrosion & Abrasion Resistance Solutions
The UHB Series Chemical Processing Pumps are cantilever-type, single-stage, single-suction centrifugal pumps engineered for handling corrosive and abrasive media containing fine particles. Available in two variants—UHB-ZK (standard) and UHB-ZKG (high-temperature)—these pumps are ideal for demanding industrial applications across diverse sectors.
Features and Benefits of UHB Pumps
Exceptional Wear Resistance
UHB-ZK: Flow components are lined with Ultra-High Molecular Weight Polyethylene (UHMW-PE), offering unmatched wear resistance—4x higher than nylon (PA66) or PTFE, and 7–10x superior to stainless steel.
UHB-ZKG: Utilizes modified UHMW-PE for extreme conditions, tolerating temperatures up to 180°C and abrasive slurries with ≤40% solids.
Superior Corrosion Resistance
Resists a wide range of corrosive media, including acids (up to 80% sulfuric acid, 50% nitric acid), alkalis, salts, and organic solvents. Maintains stability even after prolonged exposure (tested in 80+ solvents at 20–100°C).
Robust Impact Resistance
UHMW-PE boasts the highest impact strength among engineering plastics, 5x greater than ABS, and retains performance at -196°C.
Anti-Clogging Design
Semi-open impeller (no front shroud) and optimized flow path ensure smooth passage of particles, minimizing blockages.
Low Noise & Self-Lubricating
UHMW-PE’s vibration-damping properties reduce operational noise. A low friction coefficient (0.07–0.11) ensures self-lubrication, outperforming lubricated metals.
Non-Toxic & Hygienic
Chemically inert material suitable for food, pharmaceutical, and water treatment industries.
Advanced Sealing Technology
K-Type Dynamic Seal: Combines an auxiliary impeller (generating negative pressure to prevent leakage) with a fluororubber shutdown seal.
* Includes optional cooling water jacket (≤0.05MPa pressure) to extend seal life in high-temperature or abrasive environments.
Alternative Seals: K1, T/T1 (packing), and C3 custom seals available.
Technical Specifications
Parameter | UHB-ZK | UHB-ZKG |
Temperature Range | -20°C to 100°C (120°C*) | -20°C to 180°C |
Flow Capacity | 5–2600 m³/h | Customizable |
Head | ≤80 m | ≤80 m |
Inlet Diameter | 32–350 mm | 32–350 mm |
*With modified UHMW-PE |
Applications
Chemical & Fertilizer Industries
Sulfuric, phosphoric, and nitric acids; corrosive slurries; mother liquors.
Metallurgy & Mining
Acidic/alkaline leaching, electrolytic solutions, ore slurries (e.g., copper, zinc, rare earths).
Environmental & Water Treatment
Municipal/industrial wastewater (textile, electroplating, pharmaceutical), seawater, and high-purity water.
Steel & TiO₂ Production
Acid pickling lines, titanium dioxide processing (acid digestion, washing).
Energy & Coal Processing
Coal slurry transport, flue gas desulfurization (FGD) systems.
Food & Pharmaceuticals
Non-toxic transfer of viscous or particle-laden fluids.
Customization & Versatility
Optional fluoroplastic lining for enhanced chemical resistance.
Tailored designs for specific flow, head, or material requirements.
Open/closed impeller configurations to match media viscosity.
Why Choose UHB Series Pumps?
Combining cutting-edge material science with robust engineering, the UHB Series ensures longevity and efficiency in the harshest environments. Whether for high-temperature slurries, acidic waste, or abrasive mining fluids, these pumps deliver unmatched reliability, reducing downtime and maintenance costs.
Ideal for industries where corrosion, abrasion, and temperature extremes converge.
