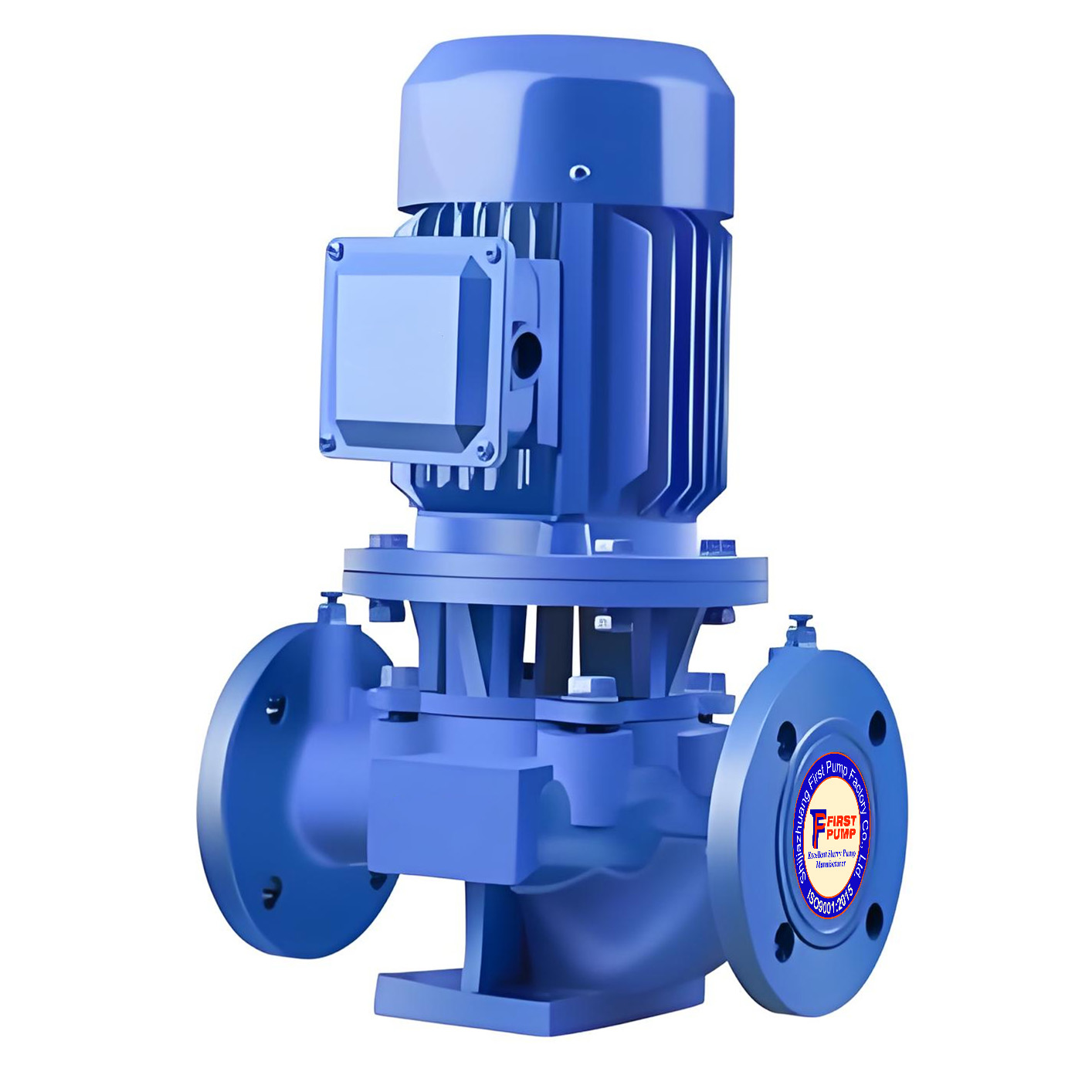

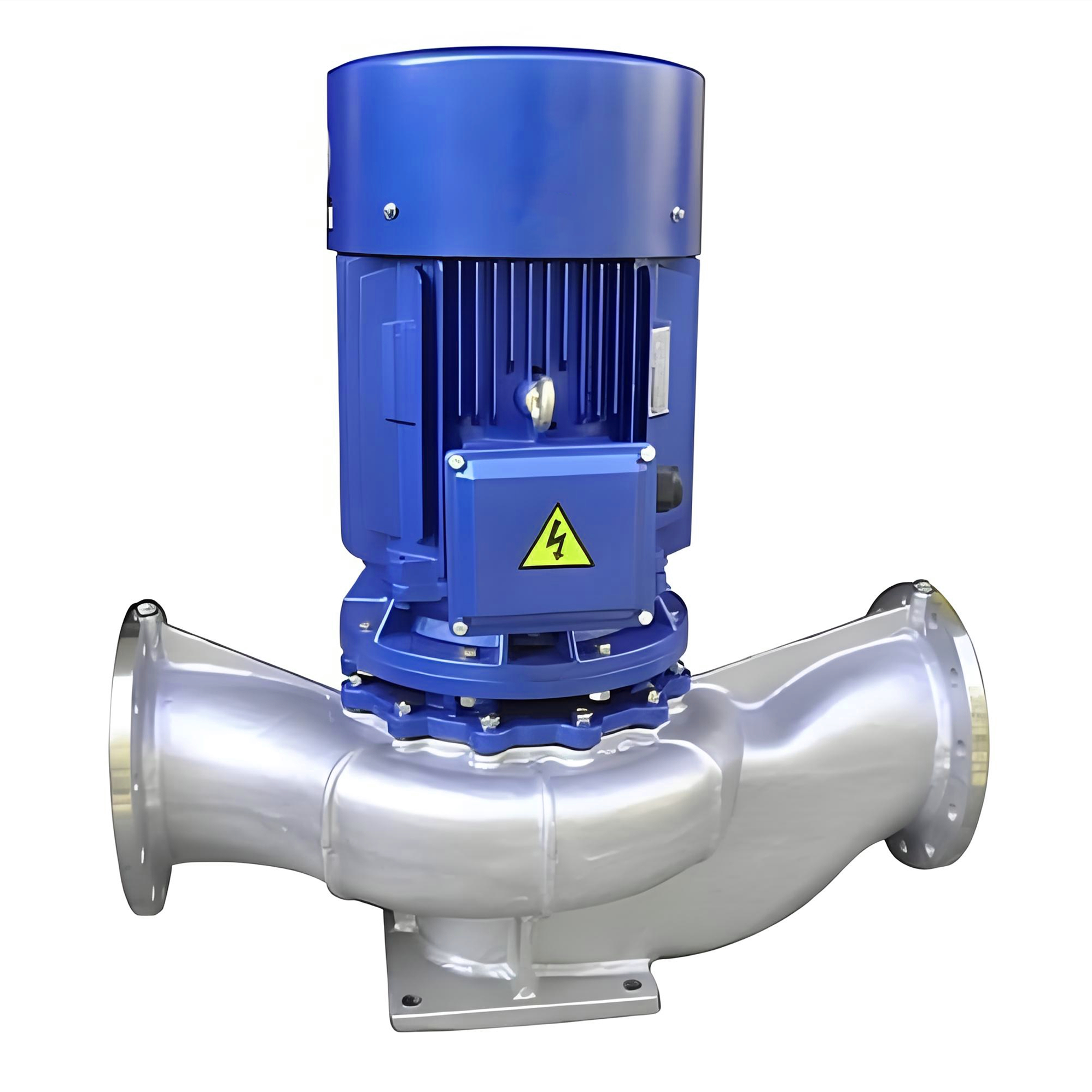

IHG Series Vertical Chemical Processing Pumps
Precision Engineered for Demanding Industrial Applications
Innovative Fluid Handling Solutions
The IHG Series Vertical Chemical Pumps represent the pinnacle of centrifugal pump technology, combining international engineering standards with cutting-edge hydraulic design. These vertical inline pumps deliver exceptional performance for clear water and chemically similar liquids across industrial, municipal, and specialty applications.
Key Performance Parameters:
Flow Rate: 1–1,500 m³/h
Head: 7–150 m
Motor Power: 0.18–2,500 kW
Temperature Range: -20°C to +120°C
Engineered for Excellence
Advanced Hydraulic Design
Derived from IS-type centrifugal pump technology
Optimized impeller geometry for maximum efficiency (up to 15% energy savings vs conventional pumps)
Low NPSH requirements for reliable operation
Rugged Industrial Construction
Vertical inline configuration with flanged connections (DN15–DN32)
Dual structural options:
* Direct-coupled design for standard applications
* Quick-disassembly version (for motors >30kW) enables rotor removal without disturbing piping
Pressure ratings:
* Max working pressure: 1.6 MPa
* Hydrostatic test pressure: 2.5 MPa
Premium Sealing Solutions
Multiple mechanical seal options:
* Standard: Titanium alloy seals
* High-temp: Tungsten carbide faces
* Corrosion-resistant: Silicon carbide options
Double seal arrangements available for hazardous fluids
Unmatched Operational Flexibility
Installation options: Vertical or horizontal mounting
System configurations: Series or parallel operation
Environmental adaptability: Outdoor-rated with optional weather hood
Industrial-Grade Applications
Industry | Typical Uses |
Chemical Processing | Acid circulation, solvent transfer, process water systems |
Water Infrastructure | Municipal supply, high-rise building pressure boosting, fire protection systems |
Power Generation | Cooling water circulation, boiler feed, condensate handling |
HVAC | Chilled water systems, heat recovery loops, district heating |
Pulp & Paper | Stock preparation, white water systems, effluent treatment |
Performance Data
Model | Capacity (m³/h) | head (m) | Speed (r/min) | Motor (KW) | Inlet&Outlet Diameter (mm) |
15 - 80 | 1.1 1.5 2.0 | 8.5 8 7 | 2800 | 0.18 | 15 |
20 - 110 | 1.8 2.5 3.3 | 16 15 13.5 | 2800 | 0.37 | 20 |
20 - 160 | 1.8 2.5 3.3 | 33 32 30 | 2900 | 0.75 | 20 |
25 - 110 | 2.8 4 5.2 | 16 15 13.5 | 2900 | 0.55 | 25 |
25 - 125 | 2.8 4 5.2 | 20.6 20 18 | 2900 | 0.75 | 25 |
25 - 125A | 2.5 3.6 4.6 | 17 16 14.4 | 2900 | 0.55 | 25 |
25 - 160 | 2.8 4 5.2 | 33 32 30 | 2900 | 1.5 | 25 |
25 - 160A | 2.6 3.7 4.9 | 29 28 26 | 2900 | 1.1 | 25 |
32 - 100 | 4.5 | 12.5 | 2900 | 0.55 | 32 |
32 - 100（I） | 4.4 6.3 8.3 | 13.2 12.5 11.3 | 2900 | 0.75 | 32 |
32 - 125 | 3.5 5 6.5 | 22 20 18 | 2900 | 0.75 | 32 |
32 - 125A | 3.1 4.5 5.8 | 17.6 16 14.4 | 2900 | 0.55 | 32 |
32 - 160 | 6.5 | 32 | 2900 | 1.5 | 32 |
32 - 160A | 4 | 25 | 2900 | 1.1 | 32 |
32 - 160(I) | 4.4 6.3 8.3 | 33.2 32 30.2 | 2900 | 2.2 | 32 |
Why Professionals Choose IHG Pumps
Maintenance Optimized
Tool-free rotor extraction reduces downtime by up to 70%
Standardized components simplify spare parts management
Future-Proof Design
Modular construction allows performance upgrades
Compatible with IoT monitoring systems for predictive maintenance
Comprehensive Support
Pre-sales: Application engineering support
Installation: Certified field service technicians
Aftermarket: Global spare parts network
Certified Reliability
Manufactured to ISO 2858 standards
Optional ATEX-compliant versions for explosive environments
Technical Support & Customization Services
Our engineering team can provide:
Material upgrades for corrosive media (stainless steel, duplex alloys)
Special coatings for abrasive applications
Custom performance curves for unique system requirements
Contact our fluid solutions specialists today to configure your ideal pumping system!
