IH Chemical Processing Pumps

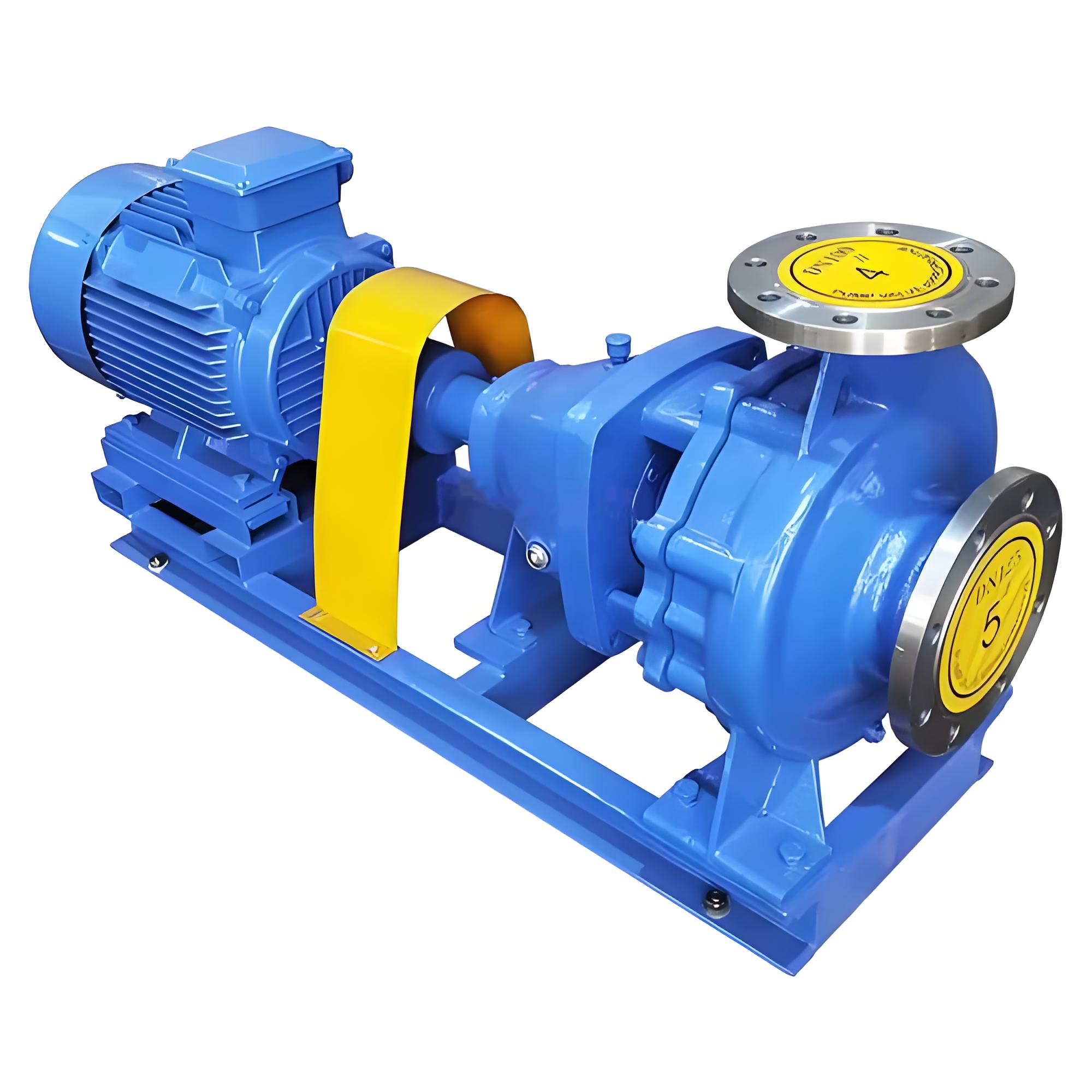

The IH Chemical Processing Pump is a horizontal, single-stage, single-suction centrifugal pump engineered for handling water, corrosive chemicals, acids, alkalis, solvents, and slurries without solid particles. Compliant with international standards ISO2858 and ISO5199/DIS, it delivers advanced performance, energy efficiency, and reliability across industrial, agricultural, municipal, and environmental applications.
Key Features
Robust Construction: Crafted from corrosion-resistant materials (316L, 904, Mo2Ti, etc.), ensuring durability in aggressive environments.
Ease of Maintenance: Rear-door design enables servicing without disassembling inlet/outlet pipelines.
Optimized Performance: 5% higher efficiency and 2m lower NPSH than legacy pumps, reducing energy costs.
Compact & Lightweight: Direct motor coupling (IH-A variant) minimizes footprint and infrastructure costs.
Anti-Vibration Design: Steel wire screw sleeve secures the impeller nut against loosening during operation.
Reliable Lubrication: Closed grease-lubricated bearings or automatic oil compensation systems ensure long-term operation.
Versatile Impeller Options: Close, semi-open, or open impellers for diverse fluid handling needs.
Applications
Ideal for transferring corrosive and non-corrosive fluids in:
Chemicals & Petrochemicals: Acids, solvents, hydrocarbons.
Energy & Utilities: Refineries, power stations, seawater desalination.
Industrial Processes: Pharmaceuticals, paper/pulp, sugar production.
Environmental: Wastewater treatment, pollution control.
Marine & Offshore: Oil production, shipboard systems.
Technical Specifications
Capacity: Up to 600 m³/h
Head: Up to 120 meters
Sizes: DN25 to DN200 mm
Speed: 1450/2900 RPM (50 Hz)
Temperature Range: -20°C to +160°C
Pressure: ≤1.6 MPa (system pressure)
Materials: Stainless steel, 304/L, 316/L, and specialty alloys.
Design Advantages
Axial Suction & Radial Discharge: Ensures stable flow and easy integration into piping systems.
Flange Compliance: Meets GB9113.3-88/HG20595-97 standards (1.6 MPa).
Rotation Direction: Clockwise (viewed from drive end).
Temperature & Pressure Resilience: Handles extreme conditions with precision.
Standards & Endorsements
Certified to ISO2858 (design) and ISO5199/DIS (manufacturing).
Officially endorsed by China’s State Administration of Machinery as the preferred replacement for outdated and imported pumps.
Why Choose IH Pumps?
With unmatched corrosion resistance, modular design, and compliance with global standards, IH pumps offer a cost-effective, low-maintenance solution for critical fluid transfer challenges. Trusted in refineries, desalination plants, and beyond, they combine cutting-edge engineering with operational versatility.
Custom configurations available for specialized requirements.
