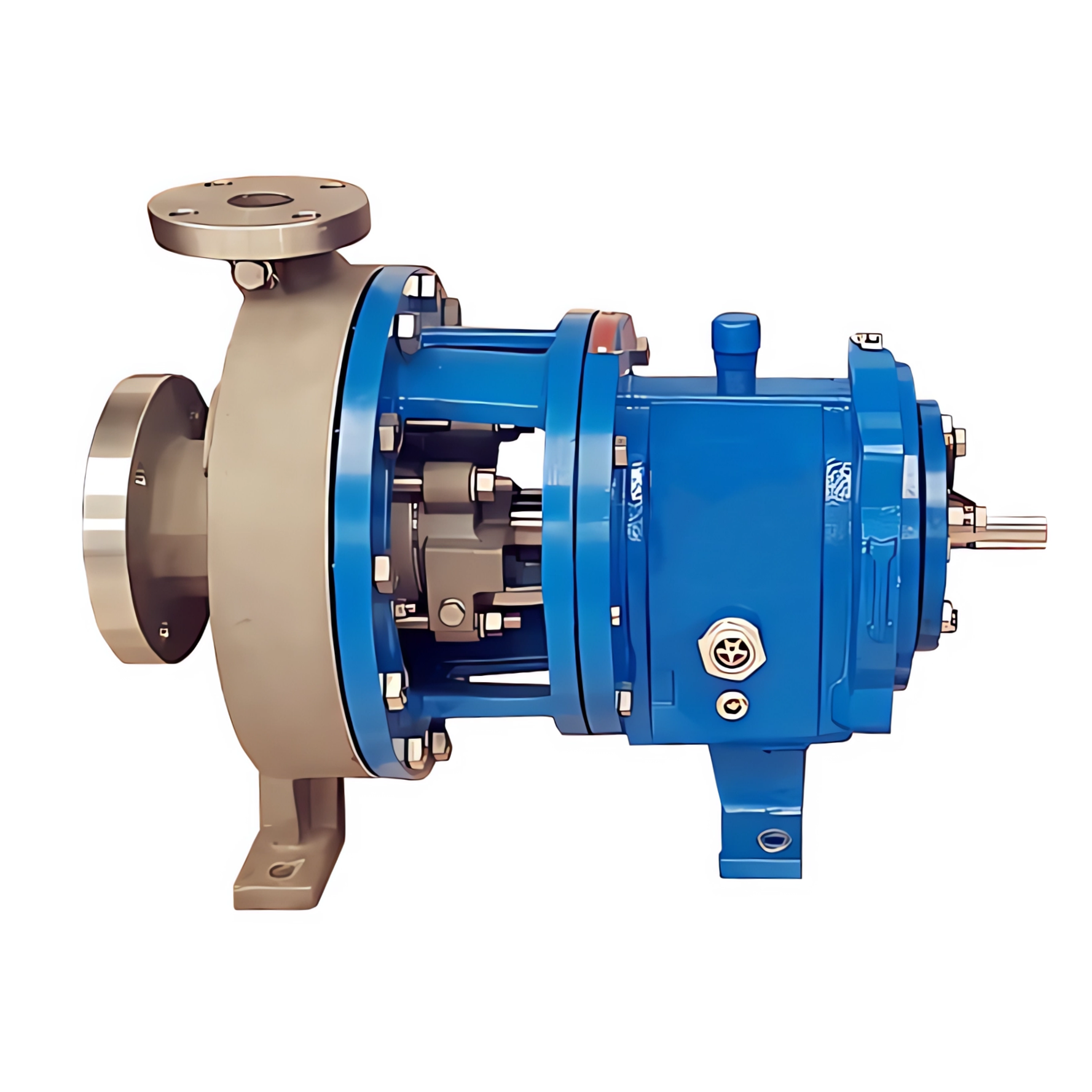

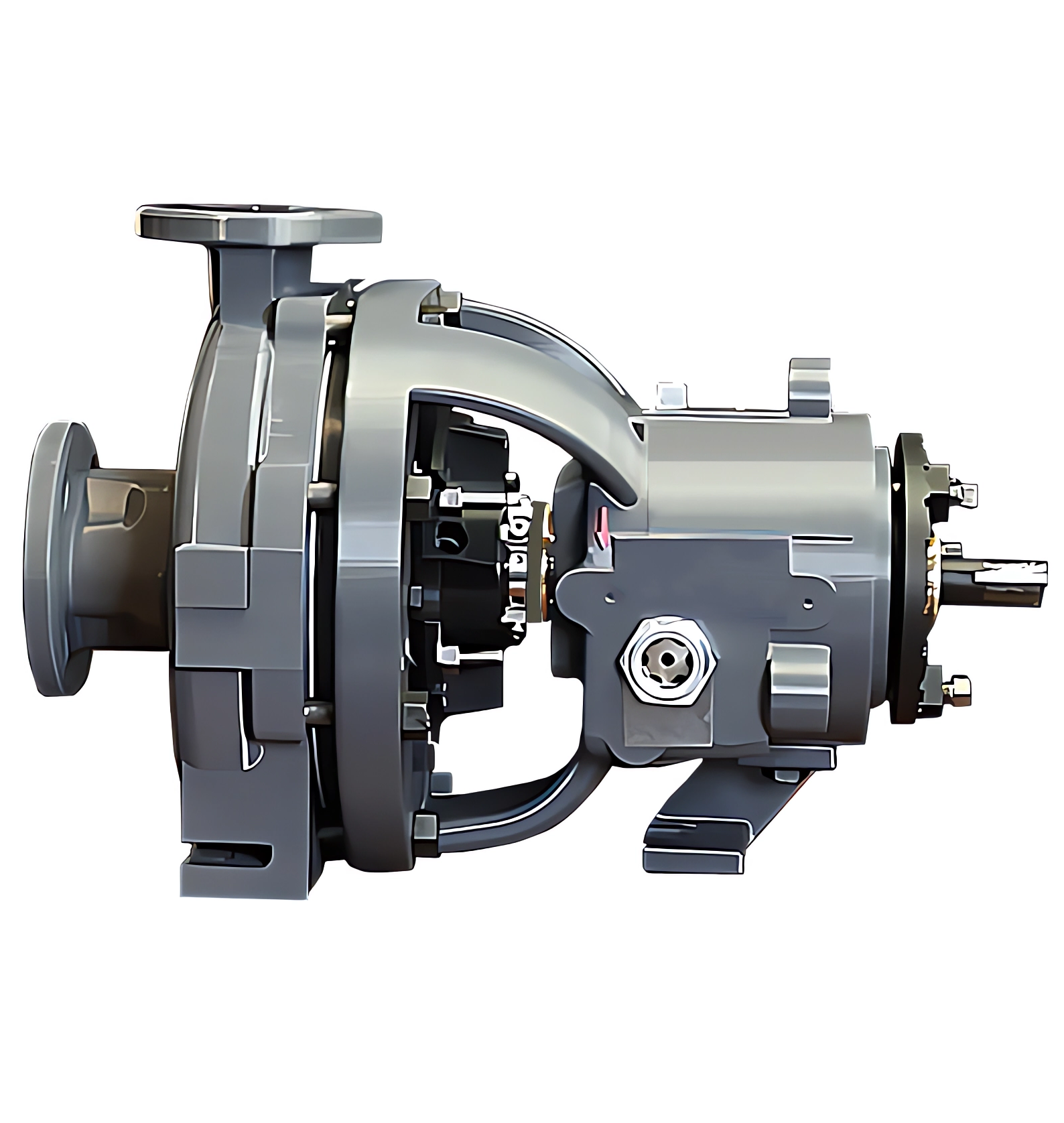

Durco Mark 3 Sealed ASME (ANSI) Chemical Process Pump Engineered for Unmatched Reliability and Versatility
For decades, the Durco Mark 3 ASME (ANSI) Chemical Process Pump has defined excellence in fluid handling across the most demanding industries. Compliant with ASME B73.1 standards, its innovative design combines proven reliability with cutting-edge technology, offering flexible configurations to meet diverse application needs—from corrosive chemical transfer to high-flow industrial processes.
Key Specifications
Flow Rates(Capacity): Up to 20,000 GPM (4,540 m³/h)
Head/ Pressure: Head to 700 ft (215 m) / Pressure to 400 PSI (27 bar)
Temperature Range: -100°F to 700°F (-75°C to 370°C)
Sizes: 1" to 8" (25 mm to 200 mm)
Features & Benefits
Reverse Vane Impeller: Reduces maintenance costs and ensures renewable high-efficiency performance over the pump’s lifespan.
SealSentry™ Seal Chamber: Creates an ideal seal environment to extend mechanical seal life and boost reliability.
External Impeller Adjustment: Enables fast, precise impeller settings without disassembly.
Robust Shaft & Bearing Design: Minimizes shaft deflection, prolonging seal and bearing life.
Back Pull-Out Design: Simplifies in-shop maintenance and impeller adjustments.
Dynamic Sealing Options: Includes mechanical seals, magnetic drives, and the Sealmatic repeller system for leak-free operation.
Configurations for Every Challenge
Mark 3 Lo-Flo: Optimized for low-flow, high-head applications with a radial vane impeller to reduce vibration and radial loads.
Unitized Self-Priming: Engineered for suction lift applications, eliminating the need for external priming.
Recessed Impeller (Vortex): Handles solids and viscous fluids with vortex action while maintaining ANSI compatibility.
In-Line Vertical Design: Space-saving vertical orientation compliant with ANSI B73.2M, ideal for tight installations.
Group 4 High-Capacity: Exceeds traditional ANSI limits with flows up to 20,000 GPM for extreme-duty applications.
Sealmatic Pump: Replaces mechanical seals with a dynamic repeller, ideal for abrasive or toxic fluids.
Material Versatility
Wet-end components are available in corrosion-resistant alloys, including:
Stainless Steels; CF8M, CD4MCu, CN7M
High-Performance Alloys: Hastelloy®, HC, titanium, and other exotics. Custom materials available upon request.
Applications Across Industries
Power Generation: Steam plants, CSP, biomass, geothermal, and MSW energy systems.
Chemicals & Petrochemicals: Organic/inorganic chemicals, biofuels, pharmaceuticals.
Water Management: Desalination, wastewater, and municipal systems.
Oil & Gas: Upstream E&P, midstream transport, and downstream refining.
General Industry: Pulp & paper, food & beverage, ethanol production, mining.
Why Choose the Durco Mark 3?
Interchangeability: Fully compliant with ASME B73.1 standards, ensuring seamless retrofits and replacements.
Durability: Hydrostatically tested casings, premium materials (stainless steel, Hastelloy®, titanium), and dynamic balancing for vibration-free operation.
Innovation: The only ANSI pump with in-shop reverse vane adjustment and predictive maintenance readiness.
Disclaimer:
Goulds®, Warman®, and other referenced trademarks are property of their respective owners. Durco® Mark 3 pumps are designed for technical compatibility; competitor model references are for informational purposes only.
Trust the Durco® Mark 3 to deliver unmatched adaptability, longevity, and efficiency—whether you’re sealing tough chemicals, handling solids, or pushing the limits of flow and pressure. Contact us to explore tailored solutions for your toughest pumping challenges.
