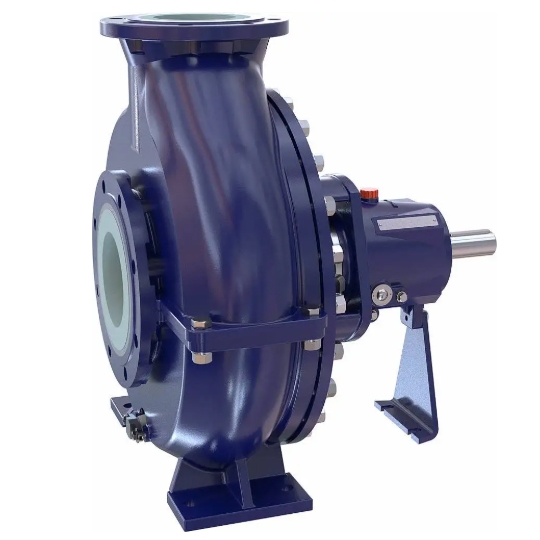

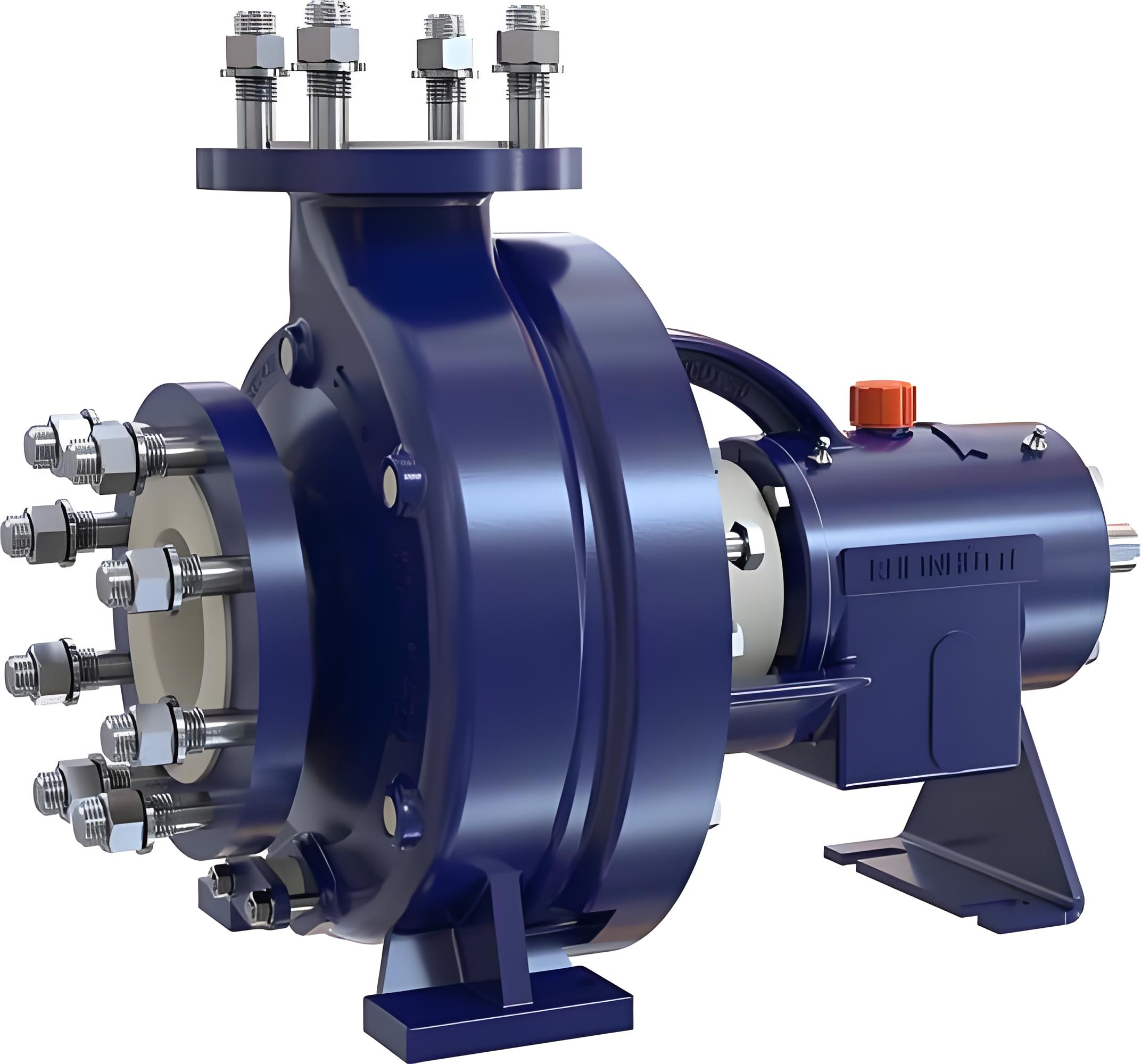

Goulds 3196 ANSI Chemical Process Pump
Industry-Standard Performance Since 1961
For over six decades, the Goulds 3196 ANSI Chemical Process Pump has set the benchmark for reliability and efficiency in demanding industrial applications. Introduced in 1961, it remains the preferred choice across chemical, petrochemical, pulp & paper, food & beverage, primary metals, and general industries. With thousands of installations worldwide, its proven design delivers unmatched performance in the harshest environments.
Key Specifications
Flow Rate (Capacity): Up to 7,000 GPM (1,590 m³/h)
Head / Pressure: Head to 730 ft (223 m) / Pressure to 375 PSIG (26 bar)
Temperature Range: -20°F to 700°F (-29°C to 371°C)
Engineered for Excellence
Advanced Hydraulic Design
Fully open impeller design ensures optimal solids handling and clog-resistant operation.
29 sizes with full 50/60 Hz coverage, supported by precision pump selection software.
Seal Chamber Innovations
Patented Taperbore™ PLUS Seal Chamber: Enhances seal life with superior flushing and heat dissipation.
BigBore™ Seal Chambers: Simplify maintenance and accommodate a wide range of sealing solutions.
Durable i-FRAME Power Ends
Premium Severe-Duty Thrust Bearings: Engineered for extended service life under high loads.
LTi Power End: Ideal for high-load applications with enhanced durability.
Onboard Condition Monitoring (Optional): Enables real-time performance tracking.
Inpro VBXX-D Hybrid Bearing Isolators: Protect against contamination and lubricant loss.
Ease of Maintenance
Back Pull-Out Design: Allows servicing without disconnecting piping.
External Impeller Adjustment: Simplifies performance tuning.
Maximized Interchangeability: Reduces downtime with standardized components.
Optional C-Face Motor Adapter: Streamlines installation and alignment.
Safety & Reliability
Heavy-Duty Casings: Built to withstand extreme pressures and temperatures.
Hydrostatic Testing: All pressure-retaining components rigorously tested.
ANSI B15.1 Coupling Guards & Shaft Guards (Optional): Ensure operator safety.
Ductile Iron Frame Adapter: Enhructural stability.
Material Versatility
Wet-end components are available in corrosion-resistant alloys, including:
Stainless Steels; CF8M, CD4MCu, CN7M
High-Performance Alloys: Hastelloy®, HC, titanium, and other exotics. Custom materials available upon request.
Quality Assurance
Dynamic Impeller Balancing: Ensures smooth, vibration-free operation.
Pressure Testing: Every casing and component validated for integrity.
Interchangeable Design: Compliant with ANSI standards for seamless replacement and compatibility.
Interchangeability Note
The Goulds 3196 is fully interchangeable with ANSI-compliant pumps, including the KIMA G Series, offering flexibility for retrofit or replacement projects.
Disclaimer
Warman®, Durco®, and other referenced trademarks are property of their respective owners. Use of competitor names or models is for technical comparison only.
Trust the Goulds 3196 to deliver unmatched durability, safety, and efficiency—wherever your process demands excellence. Contact us to explore custom configurations tailored to your needs.
