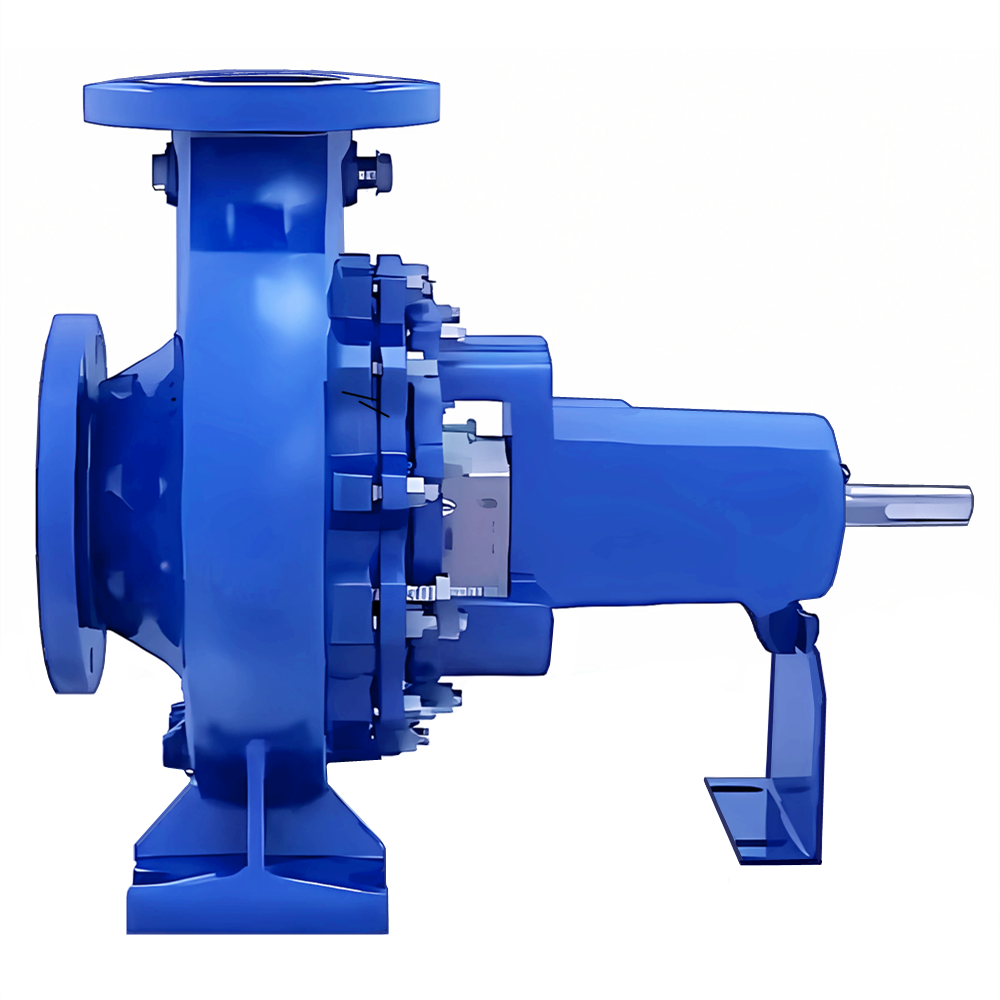

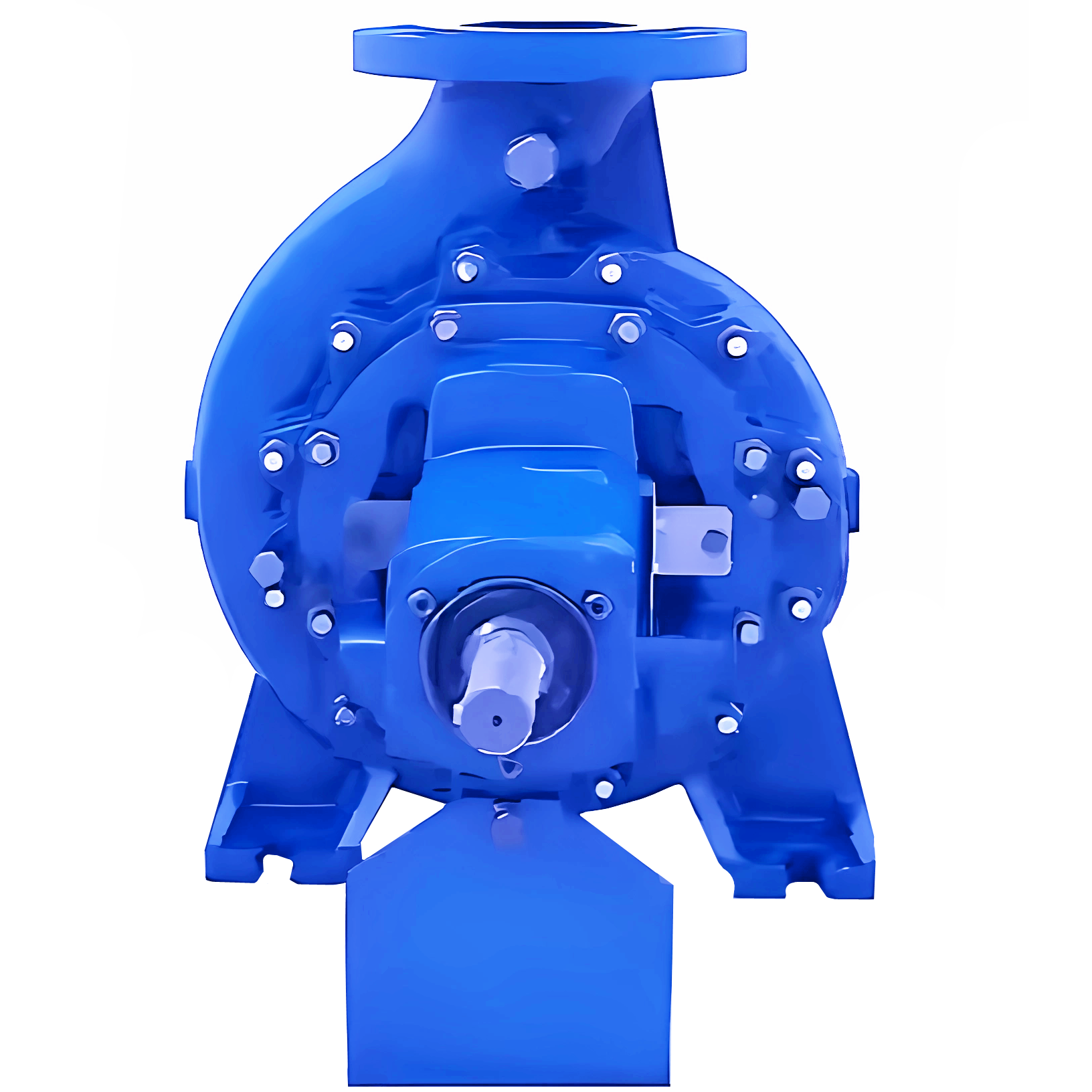

KSB Etanorm Dry-Installed Pumps (Thermal Oil/ Hot Water Circulation Pumps)
KSB Etanorm dry-installed pumps, manufactured by Germany’s century-old KSB Group, are high-performance thermal oil and hot water circulation pumps renowned for reliability and durability. Designed for demanding industrial applications, these pumps ensure stable operation in heat transfer systems across industries such as petroleum, chemicals, electronics, textiles, plastics, and leather processing. The flagship ETANORM SYT/RSY series combines cutting-edge engineering with robust construction to handle media temperatures up to 350°C and working pressures up to 16 bar.
Key Features
Superior Efficiency & Hydraulic Design
Optimized hydraulic system with hydrodynamically refined impeller blades for enhanced efficiency and reduced NPSH requirements.
Adjustable impeller trimming to match specific operating points, minimizing energy costs.
IE4/IE5-class KSB SuPremE motors with PumpDrive variable speed control for energy-saving operation.
Robust Construction & Maintenance-Friendly
Back pull-out design: Enables easy disassembly without removing the pump casing from the pipeline.
Replaceable wear rings and split bearing brackets for simplified maintenance.
Durable graphite/SiC sliding bearings (lubricated by the medium) and reinforced deep-groove ball bearings for extended service life.
Leak-Free & Safe Operation
Standard Burgmann mechanical seals (Germany): Single or double seals (EN 12756 compliant) ensure zero leakage.
Multi-chamber housing seals and optimized thermal barriers minimize wear under fluctuating conditions.
Explosion-proof (ATEX-certified) models available for hazardous chemical environments.
Smooth & Quiet Performance
Advanced VenJet venting profile for optimal air removal and cavitation-free operation.
Low-vibration design with anti-lock carbon-steel lubrication bearings.
Wide Material Compatibility
Casing: Nodular cast iron (EN-GJS-400-18LT).
Impeller: Grey cast iron (EN-GJL-250).
Shaft: Quenched and tempered stainless steel (1.4021).
Bearings: Anti-corrosive SiC/SiC or graphite options.
Applications
Heat transfer systems (DIN 4754, VDI 3033 compliant).
High-temperature hot water circuits (DIN 4752 compliant).
Industrial processes: Reactors, heat exchangers, textile heating systems, and chemical reactors.
Technical Specifications
Flow Rate: Up to 1,900 m³/h
Head: Up to 102 m
Temperature Range: -30°C to +350°C
Speed: 1,450/2,900 rpm (50/60 Hz)
Power Range: 2.2–110 kW
Model Range (ETANORM SYT Series)
SYT 032-160, SYT 040-160, SYT 032-200, SYT 040-200, SYT 050-160, SYT 050-200, SYT 050-250, SYT 065-160, SYT 065-200, SYT 065-250, SYT 080-160, SYT 080-200, SYT 080-250, SYT 100-200, SYT 100-250, SYT 125-200.
Why Choose KSB Etanorm?
100+ years of German engineering excellence.
Unmatched operational reliability in extreme thermal conditions.
Modular design for flexibility across diverse industrial needs.
Global service network for technical support and spare parts.
Available Models: ETANORM SYT/ETNY (Stock Ready).
Origin: Manufactured in Germany (OEM by Shijiazhuang First Pump Factory).
KSB Etanorm pumps set the benchmark for efficiency, safety, and longevity in thermal fluid handling. Ideal for industries prioritizing precision and uptime.
