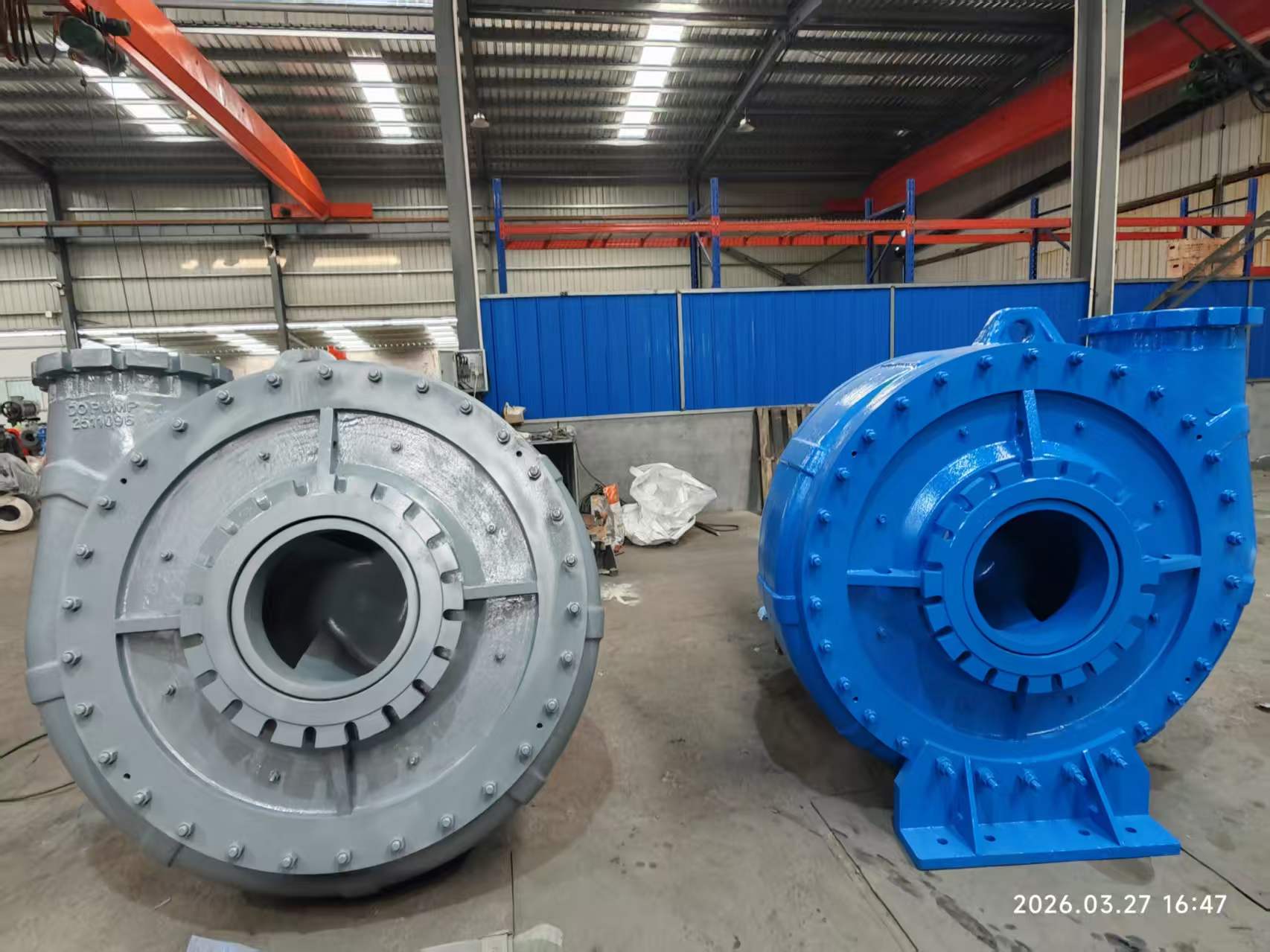

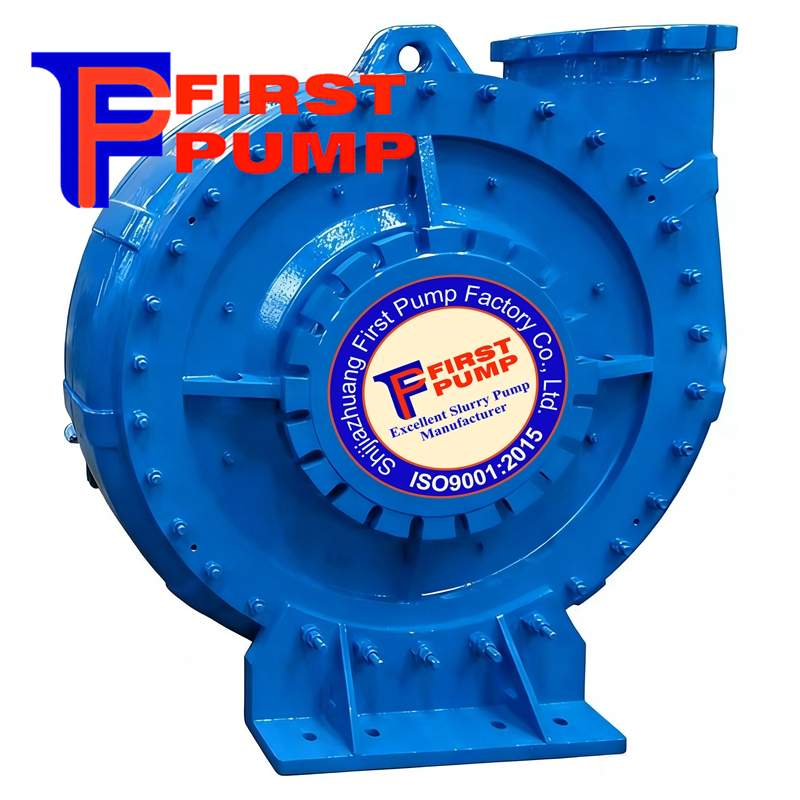

The 300ND-C114L is a premium single-stage, single-suction horizontal centrifugal pump from the WND Series by Shijiazhuang Pump Factory, designed specifically for dredging, sand mining, land reclamation, and tailings transport. Engineered for efficiency, durability, and high-capacity performance, this pump is the ideal choice for both marine and land-based applications.
High Flow Capacity: Handles 2,800–3,600 m³/h, making it perfect for large-scale dredging and sediment transport projects.
Adjustable Head: Offers a 25–50 m head range to meet diverse operational requirements.
Optimized Efficiency: Achieves 75–82% efficiency for energy savings and smooth operation.
Durable Design: Thick-walled, high-chrome alloy (Cr26/Cr27, hardness ≥58HRC) impellers and liners resist wear, corrosion, and abrasive materials.
Blockage-Resistant Impeller: 3-Vane wide-channel impeller allows up to 220 mm solids, preventing clogging and minimizing downtime.
Versatile Sealing Options: Mechanical seal or auxiliary impeller + packing seal (also called centrifugal seal) for reliable operation in harsh environments.
Flexible Installation: Single-casing, cantilever-mounted design suitable for both floating dredgers and land-based installations.
River and channel dredging
Port and harbor maintenance
Land reclamation and filling operations
Sand mining and transport
Tailings and slurry pumping
Power Options: Diesel engine with gearbox or variable frequency electric motor
Dredger Integration: Compatible with 8 to 12 inch cutter suction or trailing suction dredgers
Series Options: Also available in 250ND, 350ND, 400ND, 450ND
The 300ND-C114L WND Series Dredge Pump combines high efficiency, robust construction, and superior solids handling to ensure maximum productivity in demanding dredging and mining operations.
