Selection of Hydraulic Submersible Sand Pump
When selecting a hydraulic submersible sand pump for a specific application, several factors must be considered to ensure optimal performance and reliability. These factors include:
1. Determine the required flow rate, head the distance for pumping for the application to select a pump that can meet these parameters, and calculate the required hydraulic power based on the motor power of the pump type.
2. Match hydraulic oil stations that meet hydraulic power requirements based on the hydraulic power calculated from the selected pump type.
3. Calculate the actual output power of the excavator hydraulic system and select the appropriate pump type
4. Customized modifications can also be made according to customer specific requirements (cutter suction type, trailing suction hopper type, bucket wheel type)
Features of Products
Drive Mode: Hydraulic drive
Material: High chromium wear-resistant alloy
Driving equipment: Large, medium, small hydraulic stations suitable for various models of excavators
Advantages: No need for electricity, super wear-resistant and effective anti clogging, equipped with agitator, continuously variable speed
Safe and stable, driven by a hydraulic system, without the need for any electricity and without the risk of leakage. High load-bearing capacity, balanced transmission, and long lifespan of components

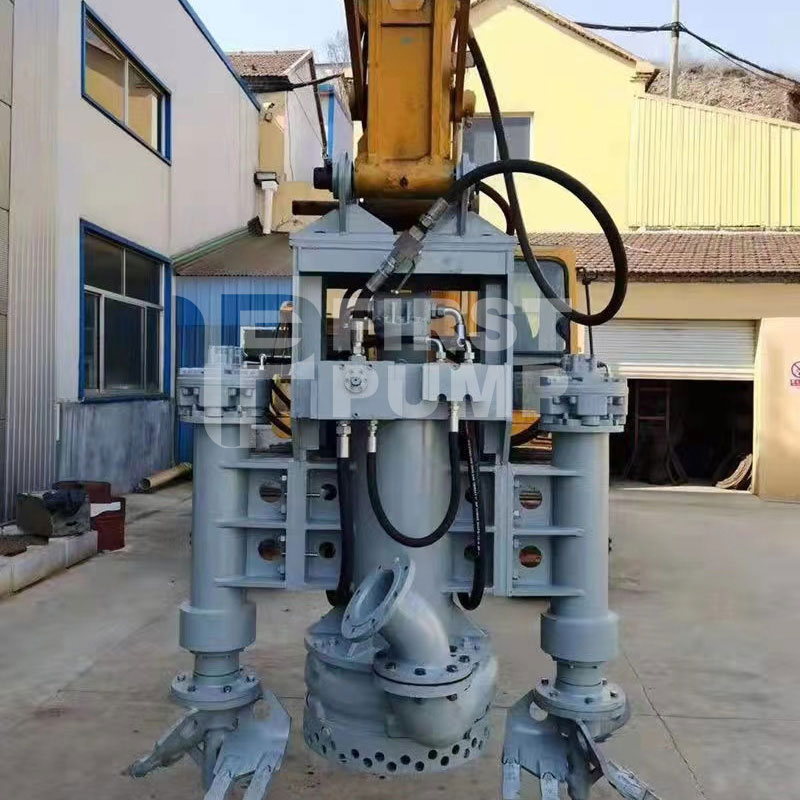

Easy to use: directly installed on the excavator boom (replacing the original bucket) or the suspension bracket of the dredger, without the need for complex ground protection and fixing devices
Stable, efficient and wear-resistant: Strong stability and high efficiency during long-term operation; The overcurrent components (volute, impeller, agitator impeller, etc.) are made of high chromium wear-resistant alloy material, effectively reducing the frequency of component replacement.
It Can extract 50% to 70% of mud, mortar, and other slurry containing solid particles
