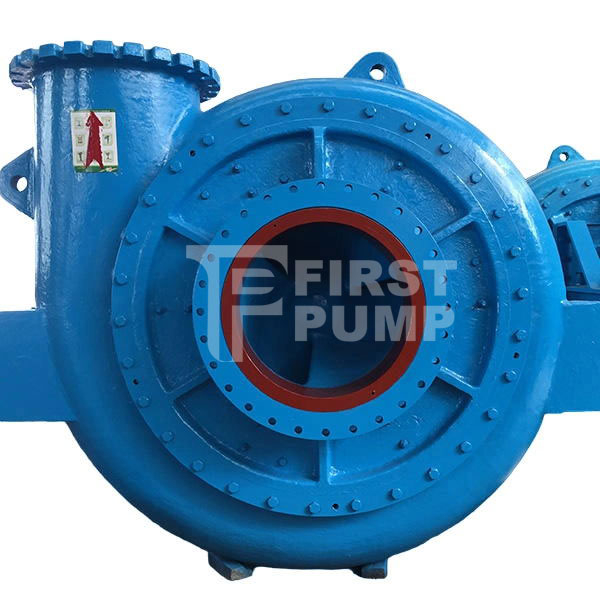

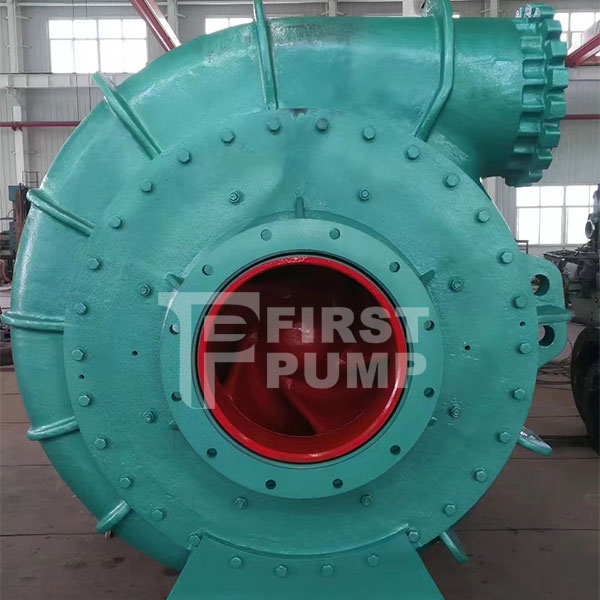

WN Dredge Pumps are horizontal, single-stage, single-suction, cantilevered structure, centrifugal pumps. WN Dredge Pumps of discharge 300 to 500mm are single casing, and of discharge 600 to 1000mm are double casing. It is widely applied to dredging, silt clearing and docks all over the country such as, Yangtze River Basin, Yellow River Basin, Liaohe river basin, Pearl River Delta, Huaihe river basin, etc. The products are also sold to Europe,Middle East and Southeast Asia.
Features of WN Series of Dredge Pumps
• Reliable and Simple Construction Suitable for Dredging Shipping

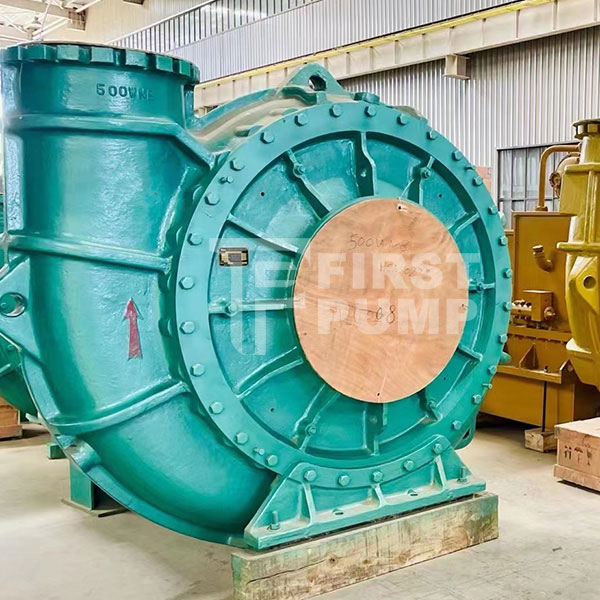

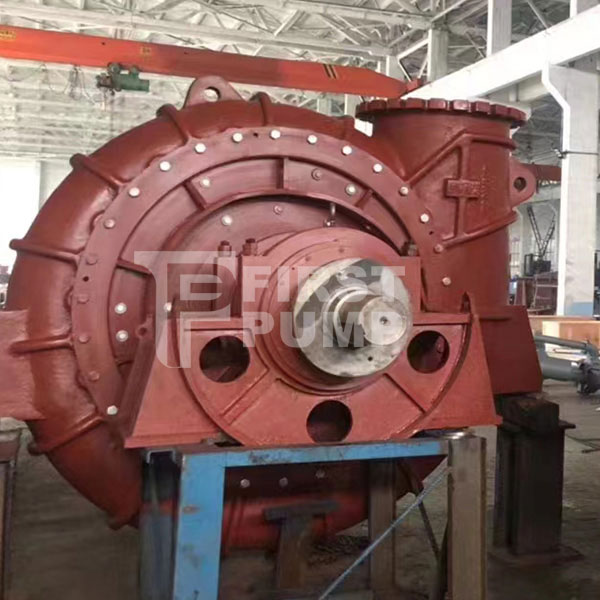

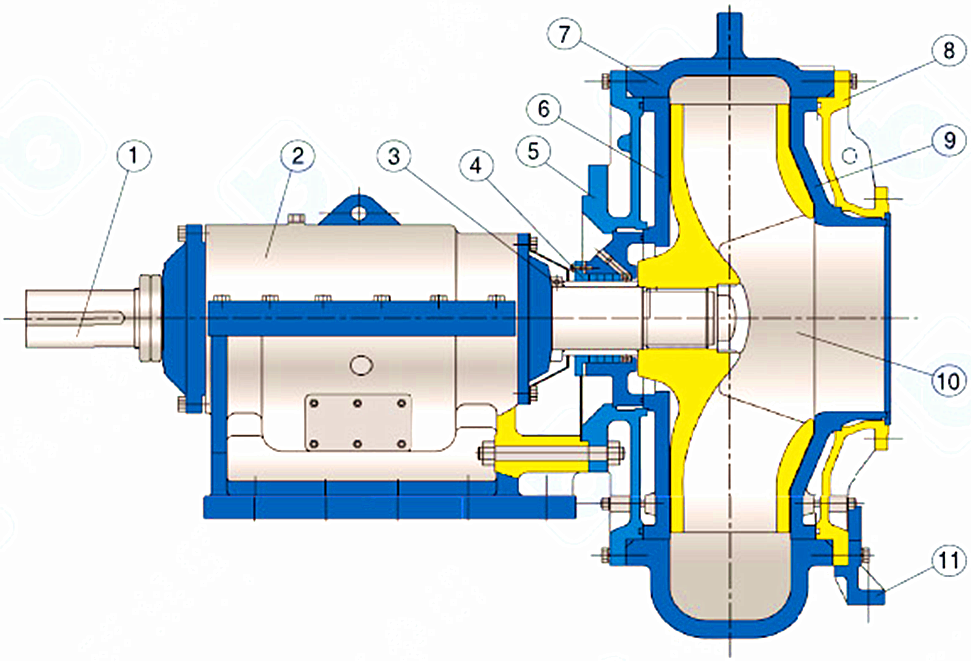

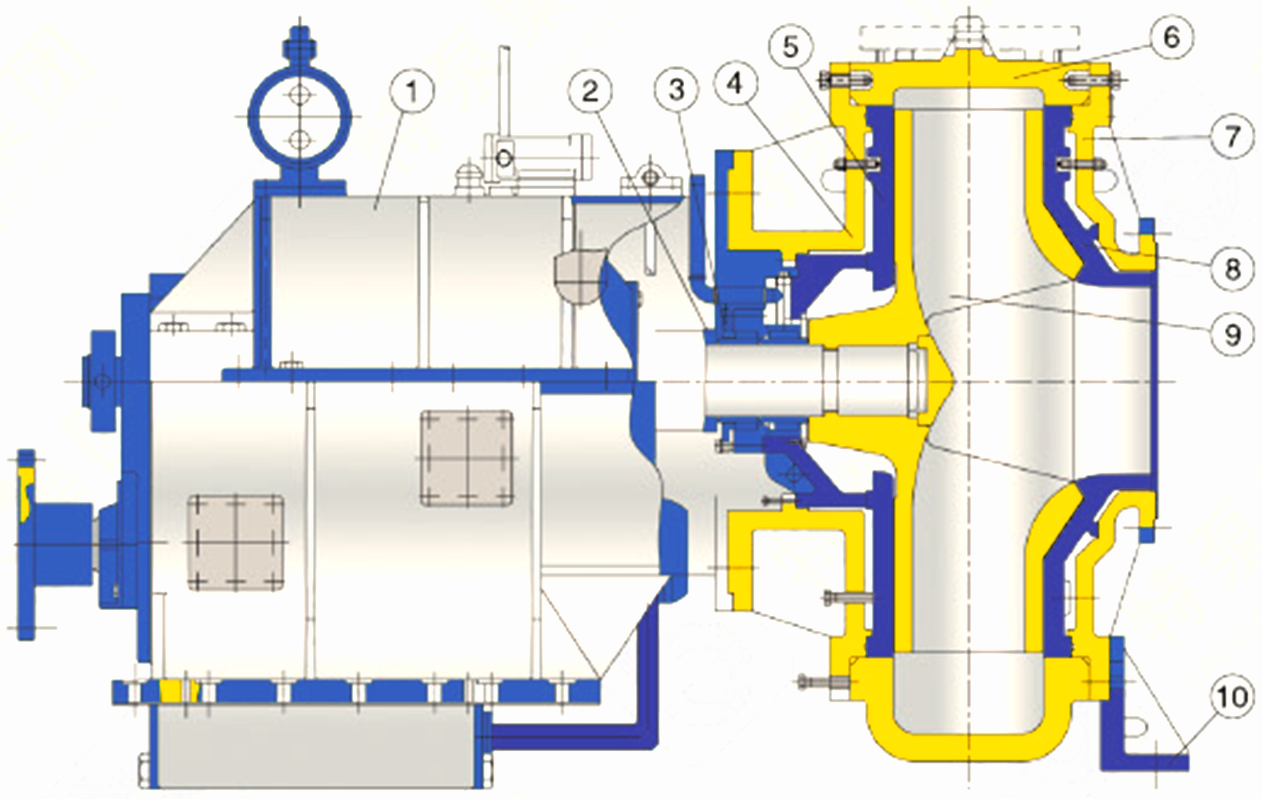

The whole construction of 200-500WN dredging pump is single casing, single-stage, single suction, cantilever horizontal structure. It can be divided into two types by different gearbox linking way, Self-bracket type and pump casing, and gearbox integrated into one type. The first type is lubricated by grease or diluted lubricant.

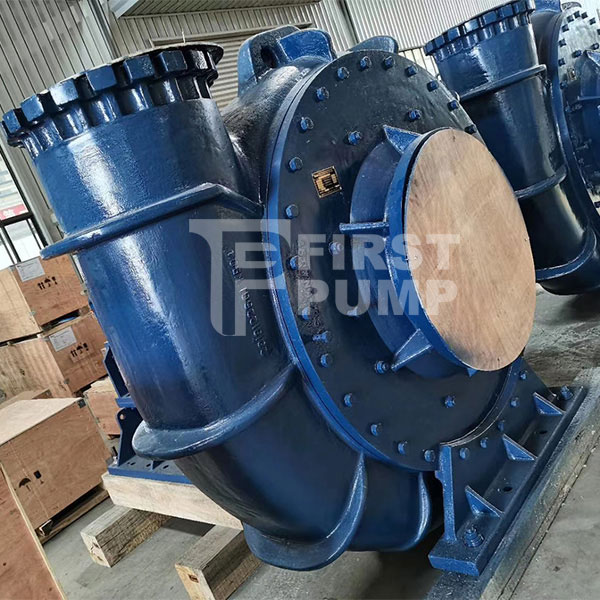

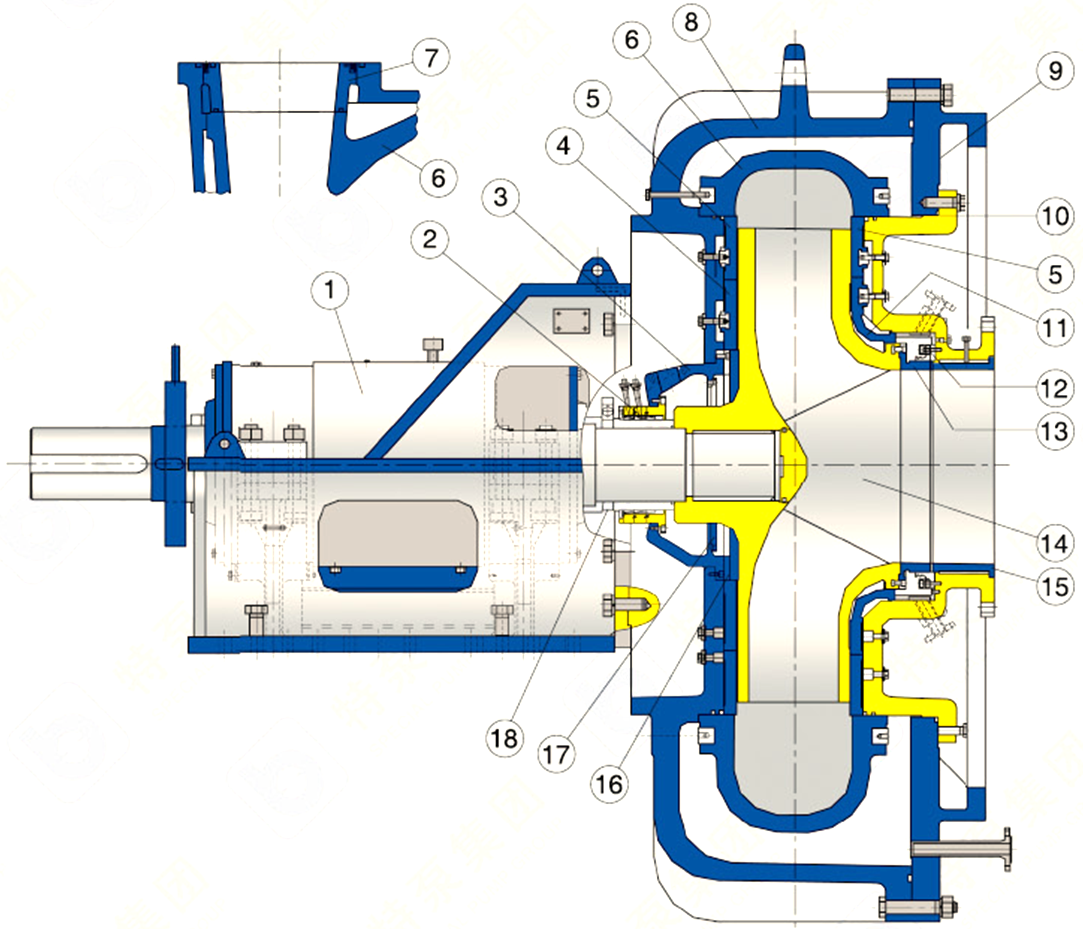

The whole construction of 600-100WN dredging pump is designed into double suction single-stage, single-suction cantilever horizontal structure with bracket which is lubricated by forced diluted lubricant. The safety and reliability of double casing make the liner used up until it is nearly broken. Even if the liner broken, water can’t flow into pump casing.
• Easy Dis-assembly and Installation, Convenient Maintenance
WN Dredging pump is adopted front-dis-assembly structure in favor of dis-assembly and maintenance. It is also equipped with special dis-assembly tools for each different parts by the characters of each part.
The standard trapezoidal quadruple thread is adopted to connect the impeller and shaft which not only transmits strong torque but also is easy to disassemble. Meanwhile there is a Dis-assembly impeller ring in the shaft sleeve in favor of disassembling impeller.
• Excellent Dredging Performance
Good NPSH. WN dredging pump has good NPSH which ensure the strong suction ability as well as dredge depth and denser dredged mud.
• High Through-put Capacity, Wide Application Field.
The wide running passage of impeller of WN dredging pump and the dredging pump’s a high passing capacity make sure of the good performance of dredger. While it can deliver the particles or high plastic solid lump persistently and clogging won’t happen.
• Curve of Performance Decreases Sharply
The flow capacity and head curve of WN dredging pump decrease sharply, which makes dredging pump is easier to adjust to change of distance of piping water.
It is realized that WN dredging pump performance can be changed.
At the same flow capability, changing the impeller’s rotating speed or changing the impeller diameter can change the head of WN dredging pump.
• Excellent Anit-wear Performance, Long Service Life of Wet End Parts

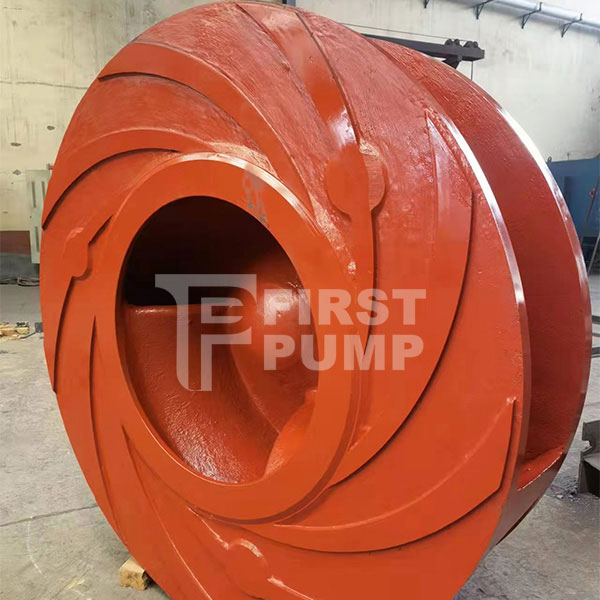

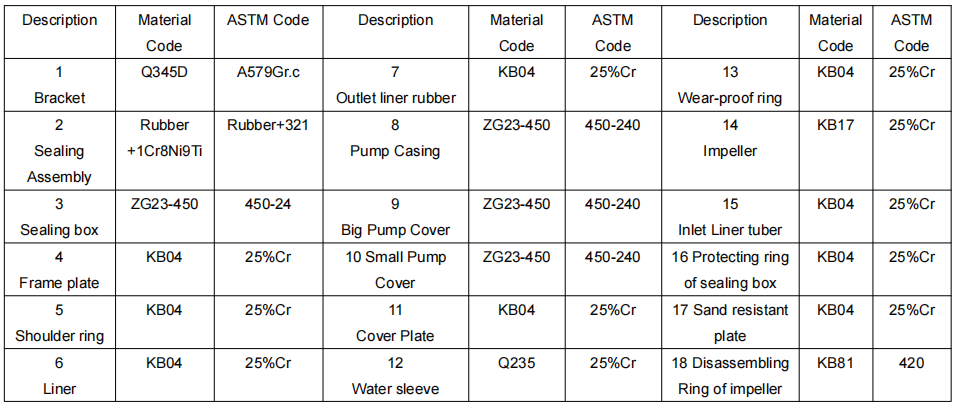

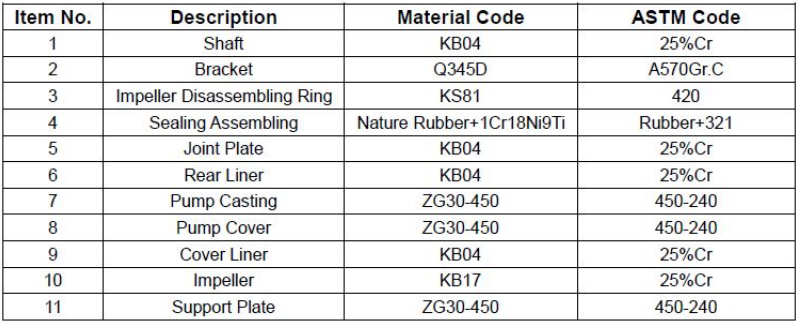

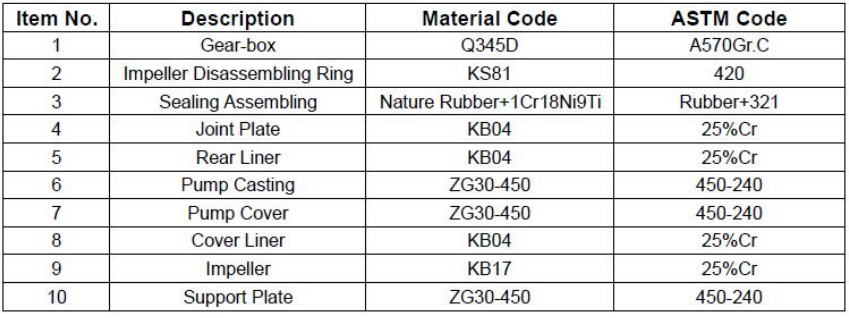

Wet end parts of this kind of dredging pump - impeller, Volute, throat-bush & frame plate liner Insert, are adapted high chrome anti-wear alloy whose hardness is more than 58HRC, which has both strong anti-attack feature and higher resistance wear can resistance abrasion feature The hardness of A31 material that is researched and tested successfully by SSIP can reach 70HRC.
• For fully considered the service life match between each spare part, the resistant wear parts have the same replacing period which is good to maintain and reduce the replacing cost.
• A Little Hydraulic Loss, High Efficiency, Low Power Consumption
Due to adopting advanced hydraulic model, WN dredging pump efficiency is very high series of WN dredging pump working efficiency is higher 2-3 percent than the exported dredging Pump working efficiency. Therefore, it can be lower oil consumption at the same productive quantity.
• Reliable Shaft Sealing Without Leakage

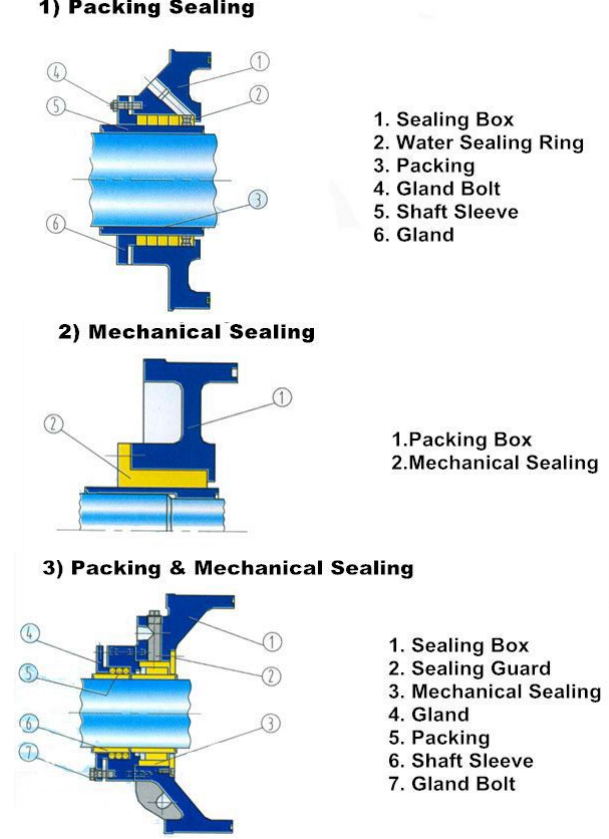

The shaft of 200-500WN dredging pump uses the mechanical sealing or stuffing sealing or Mechanic-stuffing compound sealing.

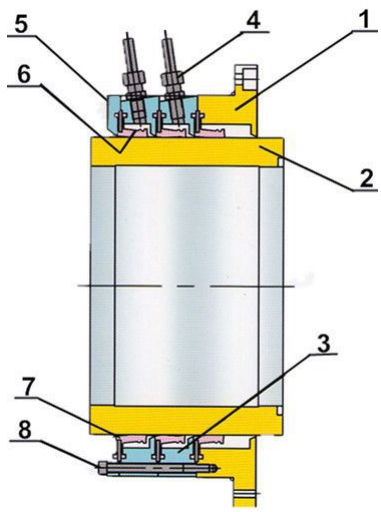

The shaft of 600-1000WN dredging pump adopts spiral sleeve L (shape) rubber sealing device that consists of three L sealing ring and one special bearing shaft sleeve.
