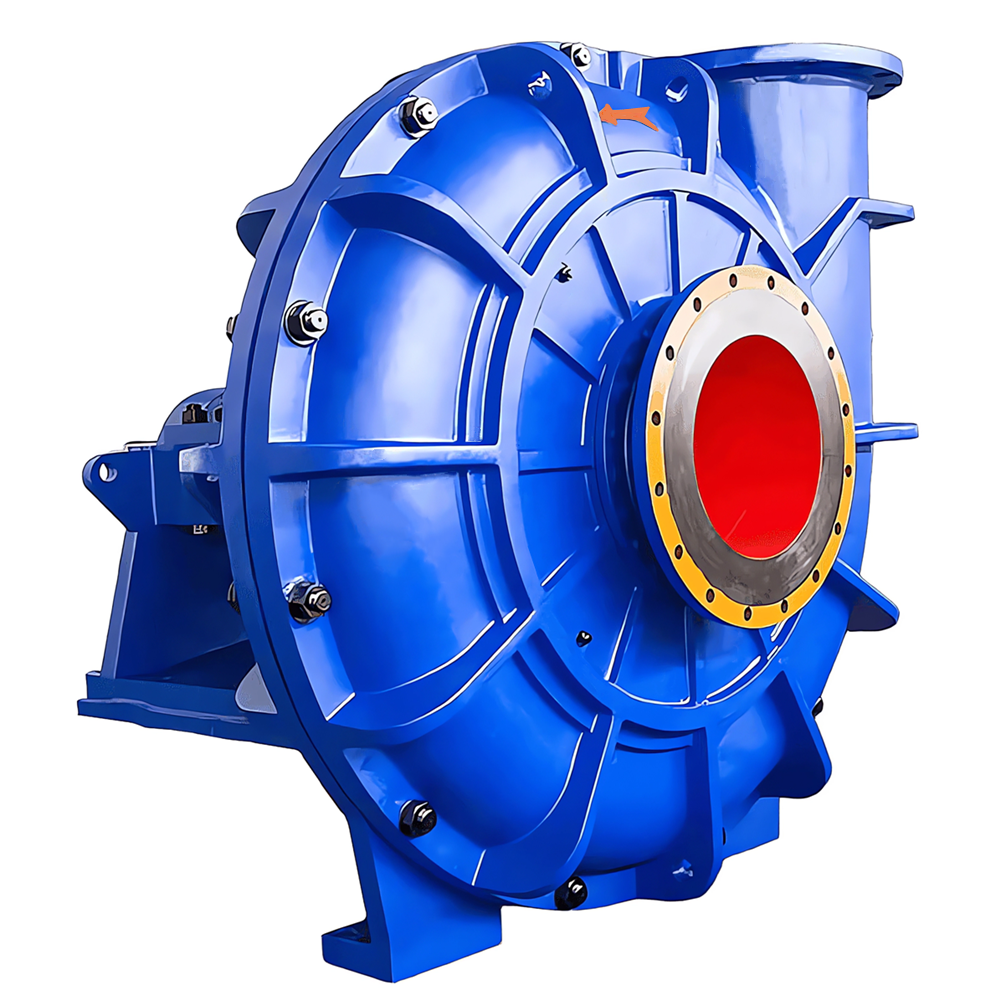

HZJ Series Heavy-Duty Slurry Pump
The HZJ Series Slurry Pump is engineered for extreme durability and performance in the most demanding industrial environments. Built to handle highly abrasive slurries, corrosive liquids, and dense solids-laden fluids, this pump excels in mining, metallurgy, beneficiation, and other heavy-duty applications where reliability and longevity are critical.
Key Features & Benefits
Robust Construction for Severe Conditions
High Chrome Alloy Wet Parts: Casings, impellers, and liner plates are crafted from wear-resistant high-chrome cast iron, ensuring extended service life even under relentless abrasion.
Thickened Components & Wide Flow Channels: Reinforced wet parts and a 3/4-vane impeller design reduce slurry velocity, minimize wear, and enhance flow capacity for handling gravel, clay lumps, and coarse particles.
Advanced Sealing & Cooling Systems
Versatile Sealing Options: Choose between packing seals or mechanical seals, supported by pumped liquid or external cooling.
Expeller Seal Technology: Generates a hydrodynamic barrier to prevent leakage, even at low RPMs or during shutdowns. Reduces water consumption and prolongs shaft sleeve life.
Heavy-Duty Design & Easy Maintenance
Oversized Bearings: Grease or oil-lubricated bearings ensure smooth operation under high loads.
Standardized Bracket Structure: Simplifies assembly and disassembly, reducing downtime and maintenance effort.
Horizontal, Double-Case Configuration: Combines ruggedness with straightforward servicing for minimal operational disruptions.
Optimized Hydraulic Efficiency
Engineered for energy-saving performance and stable operation, reducing power consumption while maintaining high flow rates.
Applications
Ideal for transferring, circulating, or pressurizing abrasive and corrosive media, including:
Mining slurries, mineral concentrates, and tailing
Filter press feed, blasting residues, and fly ash
Mud, lime suspensions, and chemical slurries
Aggregates, gravel, and high-viscosity mixtures
Why Choose the HZJ Series?
Maximized Uptime: Every component is optimized to resist failure, delivering longer trouble-free operation.
Cost-Effective Performance: Durable materials and low-maintenance design cut replacement costs and labor intensity.
Flexible Configurations: Available in multiple materials and drive options (direct motor or belt-driven) to suit diverse slurry types and site requirements.
HZJ Series Slurry Pumps Performance Parameters
Max | Max | Pump | ||||||
Model | Power | Capacity | Head | Speed | Max Eff. | (NPSH)r | Partical Size | Weight |
(Kw) | (m3/h) | (m) | (RPM) | (%) | (m) | (mm) | (Kg) | |
550HZJ-I-B160 | 1400 | 2960-7600 | 22-56 | 250-365 | 79.5 | 6.7 | 130 | 25902 |
350HZJ-B85 | 1000 | 1850-3120 | 49-61 | 740 | 76 | 7.5 | 68 | 6527 |
300HZJ-B103 | 1000 | 1200-2100 | 56-66 | 590 | 77 | 3.2 | 80 | 7266 |
300HZJ-B80 | 1120 | 1600-2720 | 78-96 | 980 | 75 | 7.5 | 88 | 5053 |
250HZJ-B103 | 900 | 950-1800 | 97-111 | 740 | 73 | 8.0 | 70 | 5727 |
250HZJ-B96 | 900 | 662-1677 | 27-52 | 740 | 77 | 5.8 | 75 | 3523 |
200HZJ-B70 | 710 | 510-860 | 77-84 | 980 | 71 | 4.8 | 63 | 3160 |
Engineered for resilience and efficiency, the HZJ Series Slurry Pump is your solution for challenging slurry transport—where downtime is not an option. Invest in reliability, reduce lifecycle costs, and boost productivity with a pump built to outperform.
