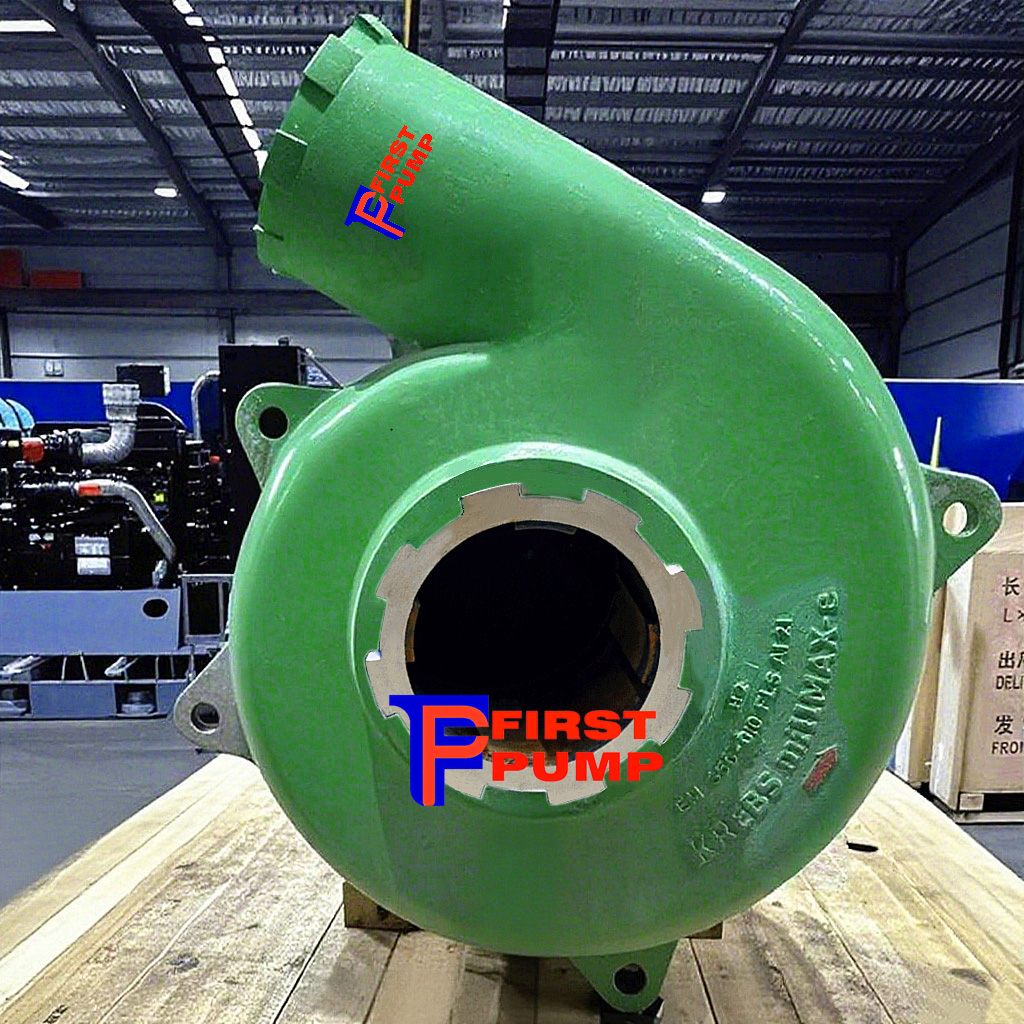

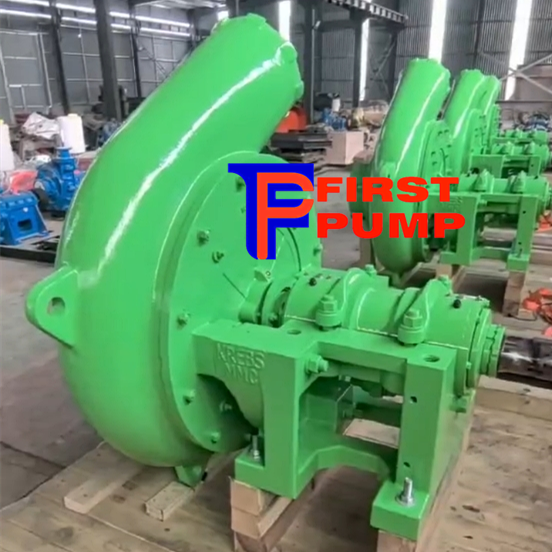

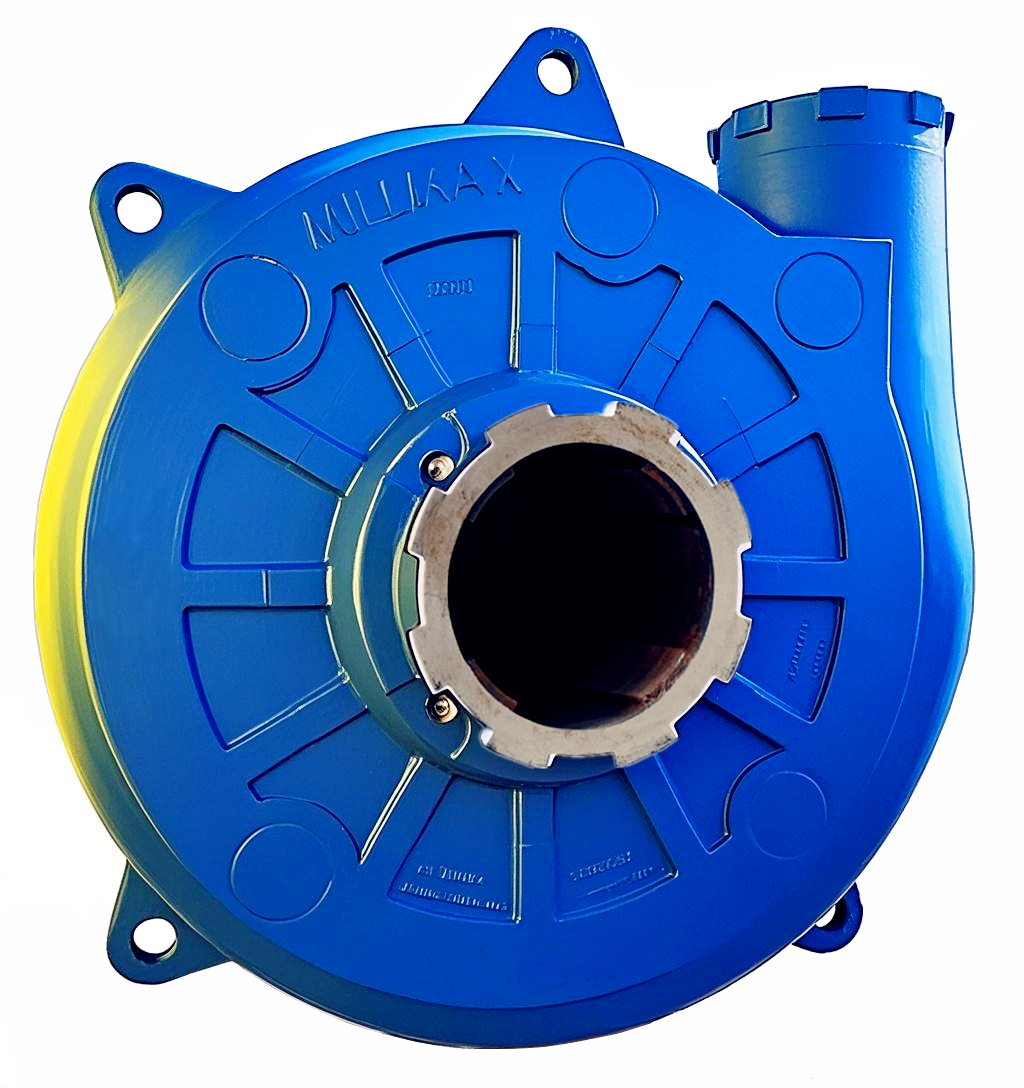

FLS millMAX Slurry Pumps
Engineered to redefine reliability and efficiency in abrasive slurry handling, the FLS millMAX Slurry Pump series delivers unparalleled performance for the most demanding industrial applications. Combining proprietary sealing technology, energy-saving design, and adaptive configurations, millMAX slurry pumps set a new standard in reducing operational costs and maximizing productivity across mining, mineral processing, and high-pressure industrial systems.
Why millMAX Slurry Pump? Key Innovations:
Proprietary Wear Ring Suction-Side Sealing
• Eliminates Dual Challenges: Solves slurry recirculation and solids grinding—issues that plague conventional pumps. The adjustable wear ring maintains optimal suction-side clearance during operation, preventing performance drop and particle degradation.
• Constant Efficiency: Maintains consistent flow and head without speed increases, extending component life and cutting power consumption by up to 30%.
Engineered for Longevity & Cost Savings
• Even Wear Life: Hydraulic optimization and wear-resistant materials ensure predictable wear patterns, reducing unplanned downtime.
• Bearings Built to Last: Reverse-taper roller bearings resist over-greasing and slurry ingress, while heavy-duty power frames withstand extreme loads.
Industry-Leading Adaptability
• Retrofit-Ready Design: millMAX Slurry Pump wet ends integrate with competitor power frames for seamless performance comparisons.
• Particle Protection: Critical for diamond and potash industries, where avoiding solids grinding preserves product value.
Unmatched Features
• Adjustable Wear Ring Assembly: Enables real-time clearance adjustments during operation, eliminating recirculation.
• Optimized Hydraulics: Concentric casing (millMAX HH) and expelling vanes minimize radial thrust, ensuring stable performance across duty ranges.
• High-Pressure Capability: millMAX HP models handle >500 psi (35 bar) with tie-bolt casing for ultrasonic thickness monitoring and safe maintenance planning.
• Low Maintenance Design: External adjustment bolts, wide suction-side clearances, and dry-gland seals simplify upkeep.
millMAX Slurry Pump Model Range
millMAX-e (Medium-Duty)
• Compact, space-saving design with 25% lower power consumption vs. conventional pumps. Ideal for plant-wide applications requiring efficiency without sacrificing robustness.
millMAX HP (High-Pressure)
• Tie-bolt casing withstands extreme pressures in multi-stage systems. Adjustable wear ring ensures suction-side sealing even under 500+ psi loads.
millMAX HH (High-Head)
• Concentric casing design eliminates radial thrust, perfect for filter press feed and high-head applications. Maintains efficiency from low-flow/high-head to high-flow/low-head duties.
Specifications
Size in Inches | Size in Milimeters |
2x1.5 | 50x40 |
3x2 | 80x50 |
4x3 | 100x80 |
6x4 | 150x100 |
8x6 | 200x150 |
10x8 | 250x200 |
12x10 | 300x250 |
14x12 | 350x300 |
16x14 | 400x350 |

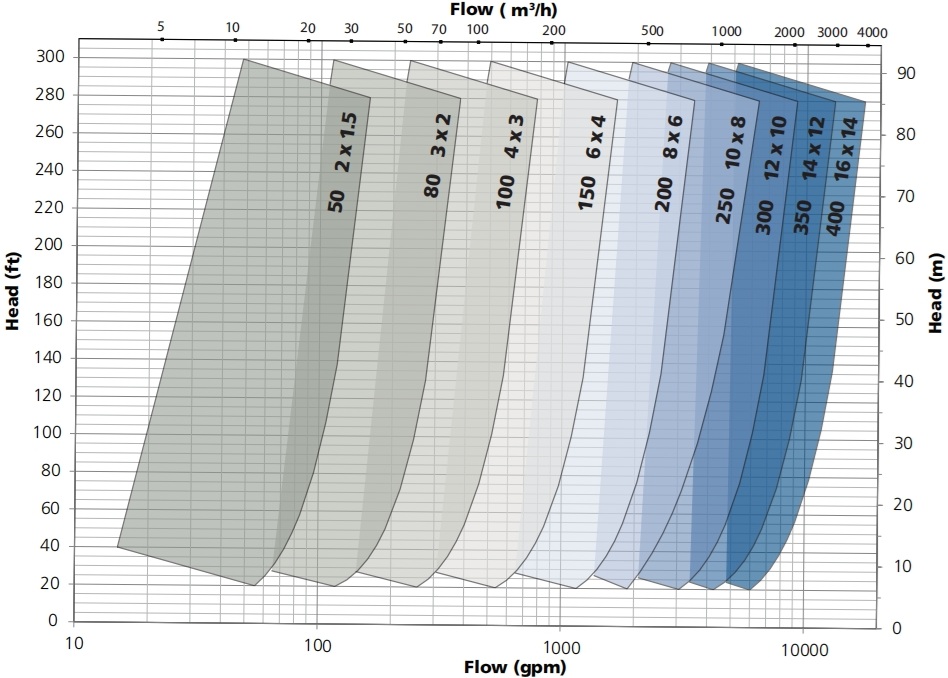

Quick Selection Chart
Material of Wear Parts Available:
• High Chrome White Iron (A05, A49, A61, etc.): Impellers, Volutes, Throatbushes, Frame Plate Liner Inserts
Applications
• Mining & Minerals: Mill discharge, tailings, cyclone feed.
• High-Value Slurries: Diamond, potash, and industrial minerals requiring zero particle degradation.
• High-Pressure Systems: Multi-stage pumping, process water.
• Filter Press Feed: Stable performance across variable head/flow demands.
The millMAX Slurry Pump Advantage
• Lower TCO: Reduced energy, maintenance, and downtime costs translate to lower cost-per-ton.
• Future-Proof Technology: Lab-tested designs and FLS engineering support ensure optimal pump selection and lifecycle performance.
• Sustainable Efficiency: Minimized power use and component wear align with ESG goals.
Proven Performance, Backed by Expertise
First Pump offers full-service lab testing and application-specific pump selection, leveraging decades of slurry expertise to tailor solutions for your operational needs.
Choose millMAX Slurry Pump—Where Innovation Meets Reliability.
Transform your slurry handling with pumps designed to outlast, outperform, and outsave.
Experience the millMAX Slurry Pump Difference: Efficiency Uncompromised.
