ANDRITZ High-Pressure Pumps MP Series
Precision Engineered for Demanding Industrial Applications
The ANDRITZ MP Series High-Pressure Pumps combine robust engineering with advanced modular design to deliver unmatched reliability and adaptability in high-pressure fluid handling. Built for continuous operation in the most challenging industrial environments, these pumps excel in applications ranging from water supply and irrigation to boiler feed and industrial circulation. With a focus on efficiency, durability, and ease of maintenance, the MP Series ensures optimal performance across diverse sectors.
Key Features & Benefits
l Modular Compact Design: A strict modular system enables rapid, cost-effective customization to meet specific project needs without complex modifications. Seven pump sizes and nine hydraulic systems cover the entire performance spectrum.

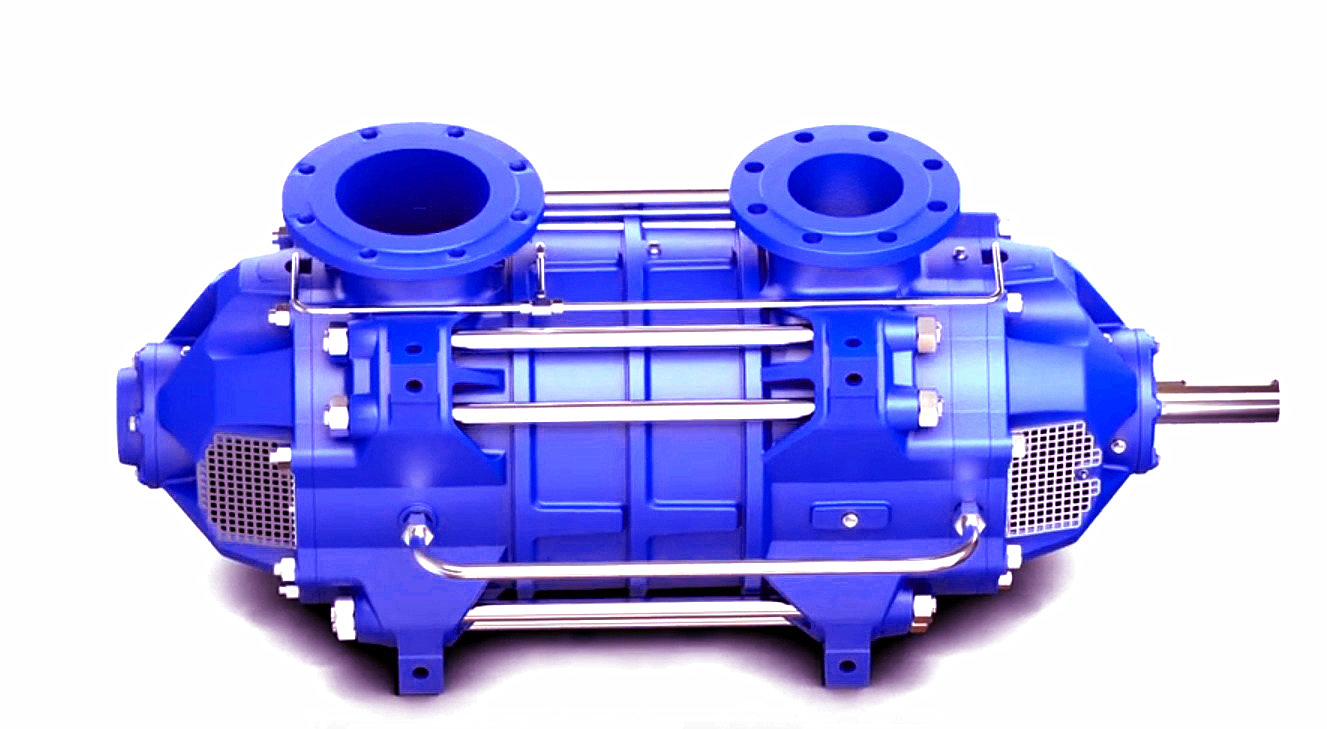

l Sturdy Construction: Multi-stage casing with closed radial impellers and axial thrust compensation via relief bore holes minimize bearing load, ensuring smooth operation and extended service life.
l Internal Axial Heat Absorption: Manages thermal expansion internally, preserving coupling alignment and reducing mechanical stress during operation.
l Effortless Maintenance: Bearings and shaft seals can be replaced without dismantling the pump body, minimizing downtime.
l IIoT Readiness: Supports integration with the Industrial Internet of Things for predictive maintenance and real-time performance monitoring.
Technical Excellence
l Flow Rate: Up to 400 ms.
l Proven Expertise: Ba³/h
l Head: Up to 950 m
l Pressure: Up to 100 bar
l Temperature Range: -20°C to +160°C
l Power Capacity: Up to 600 kW
Robust Material Combinations
Engineered for corrosion resistance and longevity in harsh conditions:
l Casings (Multi-stage, Suction, Discharge): EN-GJL 250 or stainless steel 1.4408.
l Impellers & Diffusors: Stainless steel 1.4408 for wear and corrosion resistance.
l Shaft: High-strength 1.4021 or duplex stainless steel 1.4462, ensuring durability under high-stress conditions.
Versatile Applications
The MP Series is ideal for conveying:
l Water Systems: Municipal water supply, irrigation, drainage, and boiler feed.
l Industrial Fluids: Hot/cold water, condensate, deionized water, oils, and suspensions.
l Energy & Process: Circulation in power plants, chemical processing, and industrial cooling networks.
Why Choose ANDRITZ MP Series?
l Modular Flexibility: Tailor configurations quickly to meet operational demands.
l High-Pressure Performance: Reliable operation at up to 100 bar and 160°C.
l Low Lifecycle Costs: Durable materials and easy maintenance reduce downtime and expensecked by decades of hydraulic engineering innovation.
Future-Ready Solutions
With IIoT compatibility, the MP Series empowers industries to transition seamlessly into smart, data-driven operations, optimizing efficiency and uptime.
Elevate your high-pressure pumping system
s with the ANDRITZ MP Series—where precision engineering meets industrial resilience. For detailed specifications or custom solutions, explore our brochures or contact our technical team today.
ANDRITZ MP Series: Powering Performance Under Pressure.
