Shijiazhuang First Pump Factory proudly introduces the WQ (11-22kW) Submersible Sewage Pump, engineered to redefine reliability and efficiency in wastewater management. Compliant with the GB/T24674-2009 national standard, this pump integrates cutting-edge domestic and international technologies to deliver unmatched hydraulic performance, durability, and versatility. Designed for rigorous environments, it combines innovative overload-proof engineering with optimized configurations for seamless operation across diverse applications.

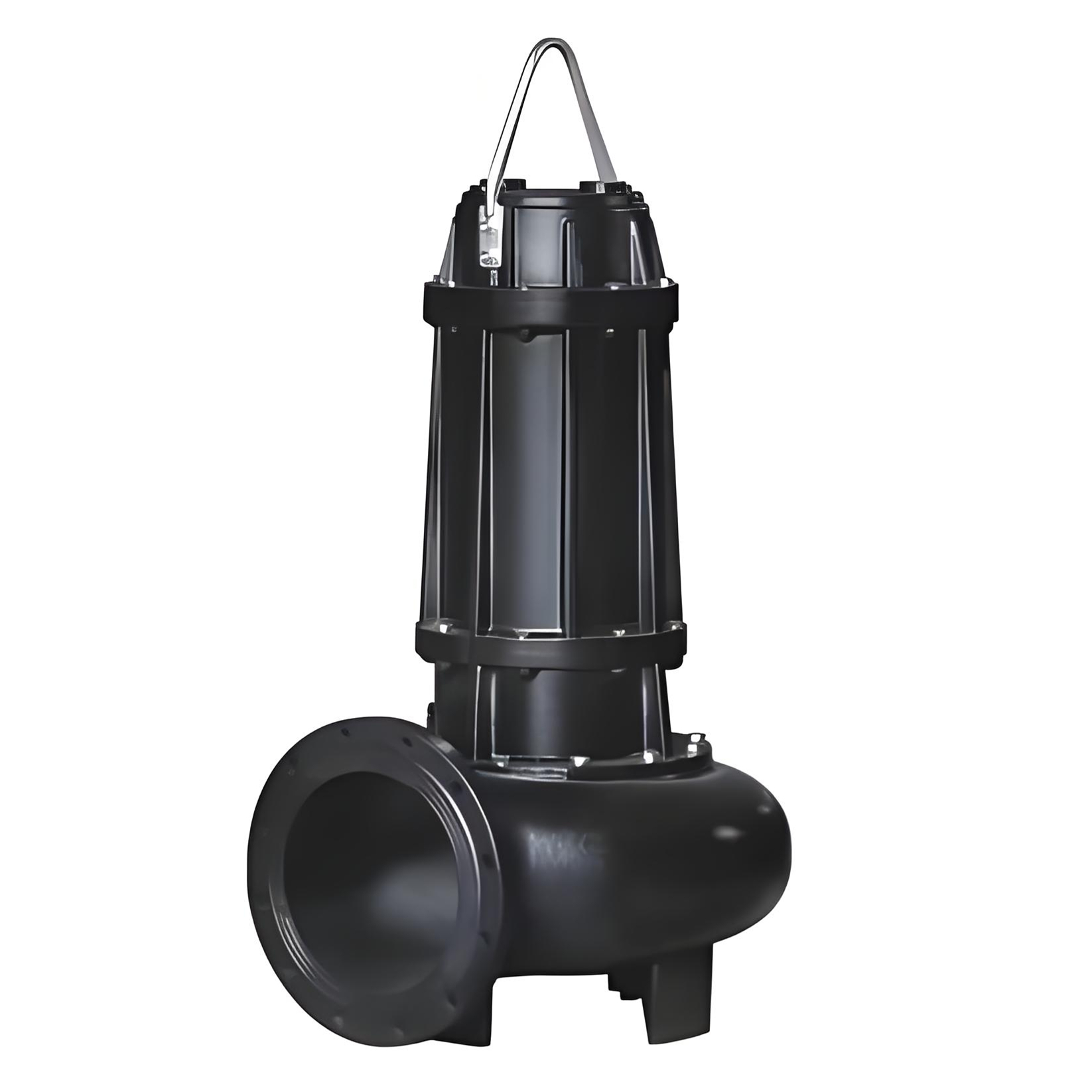

WQ Submersible Sewage Pumps
Advanced Performance for Demanding Applications
Shijiazhuang First Pump Factory proudly introduces the WQ (11-22kW) Submersible Sewage Pump, engineered to redefine reliability and efficiency in wastewater management. Compliant with the GB/T24674-2009 national standard, this pump integrates cutting-edge domestic and international technologies to deliver unmatched hydraulic performance, durability, and versatility. Designed for rigorous environments, it combines innovative overload-proof engineering with optimized configurations for seamless operation across diverse applications.
Primary Applications
Ideal for:
Municipal sewage treatment plants and lifting pump stations
Waterworks and integrated prefabricated pumping systems
Agricultural drainage, flood control, and water diversion projects
Industrial and urban wastewater management
Key Features & Innovations
Overload-Proof Hydraulic Design
High-Efficiency Flow Optimization: A revolutionary hydraulic model ensures maximum power output within the high-efficiency zone, eliminating motor overload risks even at full head conditions.
Superior Solids Handling: Advanced CFD-tested impeller design balances fluid dynamics and debris passage, enabling smooth transport of solids and fibrous materials without clogging.
Robust Sealing & Durability
Premium Mechanical Seals: Equipped with Burgmann WC/WC mechanical seals, renowned for extended service life even in abrasive conditions.
Self-Cleaning Technology: Dual seals with spiral grooves prevent particle buildup, enhancing reliability and reducing maintenance.
Heavy-Duty Construction
Fortified Components: Cast iron/ductile iron construction ensures resilience against corrosion and wear, while a short shaft design minimizes breakage risks.
Long-Lasting Bearings: Heavy-duty bearings guarantee a minimum lifespan of 100,000 hours, supporting continuous operation.
H-Class Submersible Motor
High-Temperature Resistance: Insulation grade H (180°C-rated) ensures reliable performance under thermal stress, ideal for prolonged submersion.
Flexible Installation
Universal Mounting Options: Automatic coupling systems enable quick, tool-free installation, reducing downtime and labor costs.
Technical Specifications
Medium Temperature: <40°C
Density: ≤1,050 kg/m³
pH Range: 4–10
Material Compatibility: Suitable for mildly corrosive fluids; not recommended for highly corrosive chemicals or large solid particles.
Fiber Handling: Processes fibers shorter than discharge diameter.

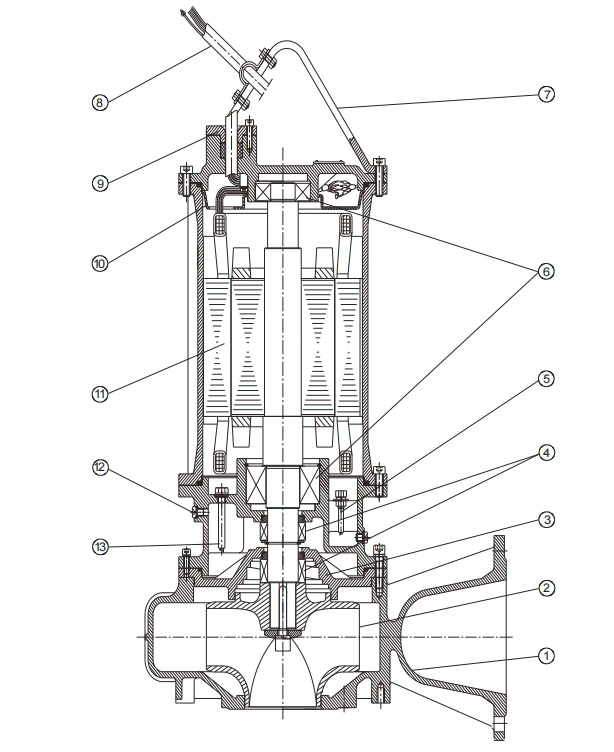

Key Structural Diagram of 11kW-22kW Submersible Sewage Pumps
1 | Casing | 5 | Leakage Detector | 9 | Cable Seal | 13 | Leakage Detector |
2 | Impeller | 6 | Bearing | 10 | Wiring Cover | ||
3 | Pump Cover | 7 | Lifting Handle | 11 | Submersible Motor | ||
4 | Mechanical Seal | 8 | Cable | 12 | Screw and Filter |
Materials Of Main Parts
Part Name | Material | |
Impeller、 Pump Cover | Ductile iron | |
Casing,Terminal Box、 Bracket | FC250 | |
Shaft | SUS420 | |
Motor Insulatior | 180℃ Insulation grade H | |
Bearing Brand | SKF | |
Mechanical Seal | Brand | Burgmann |
Motor side friction pairs | Graphite/SiC | |
Pump side friction pairs | SiC/WC | |
O-ring |
NRB 40 | |
Cable Seal Ring | ||

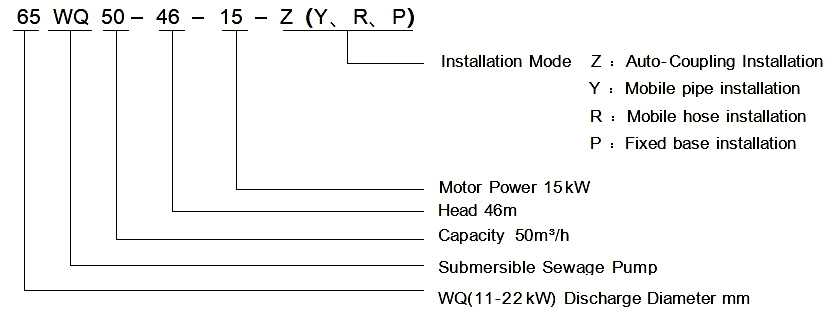

Model Description
WQ(11-22kW) Performance Parameter
WQ(11-22kW) Series Submersible Pump Performance Table | |||||||||
NO. |
New Model |
Old Model | DN | Capacity | Head | Speed | Power | Max.passby diameter | weight |
mm | m3/h | m | r/min | kW | mm | kg | |||
1 | 65WQ40-40- 11 | WQ2210-2111-65 |
65 | 40 | 40 | 2940 | 11 | 30 | 128 |
2 | 65WQ50-46- 15 | WQ2210-2112-65 | 50 | 46 | 2940 | 15 | 30 | 136 | |
3 | 80WQ70-30- 11 | WQ2210-2115-80 |
80 | 70 | 30 | 2935 | 11 | 36 | 128 |
4 | 80WQ80-34- 15 | WQ2210-2116-80 | 80 | 34 | 2935 | 15 | 36 | 138 | |
5 | 80WQ70-48- 18.5 | WQ2260-2117-80 |
80 | 70 | 48 | 2940 | 18 .5 | 40 | 185 |
6 | 80WQ80-53-22 | WQ2260-2118-80 | 80 | 53 | 2940 | 22 | 40 | 200 | |
7 | 100WQ120-31-18.5 | WQ2260-2123- 100 |
100 | 120 | 31 | 2940 | 18 .5 | 44 | 222 |
8 | 100WQ130-33-22 | WQ2260-2124- 100 | 130 | 33 | 2940 | 22 | 44 | 236 | |
9 | 150WQ160- 15- 11 | WQ2260-4125- 150 |
150 | 160 | 15 | 1460 | 11 | 60 | 226 |
10 | 150WQ200- 16- 15 | WQ2260-4138- 150 | 200 | 16 | 1460 | 15 | 60 | 242 | |
11 | 200WQ280- 11- 11 | WQ2260-4128-200 |
200 | 280 | 11 | 1460 | 11 | 70 | 258 |
12 | 200WQ300- 13- 15 | WQ2260-4129-200 | 300 | 13 | 1460 | 15 | 70 | 274 | |
13 | 200WQ300-16-18.5 | WQ2260-4130-200 | 300 | 16 | 1470 | 18 .5 | 70 | 294 | |
14 | 200WQ300- 18-22 | WQ2260-4131-200 | 300 | 18 | 1470 | 22 | 70 | 306 | |
15 | 200WQ380-7- 11 | WQ2260-4154-200 |
200 | 380 | 7 | 1460 | 11 | 80 | 254 |
16 | 200WQ400-8- 15 | WQ2260-4155-200 | 400 | 8 | 1460 | 15 | 80 | 270 | |
17 | 200WQ500-8- 18.5 | WQ2260-4156-200 | 500 | 8 | 1470 | 18 .5 | 80 | 286 | |
18 | 200WQ520- 10-22 | WQ2260-4157-200 | 520 | 10 | 1470 | 22 | 80 | 298 | |
19 | 250WQ370-8- 11 | WQ2260-4158A-250 |
250 | 370 | 8 | 1470 | 11 | 100 | 290 |
20 | 250WQ400- 10- 15 | WQ2260-4158-250 | 400 | 10 | 1470 | 15 | 100 | 310 | |
21 | 250WQ500-10-18.5 | WQ2260-4159A-250 | 500 | 10 | 1470 | 18 .5 | 100 | 325 | |
22 | 250WQ500- 12-22 | WQ2260-4159-250 | 500 | 12 | 1470 | 22 | 100 | 350 | |
23 | 300WQ650-6- 15 | WQ2290-6155-300 |
300 | 650 | 6 | 980 | 15 | 90 | 530 |
24 | 300WQ700-7- 18.5 | WQ2290-6156-300 | 700 | 7 | 980 | 18 .5 | 90 | 550 | |
25 | 300WQ750-8-22 | WQ2290-6157-300 | 750 | 8 | 980 | 22 | 90 | 570 | |
26 | 350WQ900-4- 15 | WQ2368-8152-350 |
350 | 900 | 4 | 730 | 15 | 70 | 760 |
27 | 350WQ1050-4-18.5 | WQ2368-8153-350 | 1050 | 4 | 730 | 18 .5 | 70 | 780 | |
28 | 350WQ1150-5-22 | WQ2368-8154-350 | 1150 | 5 | 730 | 22 | 70 | 800 | |
Note: there is a one-to-one correspondence between the new model and old model
Installation Types:
WQ Submersible sewage pump can be installed through auto-coupling installation (Z), fixed base installation (P), fixed base installation (F), mobile hose installation (R) and mobile pipe installation(Y). All above-mentioned installation modes are simple, and they will be introduced respectively as below:

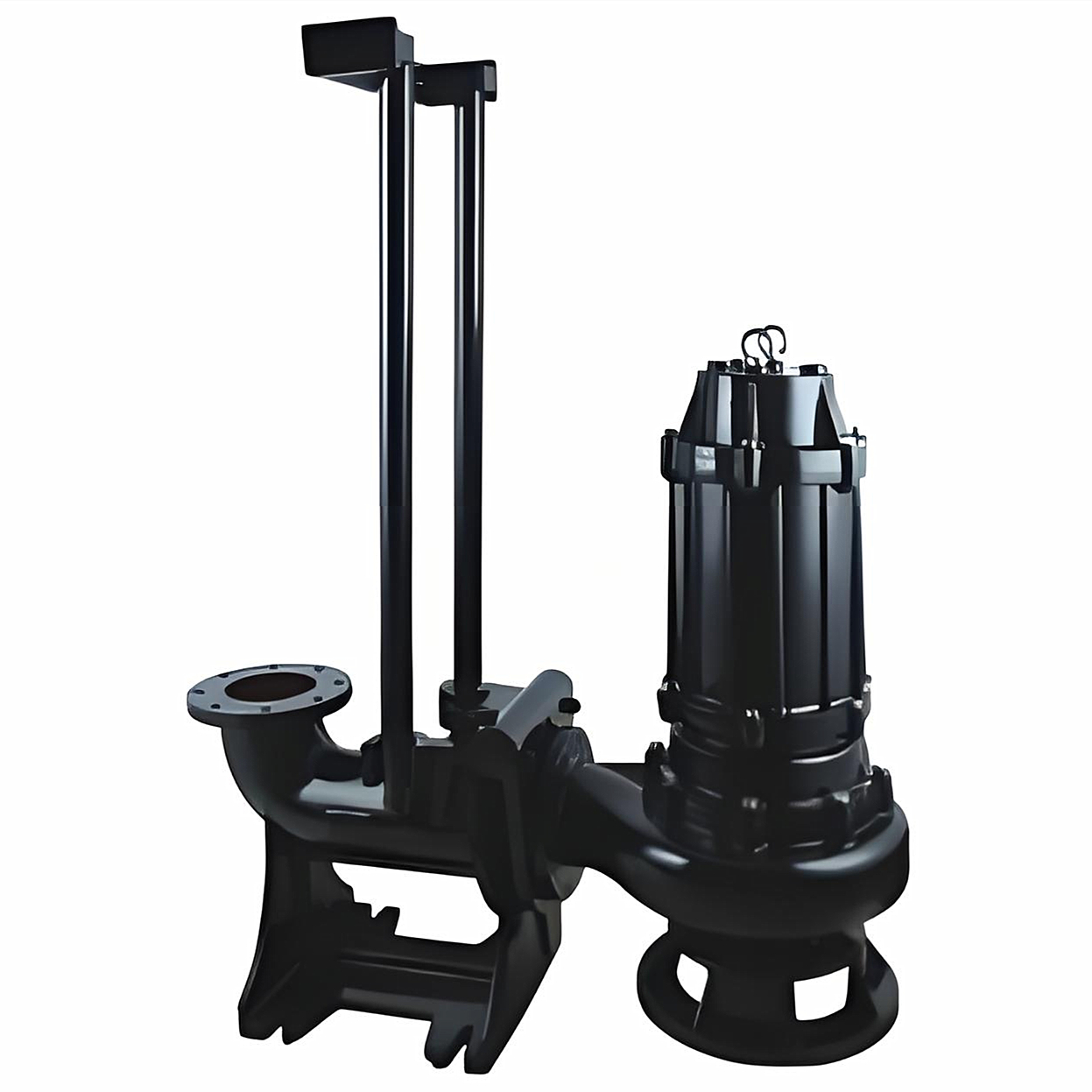

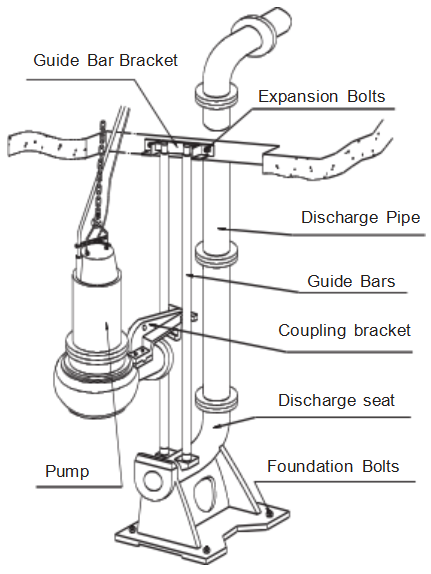

Automatic Coupling Installation(Z)
Fixed Installation(P)
Fix the supporting base on the foundation and connect the outlet pipe to operate.The base needs to be bolted.

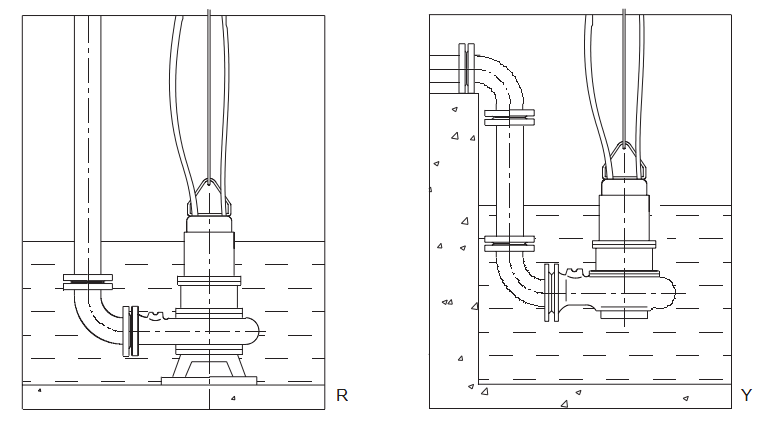

Mobile Installation (R, Y)
Support the pump by its base and connect the discharge hose or pipe to run the pump. This mode is mainly used for emergency use or repair or construction. If the pipeline for mobile pipe installation has enough stiffness, it is acceptable to hang the pump by pipeline for use.
Why Choose the WQ Series?
The WQ Submersible Sewage Pump stands out with its intelligent engineering, delivering unmatched efficiency, adaptability, and longevity. From municipal infrastructure to industrial systems, it ensures reliable performance in the most demanding conditions. Trust Shijiazhuang First Pump Factory to power your critical water management needs with innovation you can depend on.
