TL(R) Series FGD Pump – Advanced Solutions for Efficient Flue Gas Desulfurization

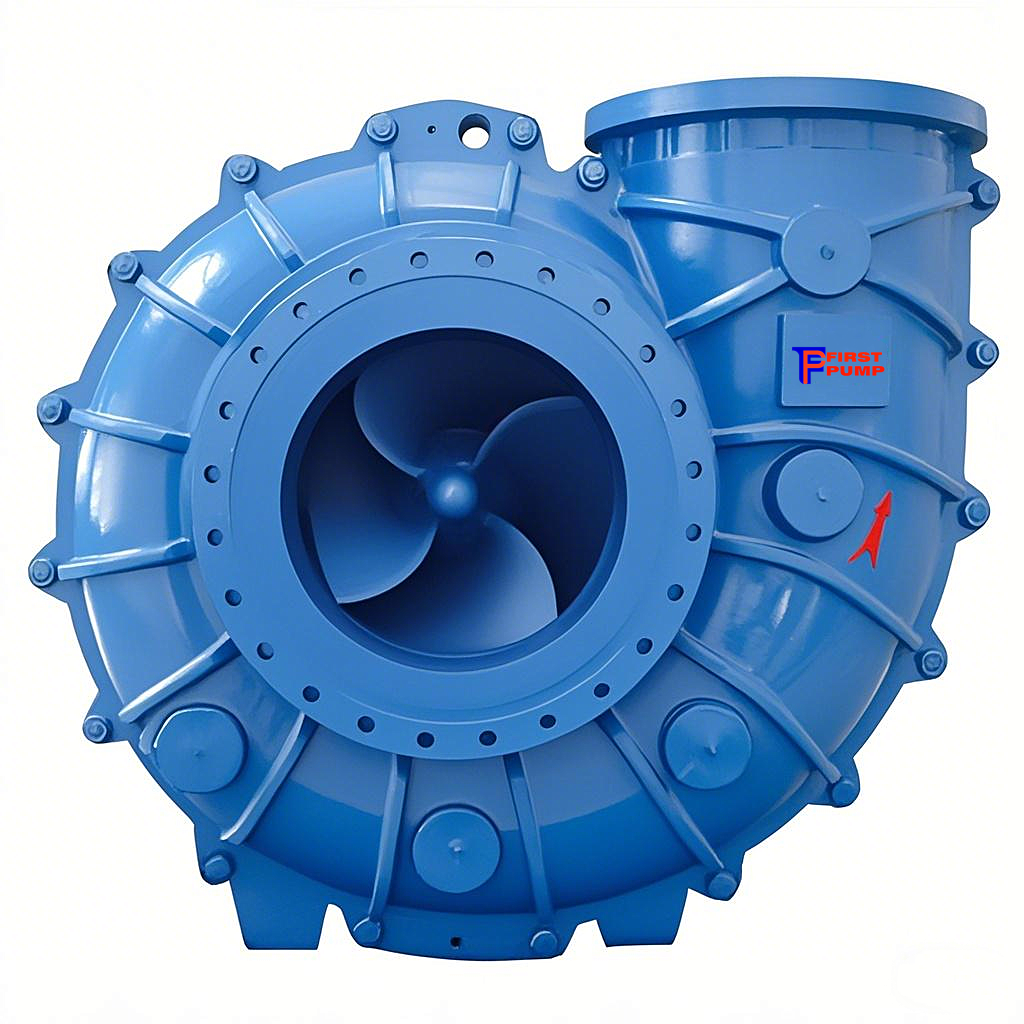

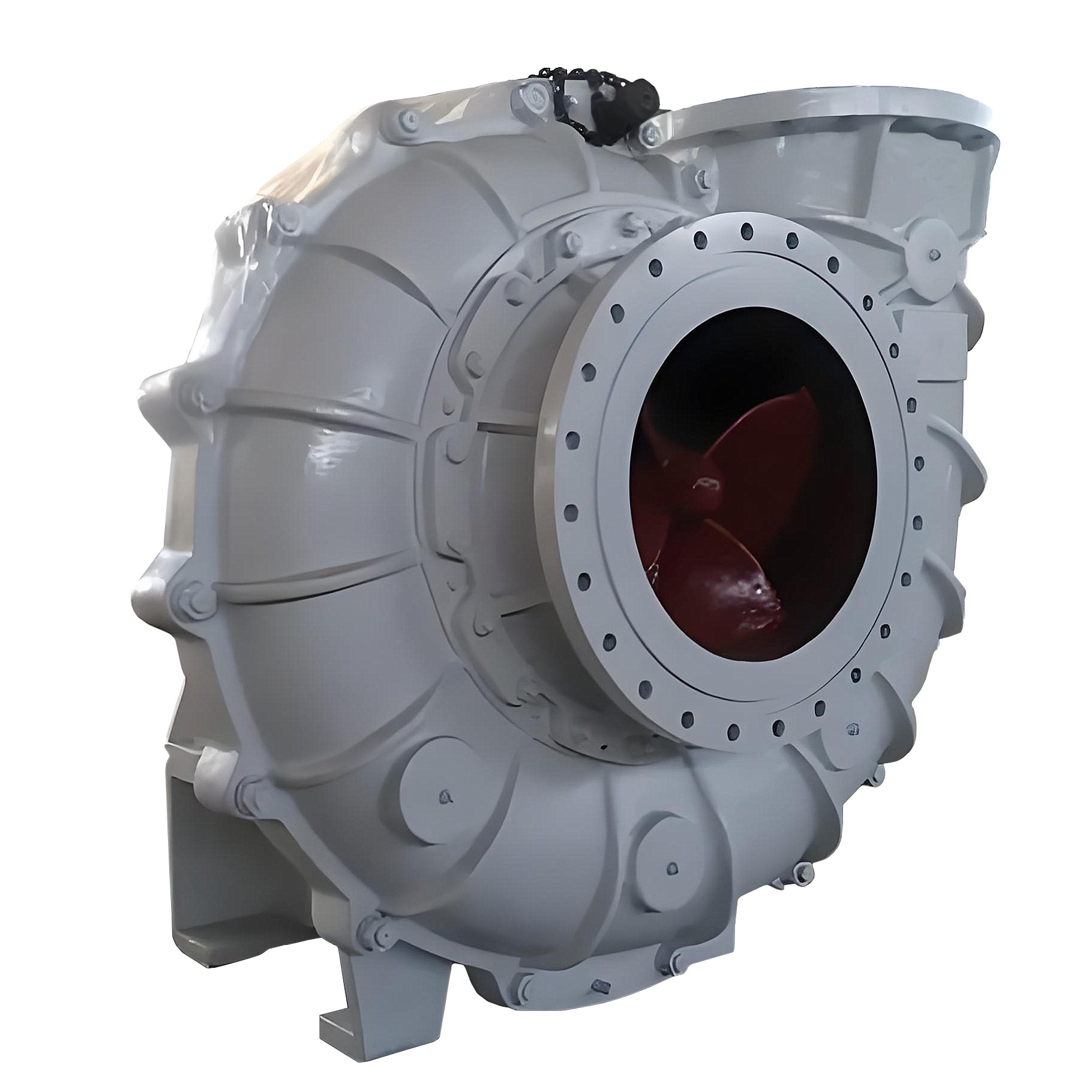

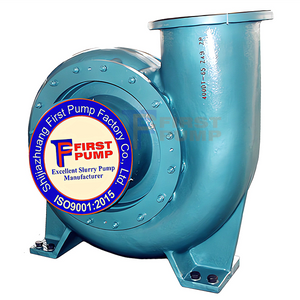

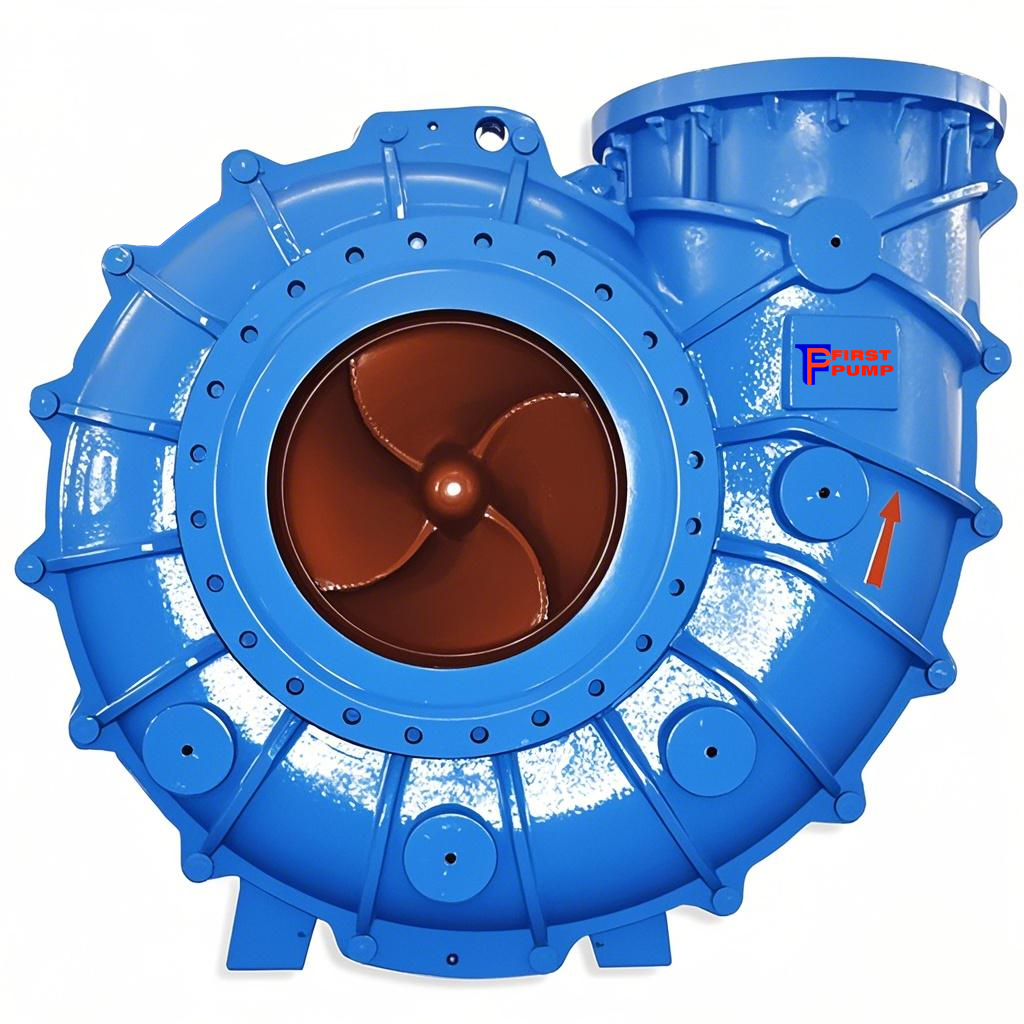

The TL(R) Series FGD Pump is a robust horizontal centrifugal pump engineered to tackle the demanding conditions of flue gas desulfurization (FGD) systems in power plants and industrial facilities. By efficiently circulating limestone slurry (CaCO₃) to neutralize sulfur dioxide (SO₂), this pump converts harmful emissions into reusable calcium sulfite (CaSO₃) or gypsum, supporting eco-friendly operations and compliance with global emission standards.
Key Features
Dual-Casing Durability
Features a double-casing design with replaceable alloy metal liners or rubber linings, offering exceptional resistance to abrasion and corrosion. Suitable for slurries with high chloride content, extreme pH variations, and temperatures up to 60°C.
Smart Maintenance & Reliability
Rear detachable structure allows quick access to impellers and mechanical seals without disassembling pipelines, minimizing downtime.
Cartridge mechanical seals (specifically designed for FGD systems) ensure leak-free operation and extended service life.
High-Efficiency Performance
Optimized hydraulics using CFD fluid simulation technology maximize energy efficiency and reduce power consumption.
Adjustable impeller positioning maintains peak performance even under fluctuating operational demands.
Robust Bearing System
Double-row taper roller bearings (pump end) and cylindrical roller bearings (drive end) are oil-lubricated for enhanced durability and prolonged service intervals.
Versatile Material Options
Choose between wear-resistant alloy metal or rubber-lined wetted parts to match specific slurry characteristics, from abrasive gypsum to corrosive chemical mixtures.
Applications
FGD Systems: Absorber tower recirculation, gypsum slurry transfer, and limestone feed in thermal power plants.
Chemical & Petrochemical: Handling sulfuric acid, alkaline solutions, and corrosive process liquids.
Mining & Metallurgy: Transporting hydrometallurgical slurries, electrolytes, and wastewater.
Water Treatment: Managing industrial wastewater, sewage, and high-purity water systems.
Steel & Coal Industries: Acid recovery, coal slurry transfer, and contaminated water handling.
Technical Specifications
Model | Capacity (m³/h) | Head (m) | Speed (r/min) | NPSH (m) | Inlet/Outlet Diameter (mm) |
350X-TL(R) | 1600 | 25 | 960 | 4.5 | 400 / 350 |
400X-TL(R) | 2500 | 25 | 725 | 5.0 | 450 / 400 |
500X-TL(R) | 3750 | 25 | 725 | 5.0 | 500 / 500 |
600X-TL(R) | 6300 | 25.5 | 620 | 5.5 | 700 / 600 |
700X-TL(R) | 6840 | 26 | 485 | 6.0 | 800 / 700 |
800X-TL(R) | 9360 | 31 | 485 | 7.0 | 900 / 800 |
900X-TL(R) | 15000 | 30 | 485 | 8.5 | 1000 / 900 |
1000X-TL(R) | 10440 | 15 | 485 | 7.0 | 1200 / 1000 |
Why Choose the TL(R) Series FGD Pump?
Proven Adaptability: Engineered for harsh FGD environments, from acidic slurries to high-solids gypsum.
Cost Savings: Reduced maintenance costs and energy-efficient operation lower total ownership expenses.
Environmental Compliance: Enables industries to meet strict SO₂ emission regulations while converting waste into reusable byproducts.
The TL(R) Series FGD Pump combines cutting-edge engineering with user-centric design, offering unmatched reliability in flue gas desulfurization and beyond. Whether for power generation, chemical processing, or wastewater management, this pump delivers performance that protects both your operations and the planet.
Explore our TL(R) Series and other specialized slurry pumps tailored for mining, metallurgy, and industrial applications. Let our experts help you optimize your FGD system—request a quote or technical consultation today.
Powering Cleaner Industries. Engineered for Excellence.
