Warman AH slurry pump types includes: 1.5/1B-AH, 2/1.5B-AH, 3/2C-AH, 4/3C-AH, 4/3D-AH, 6/4D-AH, 6/4E-AH, 8/6E-AH, 8/6F-AH, 8/6R-AH, 10/8F-AH, 10/8ST-AH, 12/10F-AH, 12/10ST-AH, 14/12F-AH, 14/12ST-AH, 16/14TU-AH, 20/18TU-AH
How to choose fairly suitable wet end parts for your Warman Type AH Slurry Pump
The materials used for the Warman Type AH Slurry Pump wet end parts play a crucial role in ensuring the pump's reliability and durability in handling abrasive and corrosive slurries. These wet end parts are designed to withstand the harsh conditions of slurry pumping and provide long-lasting performance.
One of the commonly used materials for the wet end parts of the Warman AH Slurry Pump is high-chrome white iron. This material offers excellent wear resistance, making it ideal for handling abrasive slurries with high solid content. The high-chrome white iron impeller, casing, throatbush, frame plate liner insert, and cover plate liner are all manufactured using this material. High-chrome white iron is known for its high hardness, which provides exceptional resistance to erosion and abrasion caused by solid particles present in the slurry. Its superior wear resistance allows the pump to maintain its efficiency and performance even in demanding applications.
In addition to high-chrome white iron, other materials such as natural rubber and synthetic elastomers are used for the liners and components that come in contact with the slurry. Natural rubber offers excellent corrosion resistance and is commonly used in applications where the slurry is mildly corrosive. Synthetic elastomers, on the other hand, provide better resistance to chemicals and can handle more corrosive slurries.
The choice of material for the wet end parts depends on the specific requirements of the slurry pumping application. Factors such as the type and concentration of solids, the corrosiveness of the slurry, and the operating conditions influence the selection of materials.The Warman Type AH Slurry Pump wet end parts are designed and manufactured using high-quality materials that are carefully selected to ensure optimal performance and longevity. These materials provide the necessary durability and wear resistance required to handle abrasive and corrosive slurries effectively.
In conclusion, the materials used for the Warman Type AH Slurry Pump wet end parts, such as high-chrome white iron, natural rubber, polyurethane, linatex and synthetic elastomers, are chosen to withstand the challenges of slurry pumping. These materials offer excellent wear resistance and corrosion resistance, ensuring the pump's reliability and longevity in handling abrasive and corrosive slurries.
Warman Type AH Slurry Pump showing Metal Lined Component

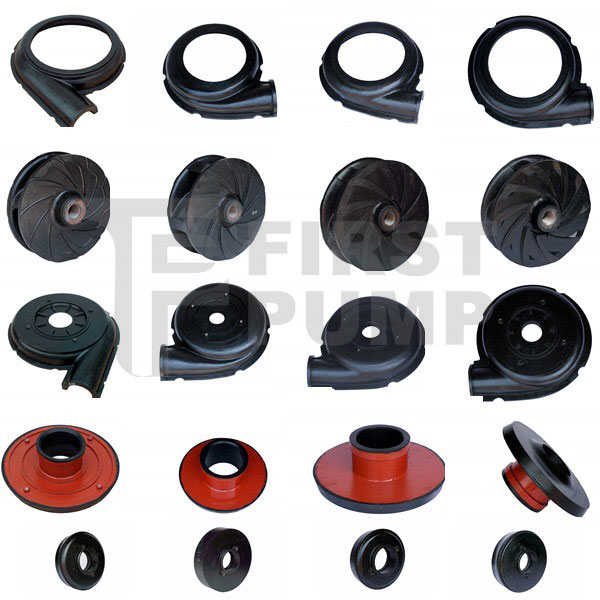

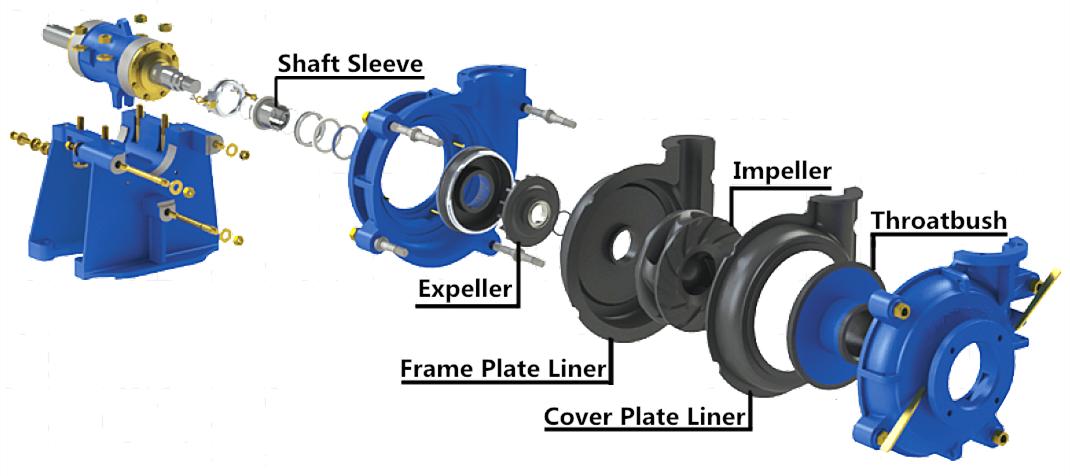

Warman Type AH Slurry Pump showing Elastomer Lined Component
