Mission Magnum
NOV Mission
67165456711A0

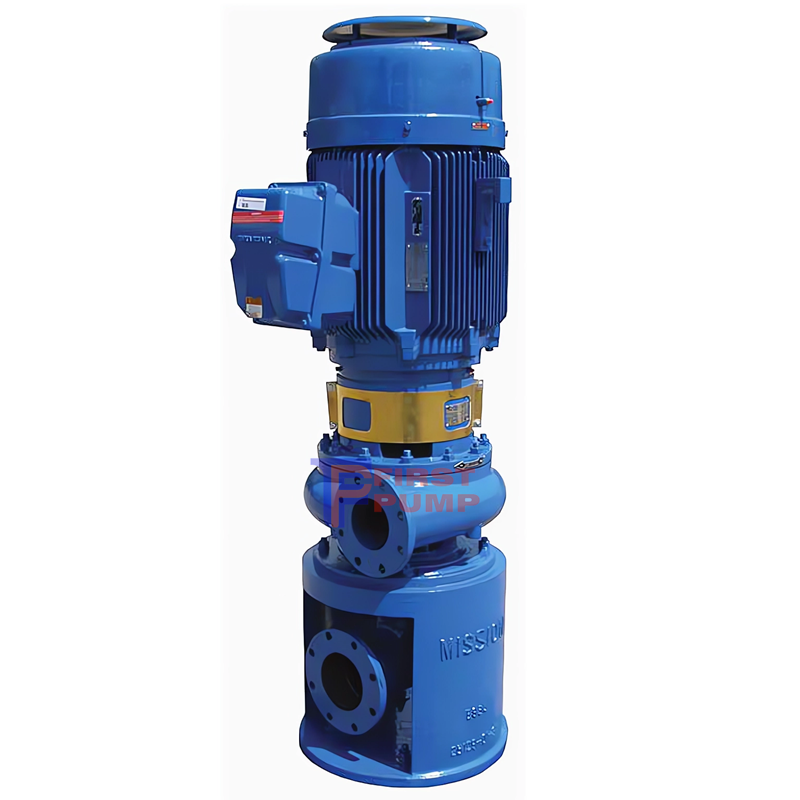

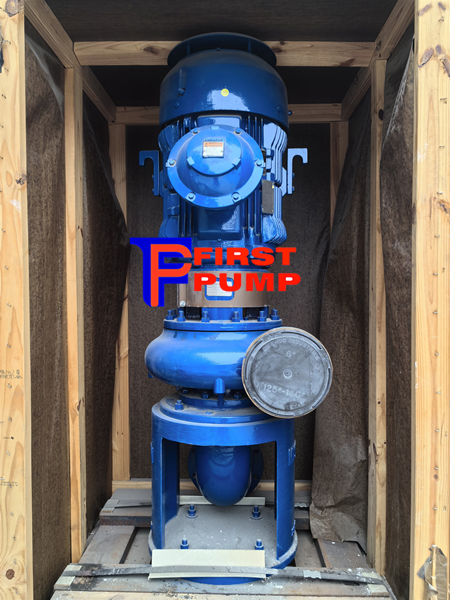

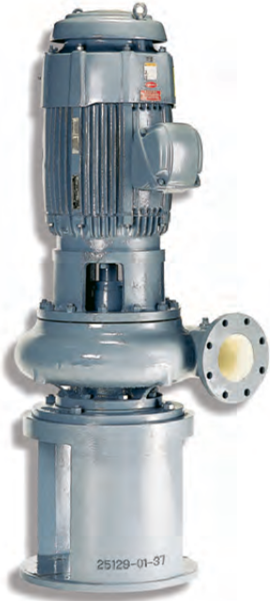

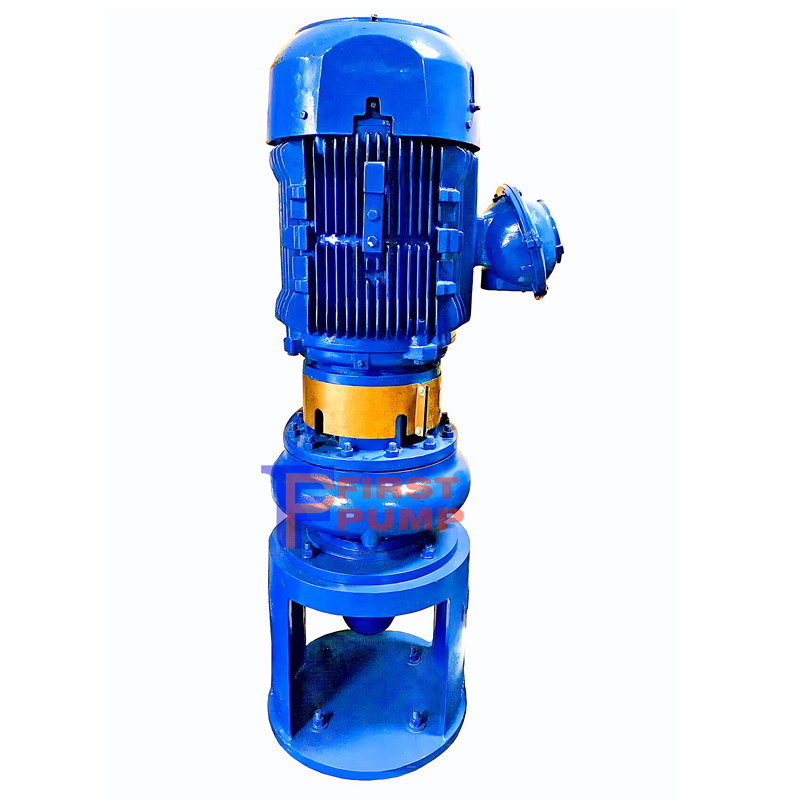

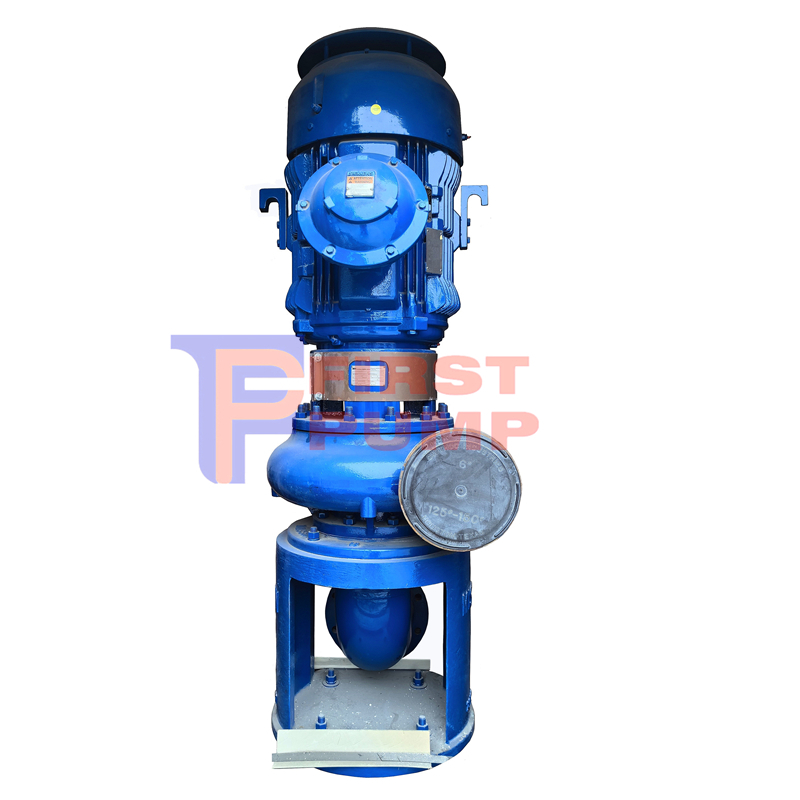

NOV Mission Magnum Vertical Centrifugal Pump
The NOV centrifugal pump line has proven to be the best centrifugal design for handling abrasive mud. This pump line offers a broad selection of innovative features for a variety of routine, demanding, abrasive, and corrosive applications. These pumps are designed for a wide range of flow rates, from a few gallons per minute to thousands of gallons per minute. Unitization services and options compliment the centrifugal pump line.
When floor space is at a premium and performance is critical, the VERTICAL MAGNUM provides the solution. The VERTICAL includes virtually all of the features of the MAGNUM I. In addition, the versatile and unique design of the VERTICAL can be utilized in diverse applications. In a wet pit environment, the VERTICAL requires no bearings or sealing device below the waterline. Use of a vortex impeller allows the passage of any solid that can enter the suction inlet and minimizes particle degradation. Concentric casing design minimizes shaft cyclical deflection and allows excellent slurry handling.
Common applications include:
Mud pumping - offshore/onshore
Solids Control
Dredging
Leveling of rig platform (ballast)
Typical Configurations:

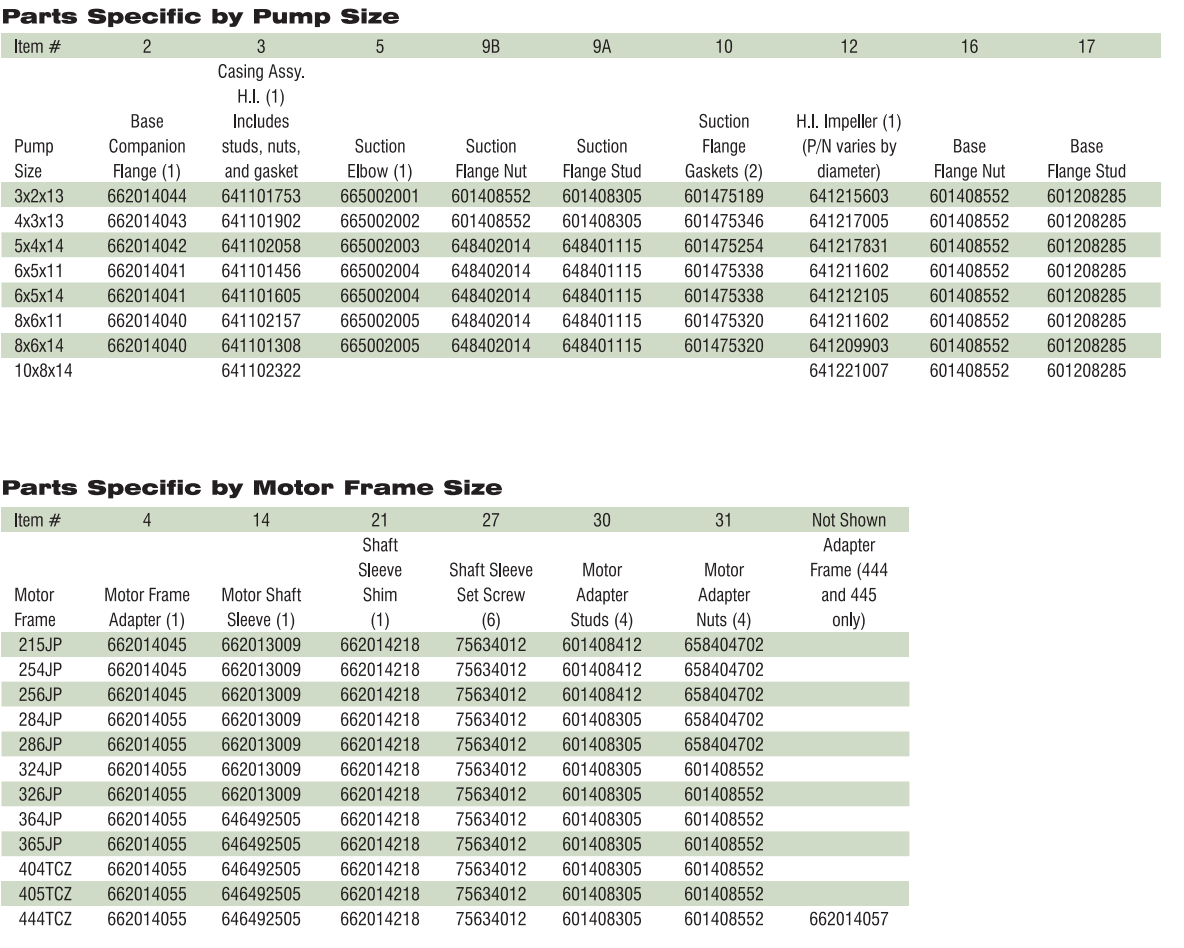

3x2x13 4x3x13 5x4x14
6x5x11 6x5x14 8x6x11
8x6x14 10x8x14 3x3x14
