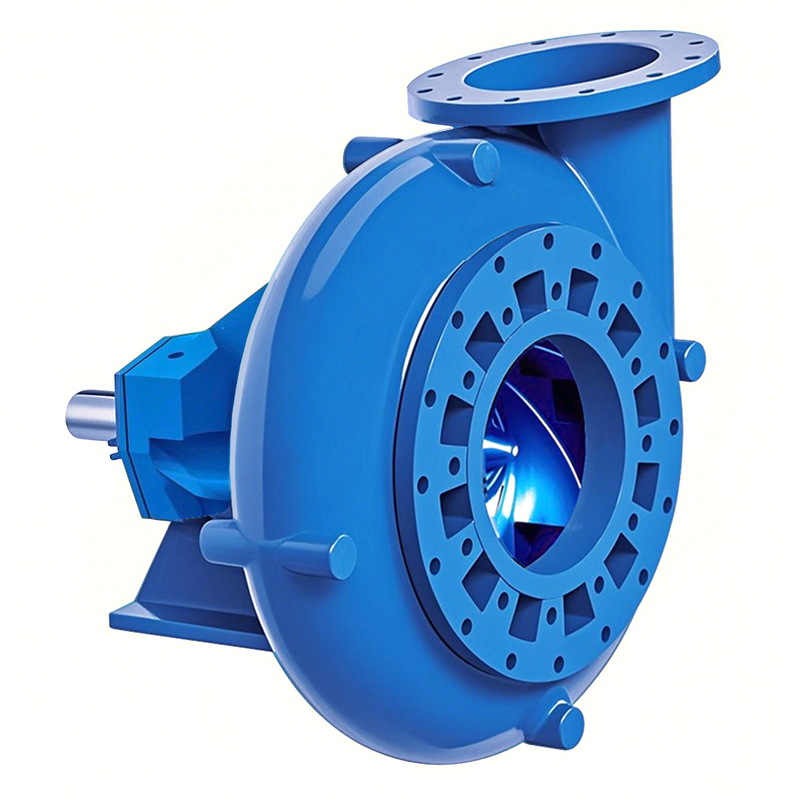

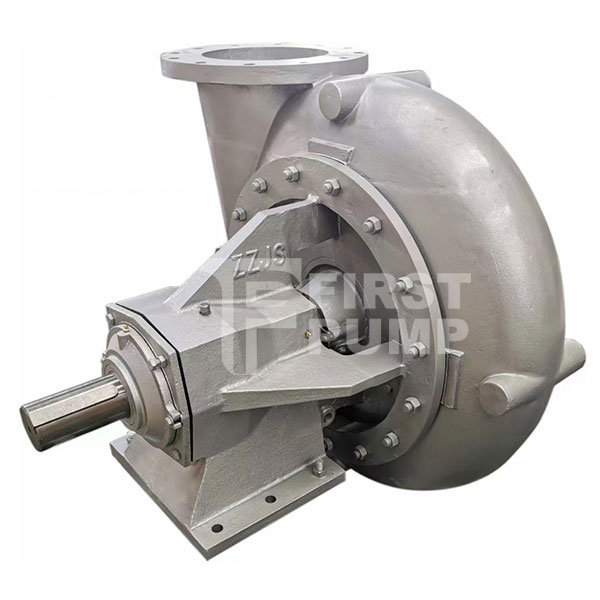

The Mission Magnum XP Series Pumps are heavy-duty centrifugal pumps engineered for the most demanding slurry-handling applications. Renowned for their rugged construction and exceptional durability, these pumps excel in transporting abrasive, corrosive, and high-volume slurries across industries such as oilfield services, mining, and industrial processing. Designed with advanced metallurgy and innovative engineering, the Magnum XP Series delivers unmatched reliability, extended service life, and minimal maintenance, even in the harshest operating conditions.
Key Features
Robust Construction:
Heavy-duty shafts (2.5" at seals, 3" at bearings) resist deflection, ensuring stable operation under extreme loads.
Concentric casing design minimizes turbulence and radial loads, prolonging component life.
High-chrome alloy (26–28% Cr) or hard iron materials with hardness up to 65 HRC for superior wear resistance.
Enhanced Seal & Bearing Life:
Low stuffing box pressure (reduced by 50%) and replaceable shaft sleeves maximize seal longevity.
Duplex angular contact bearings and labyrinth seals (optional) protect against contaminants.
Permanently lubricated, heavy-duty bearings double service life via radial load reduction.
Advanced Hydraulic Design:
Wide-tip impeller and full pipe diameter entrance ensure smooth flow, minimizing cavitation and erosion.
Dual-stage configuration (Magnum Ultimate™ XP) reduces wear rates by 75% and cavitation impact.
Compact & Versatile:
Small footprint ideal for mobile and stationary installations (e.g., frac blenders, dredging units).
Direct interchangeability with existing Magnum XP pumps, requiring no system modifications.
Customizable Sealing Solutions:
Tungsten-Tungsten, Tungsten-Silicone, or Silicon-Carbide mechanical seals for near-zero leakage.
Run-dry/double mechanical seal options available.

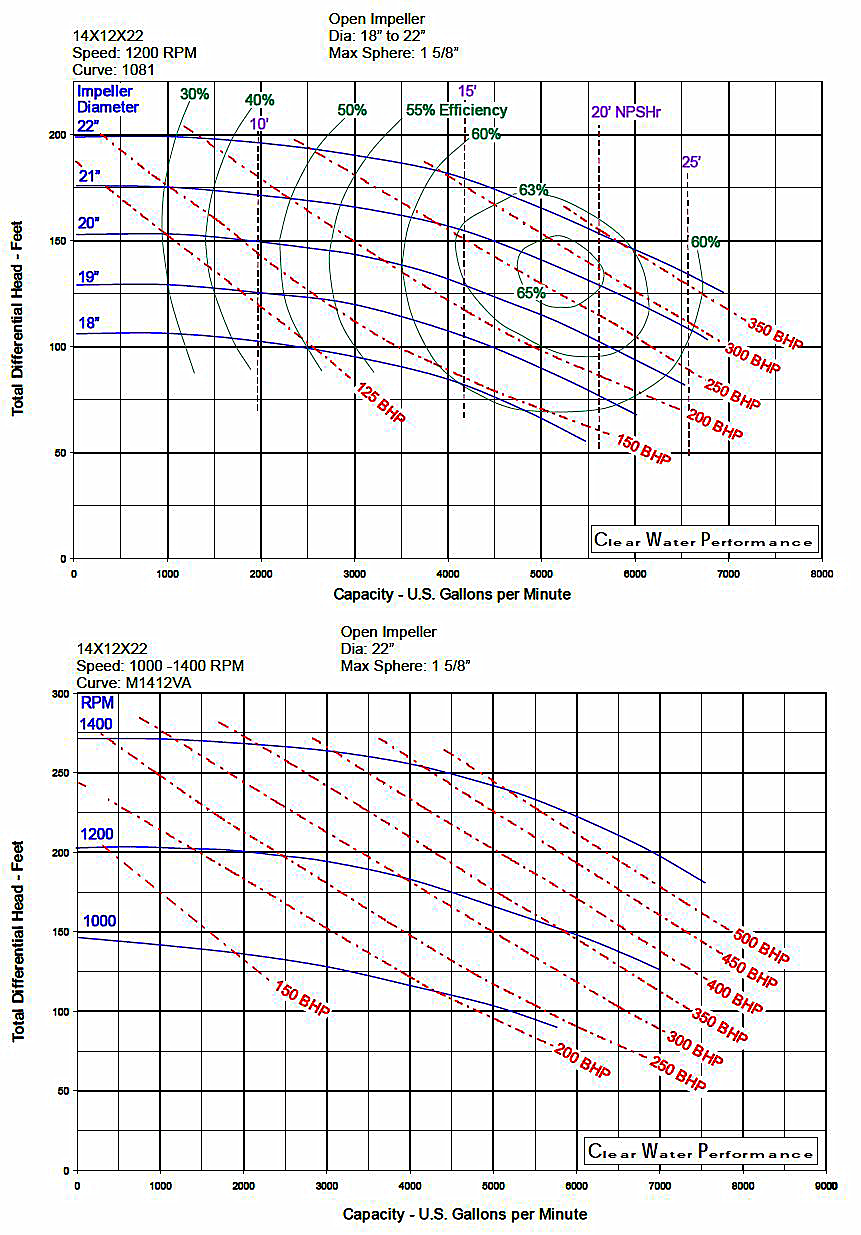

Technical Specifications
Parameter | Range |
Flow Rates： | 3,000–7,500 GPM |
Head： | 75–540 ft |
Power： | Compatible with diesel engines, electric motors, or belt drives |
Materials： | Hard Iron, High-Chrome Alloy |

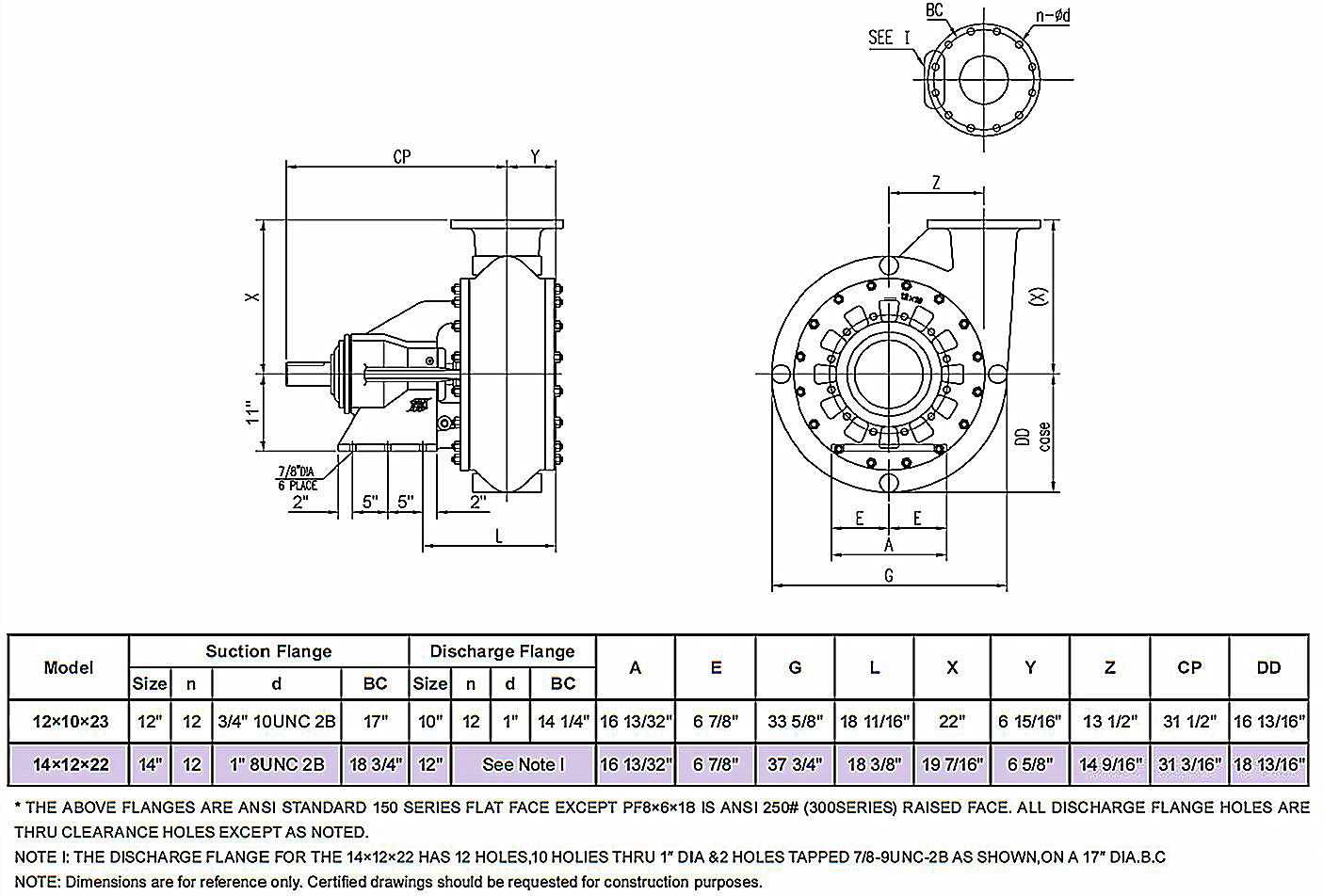

Sizes： | 8x6x18, 12x10x23, 14x12x22 |
Seal Options： | Mechanical, Labyrinth, Run-Dry |
Applications
Oil & Gas: Frac blending, well stimulation, supply boat mud transfer.
Industrial: Bottom/fly ash handling, dredge tailings, paper pulp, waste slurries.
Mining: Copper/bauxite slurries, lead/zinc tailings, slag, spent liquor.
Environmental: Sewage, fluid supercharging, nickel shot processing.
Design Innovations
Impeller & Casing:
Open-vane impeller design reduces turbulence and radial loads.
Replaceable wear plates and recessed casing gaskets cut maintenance costs.
Dual-Stage Technology (Magnum Ultimate™ XP):
Proprietary material blend extends pump life 5x over traditional models.
Operates at 900 RPM (vs. 1,400 RPM), slashing erosion and cavitation damage.

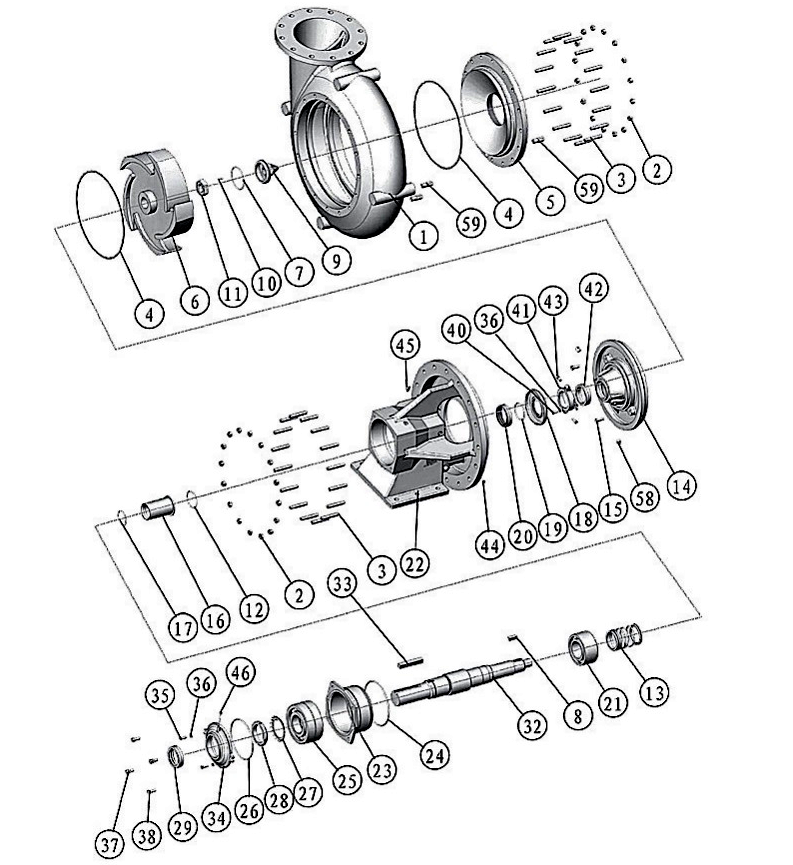

Critical Components:
Heavy-Duty Pedestal: Cast iron frame withstands high piping loads.
Shearing Ring Option: Converts standard pumps for specialized mud applications.
Heat-Treated Parts: Enhanced hardness and wear resistance for prolonged operation.
Models & Configurations
Popular Models:

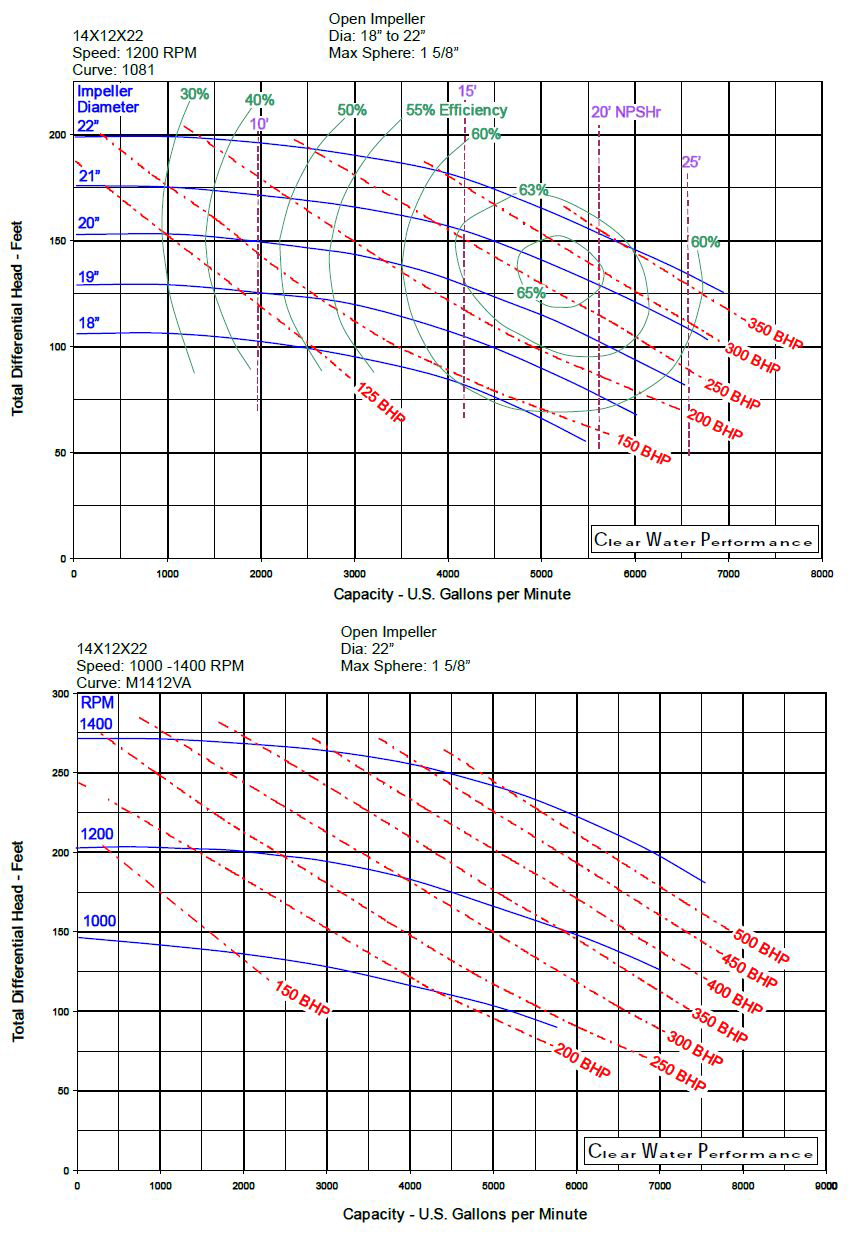

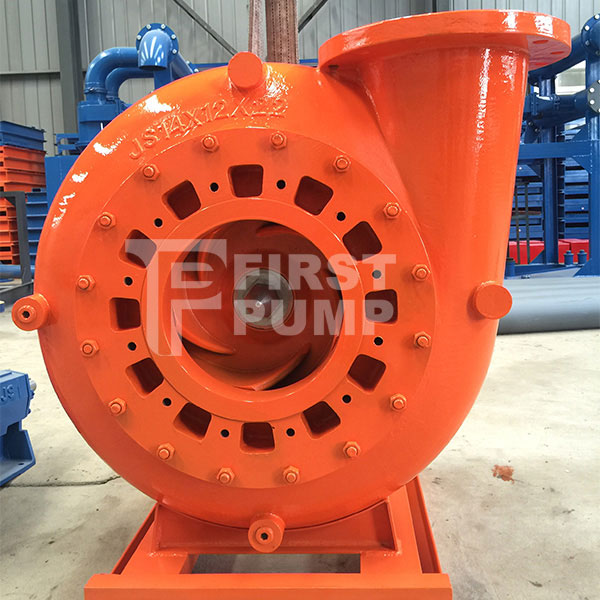

14x12x22: High-chrome alloy for fracturing/acidizing in oil drilling.

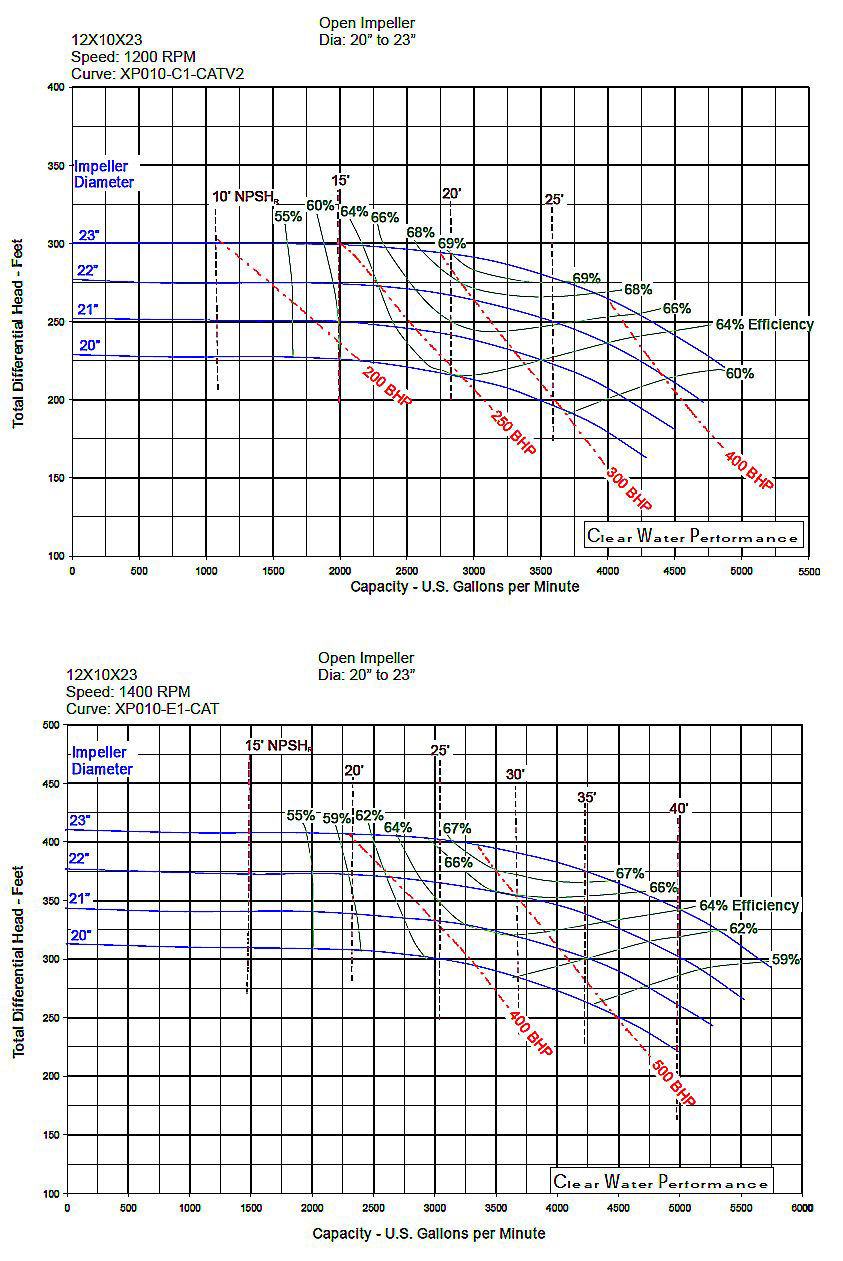

12x10x23: Compact design for mobile blender units.
8x6x18: Ideal for moderate flow industrial applications.
Material Options:
Hard Iron: Cost-effective for moderate abrasion.
High-Chrome Alloy: Superior performance in extreme abrasive/corrosive environments.
Why Choose the Magnum XP Series?
Proven Reliability: 30+ years as an industry standard in blender pump markets.
Reduced Ownership Costs: Longer component life, minimal downtime, and easy maintenance.
Adaptability: Compatible with diverse drives (electric, diesel, belt) and sealing systems.
Certified Quality: Pressure-tested casings and precision-engineered components.
The Mission Magnum XP Series redefines durability and efficiency in slurry pumping. Whether in the oilfield, mining, or industrial sectors, its advanced engineering ensures optimal performance under extreme conditions. With customizable configurations, cutting-edge materials, and a legacy of trust, the Magnum XP Series is the ultimate solution for high-volume, high-head slurry challenges.
