MCR

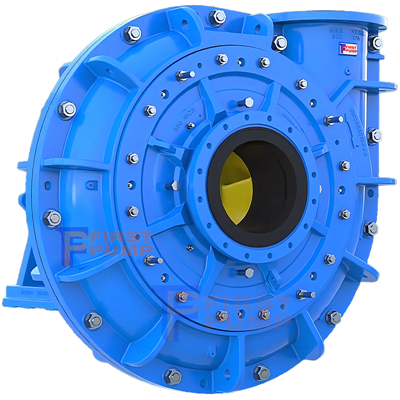

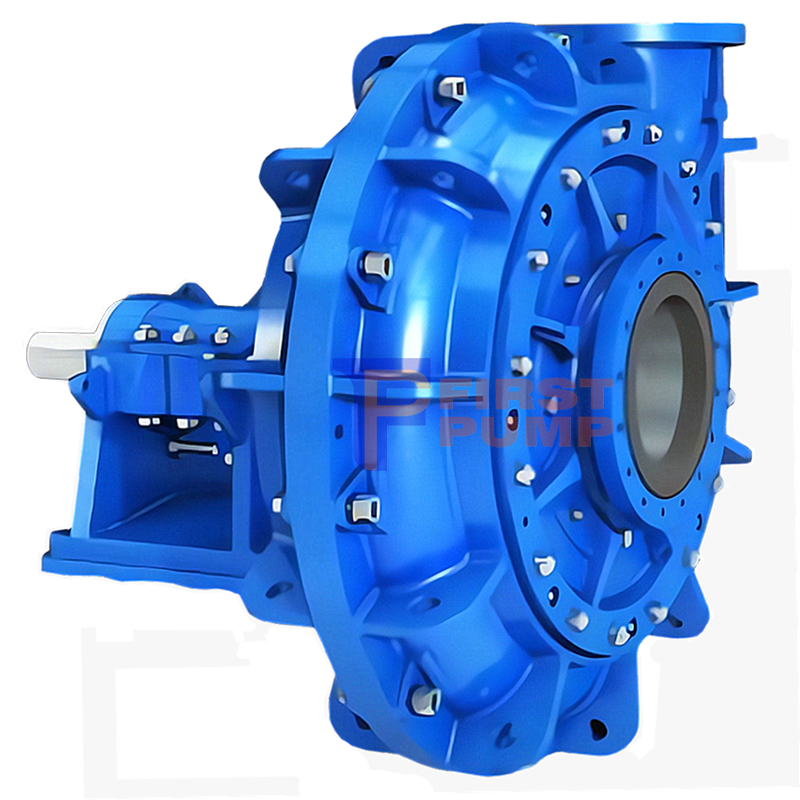

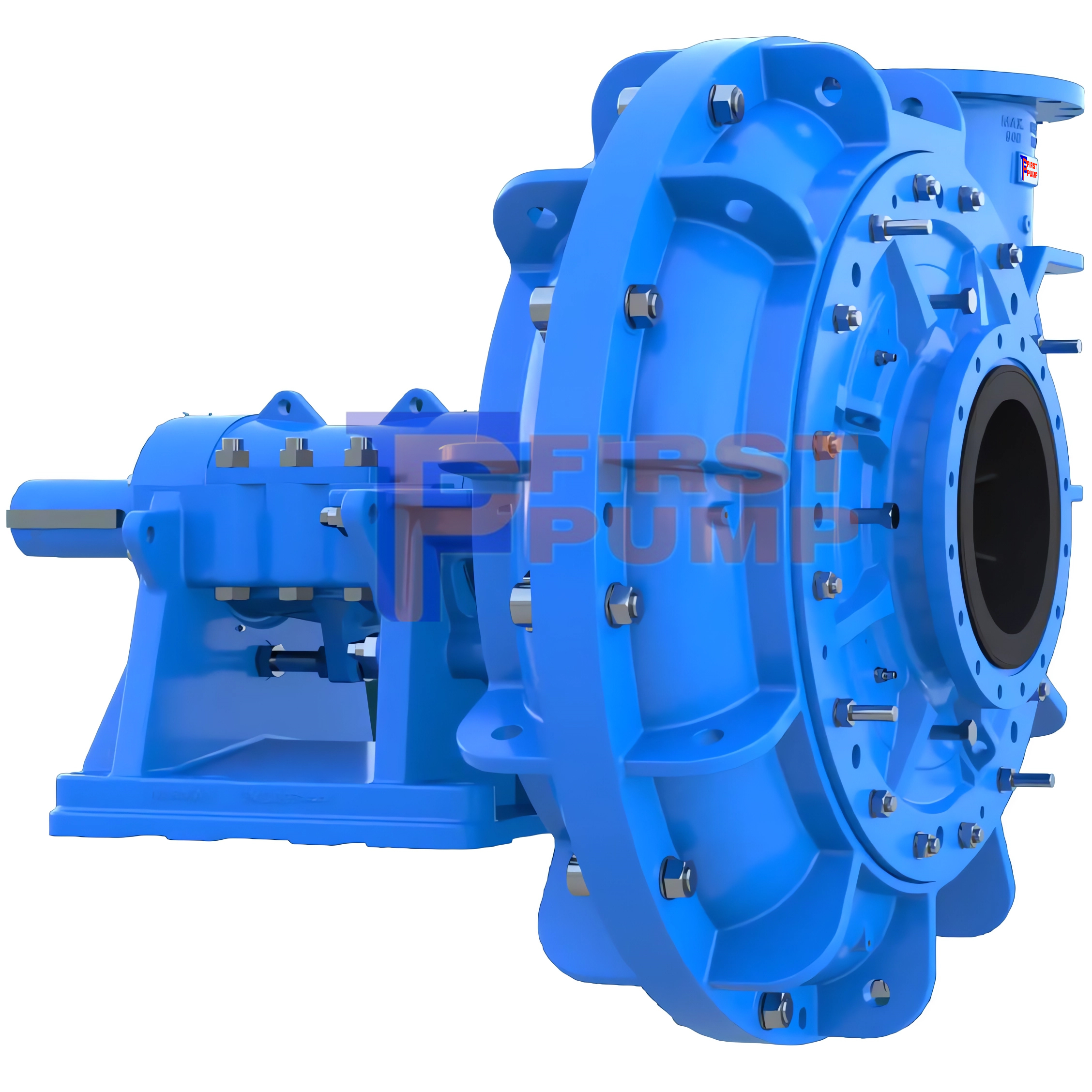

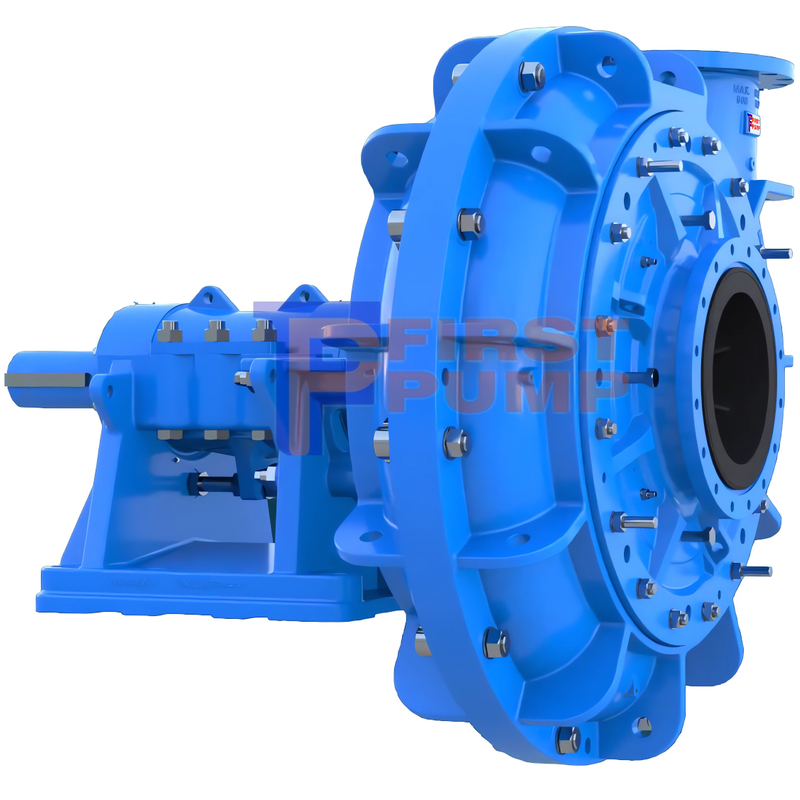

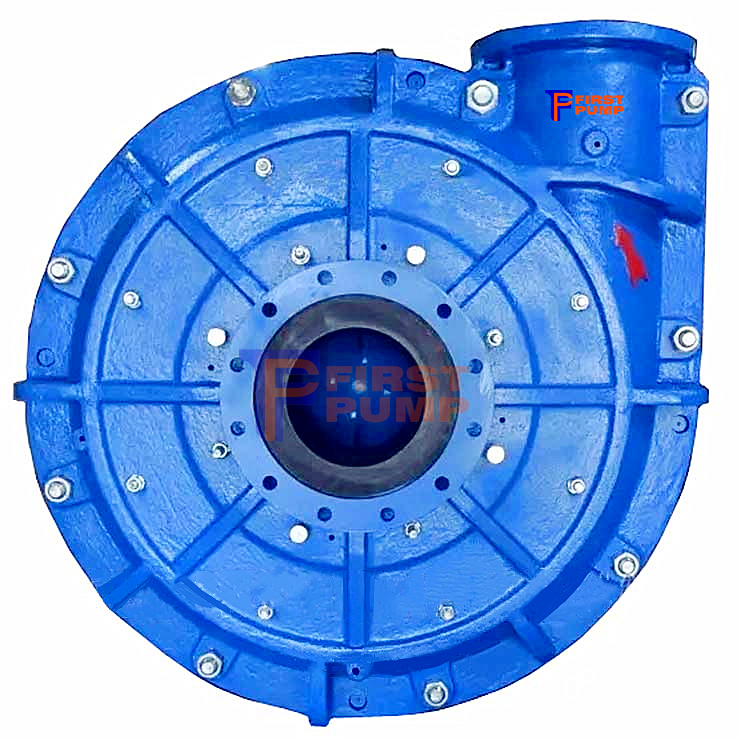

MCR Mill Circuit Duty Rubber Lined Slurry Pumps
MC-R Mill Circuit pump is the rubber-lined version of MC mill circuit pumps designed for the most wear duties and provide excellent wear life and reliability. They are often deemed an excellent choice for mill circuit (mill discharge and cyclone feed) applications because of their robust design, efficiency, and ability to easily handle abrasive slurries with large size particles size and high density.
The split ductile iron counter casing of the MC-R Mill Circuit pumps enhances structural integrity, enables high operating pressure capability, and ensures increased safety, allowing the thick, heavy-duty elastomer liners to be fully worn down before replacement is necessary.
MC-R Mill Duty Circuit Pump also consists of a metal impeller, metal or elastomer throatbush, and metal or elastomer frame plate liner insert.
Benefits of MC-R Mill Duty Circuit Pumps:
MC-R Mill Circuit pumps feature a high-resilience elastomer lining, capable of effortlessly handling a wide range of particulate sizes, from fine to coarse particles, as well as ball scats.
Easy Maintenance: A lightweight liner design with maintenance in mind, allowing for easier, safer and faster replacement of wear components compared with heavy metal liners. This minimizes downtime and keeps the operation running smoothly.
Rubber lining in the M-CR Mill Circuit pumps offers cost savings, as it is a more economical option compared to the higher cost of heavy metal liners.
Improved Wear Life: One of the primary advantages of the MC-R pump is its exceptional wear life, thanks to the latest in hard alloy and elastomer technology specifically chosen for their excellent resistance to abrasion and corrosion.
Versatility: MC-R pumps can handle a wide range of particle sizes, which makes them suitable for various milling processes and capable of adjusting to different slurry properties.
Customization: Shijiazhuang First Pump Factory offers various options for impellers, casings, and other components to suit specific applications and improve performance and wear life, meaning the pump can be tailored to meet the exact needs of the process.
In conclusion, MC-R Mill Circuit pumps are a wise choice for tough industrial mill circuits due to their design for heavy-duty performance, high efficiency, high reliability, longevity, and global support system. They provide cost-effective and reliable operation in the demanding environments found in the mining, mineral processing, and other heavy industries that require the movement of abrasive or corrosive slurries.
Specifications of MC-R Mill Circuit Duty Slurry Pumps:
Capacities: MC Mill Circuit Pumps capacirange from 150 to 20,000 cubic meters per hour (660 to 88,057 US gallons per minute).
Heads: They can achieve maximum heads of up to 55 meters (180 feet).
Sizes: The discharges are available in sizes ranging from 125mm (5 inch) to 760mm (30 inches).
Materials: elastomer liners inside ductile iron outer casing with metal impeller and metal or elastomer throatbush and frame plate liner insert.
