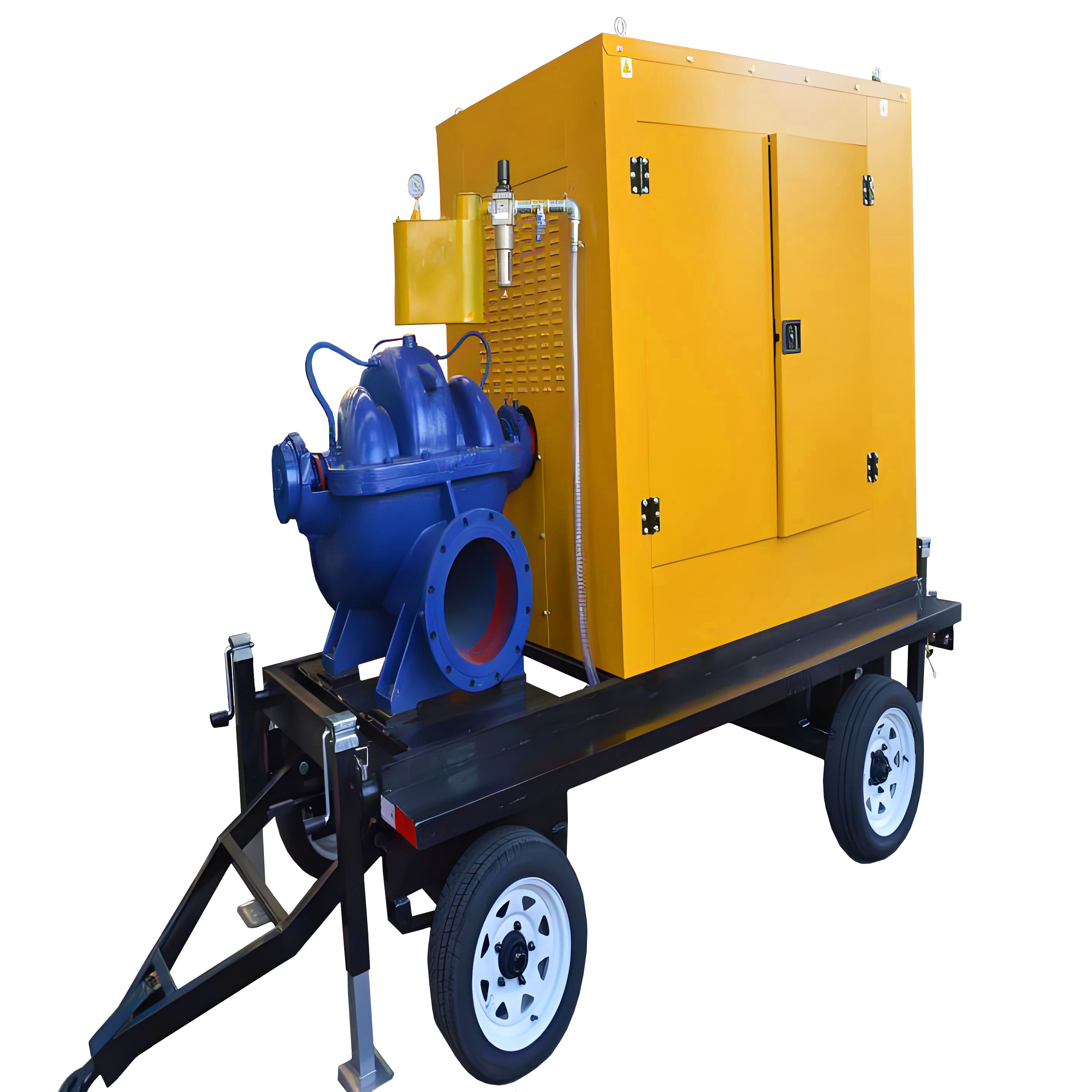

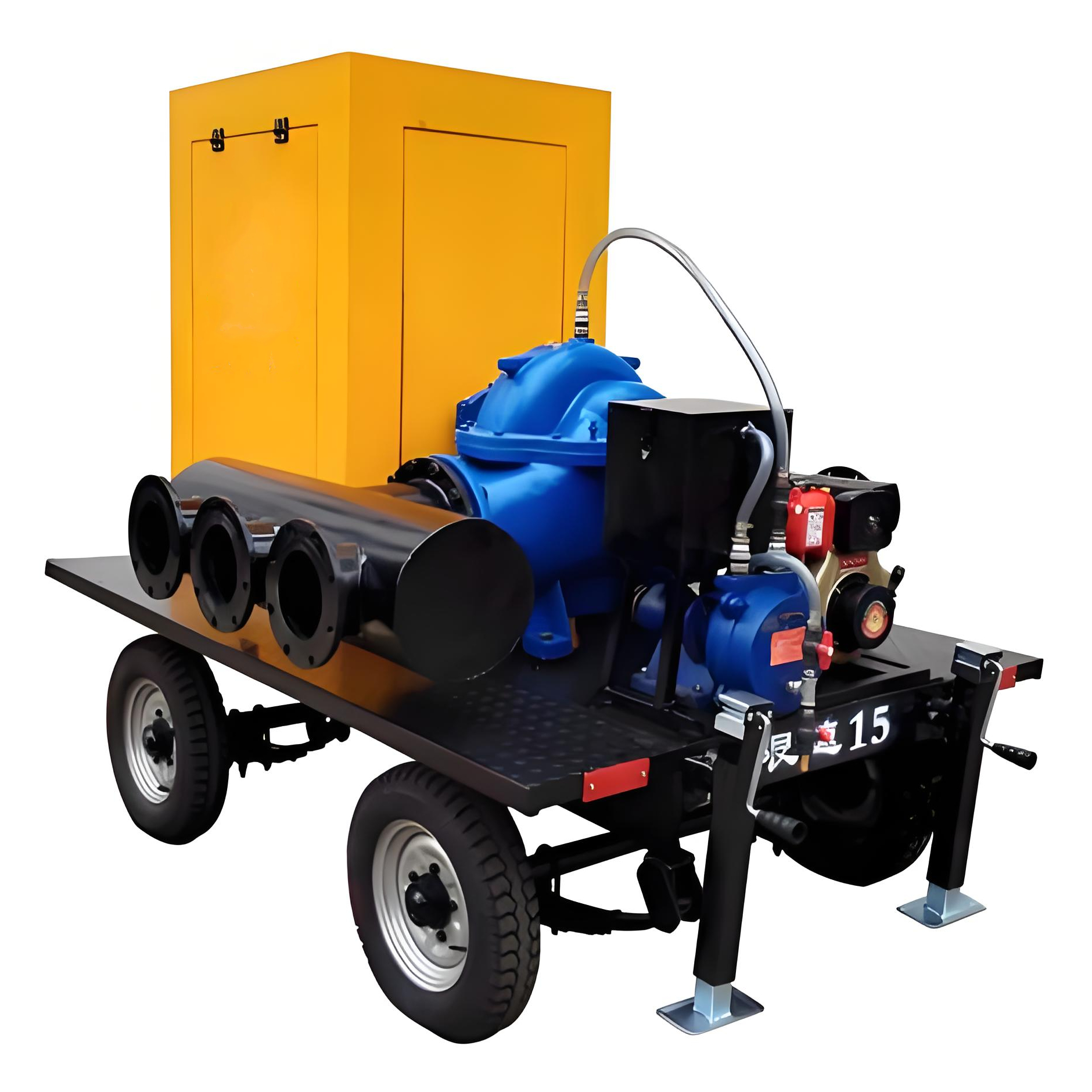

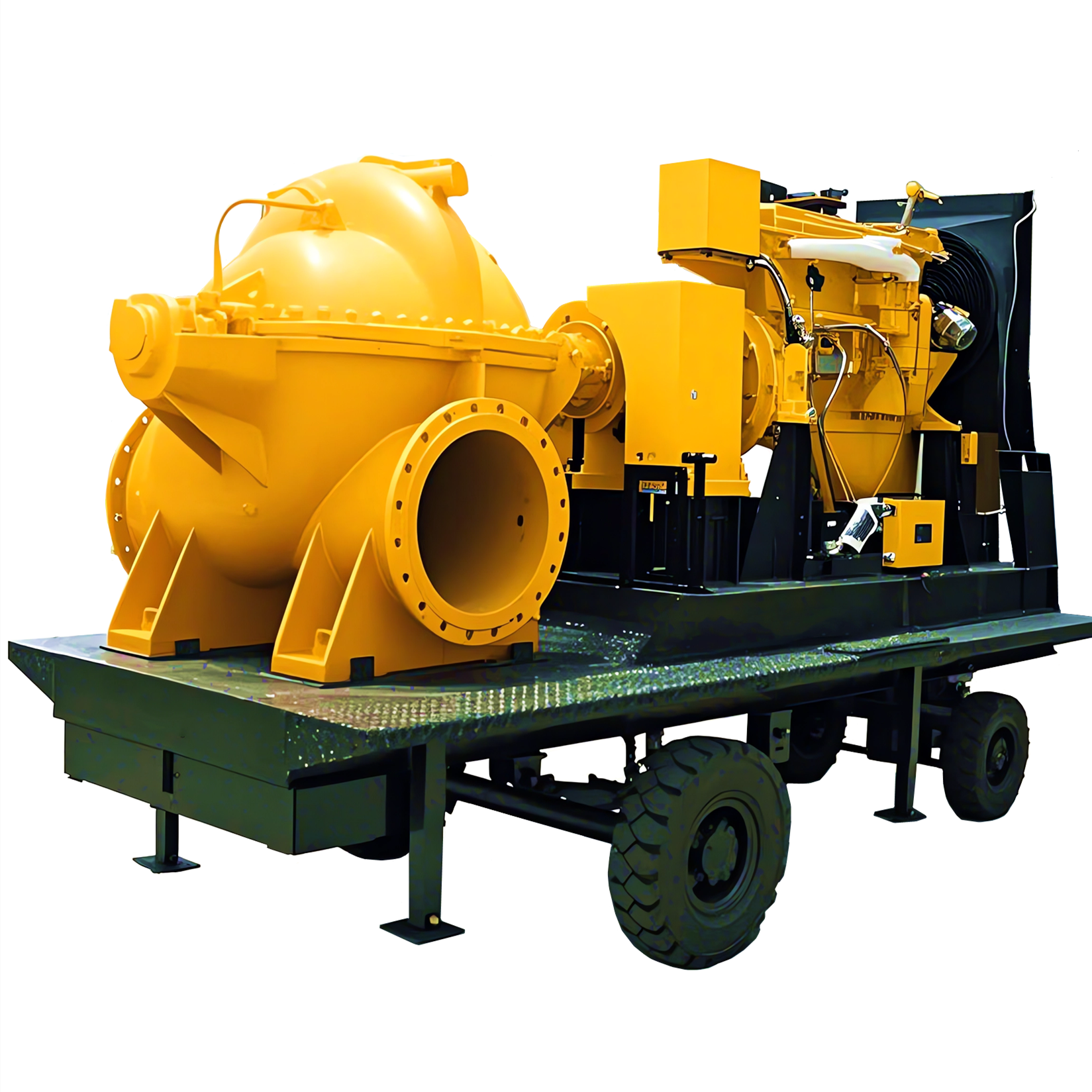

Trailer Mounted Engine-Driven Double Suction Pumps
The Trailer Mounted Engine-Driven Double Suction Pump is a high-capacity, mobile pumping solution engineered for extreme efficiency and reliability in demanding environments. Combining robust diesel or gas engine power with a symmetrical double-suction design, this pump delivers unparalleled flow rates (up to 21,800 m³/h) and heads (up to 140 m), making it ideal for large-scale agricultural, industrial, municipal, and emergency applications. Built for mobility and durability, it ensures rapid deployment and continuous operation in even the most challenging conditions.
Key Features
Double-Suction Symmetrical Design
Balances axial forces for ultra-smooth operation, minimizing vibration and extending bearing life.
Precision-cast QT500 impeller and pump body paired with a 40Cr alloy steel shaft for exceptional wear resistance and longevity.
Vacuum-Assisted Priming System
Integrated vacuum pump (driven by the main engine) enables quick priming and efficient air evacuation, even in large pipelines.
Heavy-Duty Mobility
Customizable 2- or 4-wheel galvanized steel trailer with all-terrain adaptability (20–60 km/h travel speed).
Reinforced enclosure with 2.0mm sandblasted steel, anti-corrosion coating, and 300°C high-temperature spray finish.
Intelligent Control & Safety
Real-time monitoring of engine parameters (water/oil temperature, pressure, RPM) via an LCD controller.
Emergency stop button, overload protection, and fault alerts (e.g., high oil temperature, low pressure).
Leak-Free Reliability
Mechanical or packing seals rated for 8,000+ hours of continuous operation.
Premium SKF/NSK bearings ensure low-noise performance and extended service life.
Technical Specifications
Flow Rate: 126–21,800 m³/h
Head: 10–140 m
Engine Options: Diesel/gasoline, tailored to power requirements.
Travel Speed: 20–60 km/h (with inertial braking system).
Materials:
* Pump Body/Impeller: QT500 cast iron.
* Shaft: 40Cr alloy steel.
* Enclosure: 2.0mm galvanized steel (anti-corrosion treated).
Installation: Flexible horizontal or vertical mounting.
Applications
Agriculture: Large-scale irrigation, drainage, and orchard management.
Construction: Dewatering, HVAC systems, and firefighting water supply.
Municipal & Water Conservancy: Flood control, sewage treatment, and public waterworks.
Industrial: Chemical processing, power plant cooling (ash removal, boiler feed), and petroleum refining.
Emergency Rescue: Disaster relief, flood drainage, and rapid water diversion.
Design Advantages
Axial Force Cancellation: Symmetrical impeller design eliminates thrust loads, enhancing stability.
Cavitation Resistance: Precision hydraulic profiling and smooth impeller surfaces reduce wear.
Easy Maintenance: Dual-side access doors for quick inspection and repairs.
Plug-and-Play Mobility: Pre-assembled trailer unit reduces setup time and labor costs.
Why Choose Trailer Mounted Engine-Driven Double Suction Pumps?
Unmatched Power: Handles the largest flow rates in its class with minimal energy loss.
Rugged Durability: Corrosion-resistant materials and premium components ensure 10+ years of service.
Safety First: Complies with ISO standards, featuring fail-safe controls and overload protection.
Versatility: Adapts to diverse fluids, including clean water, seawater, and mildly corrosive media.
The Trailer Mounted Engine-Driven Double Suction Pump redefines high-capacity fluid handling with its fusion of raw power, intelligent engineering, and rugged mobility. Whether tackling agricultural irrigation, industrial cooling, or emergency flood control, this pump delivers relentless performance where it matters most. Built to endure, designed to excel—it’s the ultimate solution for mission-critical pumping operations.
