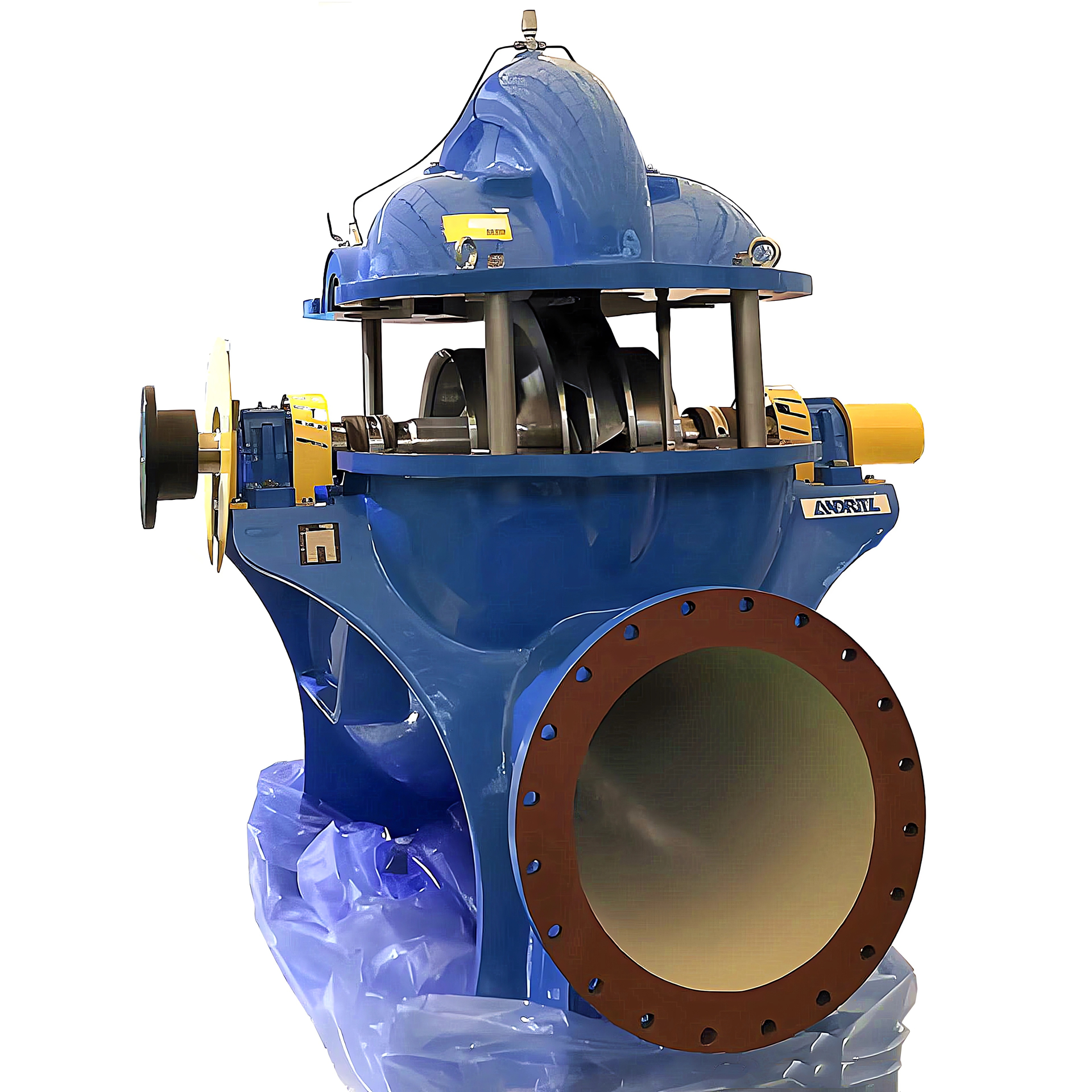

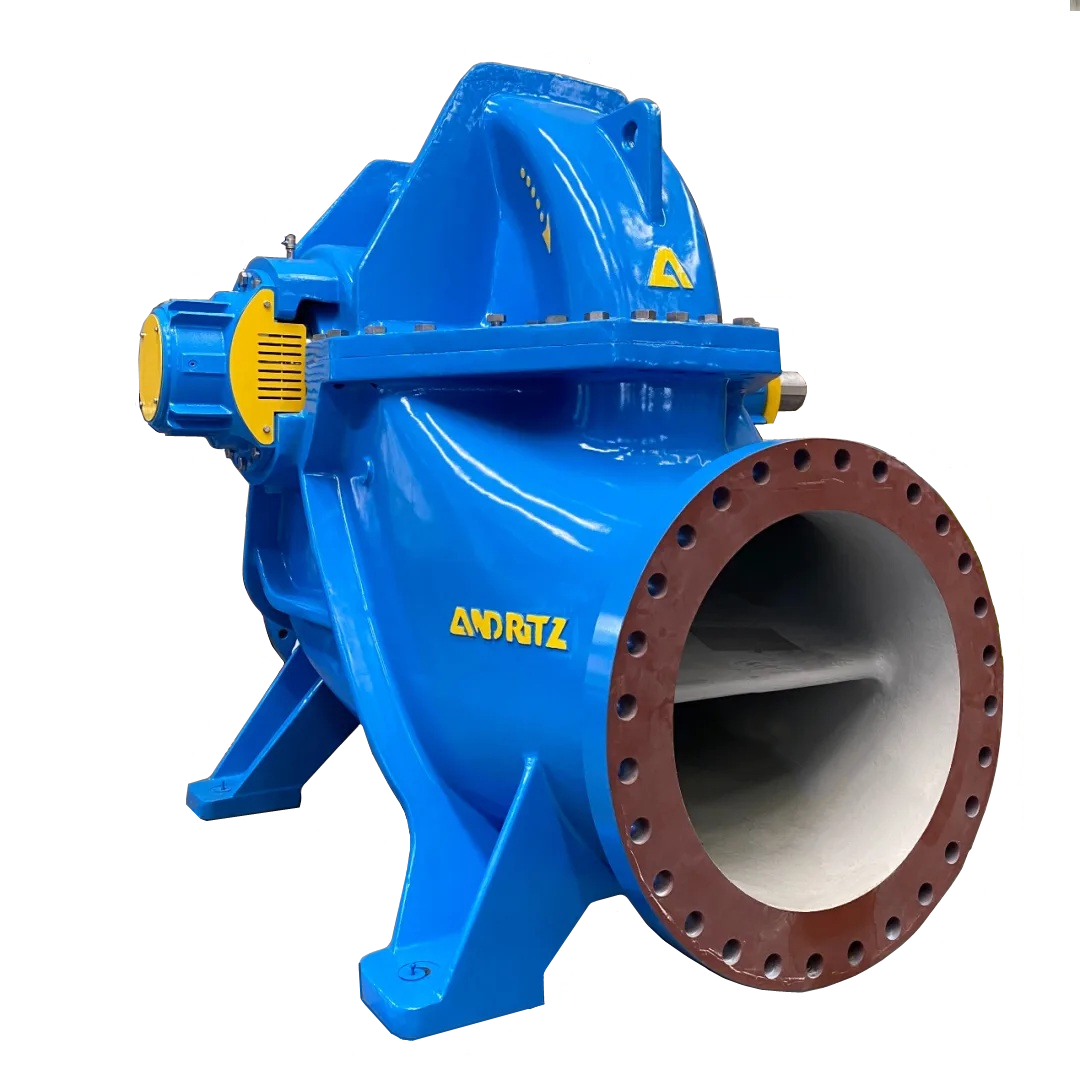

ANDRITZ Split Case Pumps from ASP Series: Powering Efficiency and Reliability Across Industries
The ANDRITZ ASP Series Split Case Pumps redefine performance with their innovative design, engineered to deliver exceptional efficiency, durability, and adaptability. Ideal for demanding applications such as headbox pumping in the pulp and paper industry, these pumps combine cutting-edge technology with user-centric features to meet the highest standards of modern industrial fluid handling.
Key Features & Benefits
Unmatched Efficiency: Achieve energy savings with efficiencies exceeding 91%, supported by a double-flow radial impeller that optimizes hydraulic performance and ensures low pulsation.
Axial Split Case Design: Enables rapid, hassle-free maintenance without disassembling pipelines or moving the motor, minimizing downtime.
Installation Flexibility: Configure pumps horizontally or vertically, with motor placement options (left/right) for seamless integration into diverse plant layouts.
Robust Construction: Engineered for longevity with materials like stainless steel (1.4474 impeller/wear rings), ductile iron casings (EN-GJS-500-7), and a duplex stainless steel shaft (1.4462) to withstand abrasive and corrosive environments.
Superior NPSH Performance: Ensures reliable operation even under challenging suction conditions.
Technical Excellence
Flow Rate: Up to 40,000 m³/h
Head: Up to 250 m
Pressure: Up to 25 bar
Temperature Range: -20°C to +80°C
Power Capacity: Up to 7,000 kW
Consistency Handling (Pulp & Paper): Up to 2%
Versatile Applications
The ASP Series excels across multiple sectors:
Water & Utilities: Water treatment, irrigation, desalination, and flood control systems.
Energy Sector: Cooling and circulation in power plants, district heating, and industrial cooling networks.
Pulp & Paper: Critical roles as headbox pumps and cleaner pumps, efficiently handling stock suspensions with minimal pulsation
Durable Material Combinations
Impeller/Wear Rings: Stainless steel 1.4474 for wear resistance.
Casing Options: EN-GJL-250, EN-GJS-400-18, 1.4408, or EN-GJS-500-7 for corrosion and pressure resilience.
Shaft: Duplex stainless steel 1.4462 ensures high strength and fatigue resistance.
Shaft Seal Housing: EN-GJL-250 or corrosion-resistant 1.4408/1.4474.
Smart & Future-Ready
Equipped for Industrial Internet of Things (IIoT) integration, the ASP Series supports predictive maintenance and real-time monitoring, enhancing operational efficiency and reducing lifecycle costs.
Why ANDRITZ ASP Series?
Energy Savings: Over 90% efficiency reduces operational expenses.
Low Maintenance: Quick-access design cuts downtime.
Adaptability: Flexible installation and material options for diverse environments.
Proven Reliability: Trusted in critical roles like headbox pumping, where precision and uptime are paramount.
Elevate your operations with the ANDRITZ ASP Series—where advanced engineering meets industrial resilience. For tailored solutions or detailed specifications, explore our brochures or contact our team today.
ANDRITZ ASP Series: Engineered for Excellence, Built for Tomorrow.
